806 radar level transmitter is designed according to the intrinsically safe Ex iaIIC T6 explosion-proof rating. The outer casing is made of aluminum and is connected to the earth. Strictly comply with the installation regulations of the national explosion-proof
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Shelok
-
Model Number:
-
806
-
Product name:
-
Liquid Level Measurement 26GHZ radar level meter
-
Application:
-
liquid, solid
-
range:
-
0-70m
-
Process connection:
-
thread, flange
-
Resolution:
-
5mm
-
Material:
-
ss304, ss316
-
Output signal:
-
4-20mA, hart
-
Power supply:
-
24VDC
-
Display:
-
LCD Diplay
-
Operating temperature:
-
-40~400C
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
12 months
-
Place of Origin:
-
China
-
Brand Name:
-
Shelok
-
Model Number:
-
806
-
Product name:
-
Liquid Level Measurement 26GHZ radar level meter
-
Application:
-
liquid, solid
-
range:
-
0-70m
-
Process connection:
-
thread, flange
-
Resolution:
-
5mm
-
Material:
-
ss304, ss316
-
Output signal:
-
4-20mA, hart
-
Power supply:
-
24VDC
-
Display:
-
LCD Diplay
-
Operating temperature:
-
-40~400C
Product Description

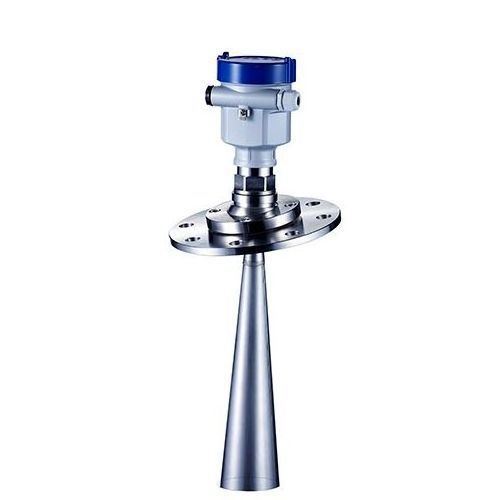

Tank Radar Level Gauge Transmitter for Liquid Level Measurement 26GHZ radar level meter
806 radar level transmitter antenna emits a very narrow microwave signal that works well over the industrial frequency band. The emission power is extremely low, and it is harmless to the human body and the environment.
806 radar level transmitter is designed according to the intrinsically safe Ex iaIIC T6 explosion-proof rating. The outer casing is made of aluminum and is connected to the earth. Strictly comply with the installation regulations of the national explosion-proof danger zone.
Details Images
Product Paramenters
|
Model
|
NYRD805
|
NYRD807
|
NYRD808
|
NYRD809
|
NYRD810
|
|
Application
|
all kinds of corrosive liquid
|
Hygienic liquid storage,Corrosive container
|
Solid material, Strong dust
|
Solid particles, Powder
|
Solid material, Strong dust
|
|
Measuring Range
|
10m
|
20m
|
70m
|
35m
|
70m
|
|
Process Connection
|
Thread, Flange
|
Thread, Flange
|
Thread, Flange
|
Thread, Flange
|
Thread, Flange
|
|
Medium Temperature
|
-40°C ~ 130°C
|
-40°C ~ 150°C
|
-40°C ~ 400°C
|
-40°C ~ 130°C
|
-40°C ~ 130°C
|
|
Process Pressure
|
-0.1~0.3MPa
|
-0.1~0.1MPa
|
-0.1~0.1MPa
|
-0.1~4.0MPa
|
-0.1~4.0MPa
|
|
Accuracy
|
±5mm
|
±15mm
|
±15mm
|
±10mm
|
±3mm
|
Product Feature
Working Condition
Tank Radar Level Gauge Transmitter for Liquid Level Measurement 26GHZ radar level meter
Through different components, such as: air-cooling device, water-cooling device, purging device, the temperature can be extended to (-40-400) degrees, using different pressure sealing components, the pressure can be extended to 4000KPa.
