Quick Details
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HARSLE
-
Year:
-
2023
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1050*650*2100
-
Weight (T):
-
1.2 T
-
Model Number:
-
Y41
-
Motor Power (kw):
-
7.5 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Nominal Force (kN):
-
1000 kN
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
700
-
Ejector Force (kN):
-
160
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HARSLE
-
Year:
-
2023
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1050*650*2100
-
Weight (T):
-
1.2 T
-
Model Number:
-
Y41
-
Motor Power (kw):
-
7.5 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Nominal Force (kN):
-
1000 kN
-
Certification:
-
CE
Products Description
HARSLE

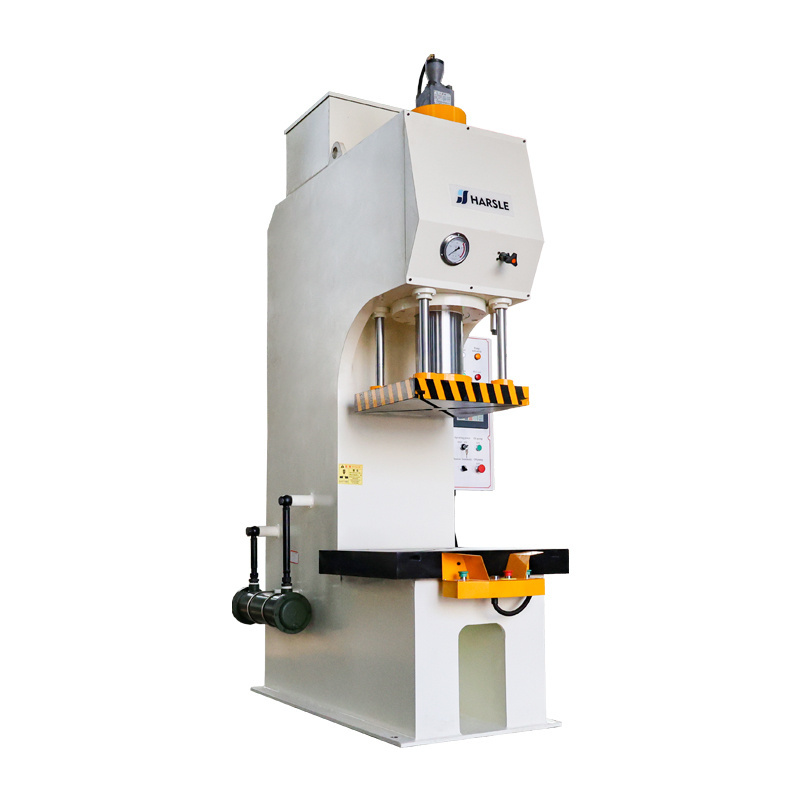

Y41 Single Column Hydraulic Press
The Y41 single column hydraulic press is a "C" type single column construction with an all steel welded body. The hydraulic system is arranged in the body and the lower part of the working table is equipped with a hydraulic pad, the working pressure stroke can be adjusted within the specified range. The electrical control system is based on a "PC" programmable controller. The machine is controlled centrally by push-buttons and can be operated in an adjustable, manual or semi-automatic manner. This series of hydraulic presses is suitable for drawing, punching, bending, flanging, correction, pressing, hot and cold extrusion of metal materials, and also for pressing and forming of powder products and plastic products.
Product Details
Cylinder
Polished and high rigidity treatment.
Main Motor
Siemens brand from Germany.
Pressure Gauge
Check and adjust system hydraulic pressure.
Electric Parts
Schneider brand from France.
Control Panel
Omron brand from Japan.
Oil Level Gauge
Check the volume of hydraulic oil and the temperature.
IOT Module(Optional)
Checking the machine real-time status on the phone, computer or tablet.
Specifications
|
Model
|
|
63T
|
100T
|
160T
|
200T
|
250T
|
315T
|
400T
|
500T
|
|
|
Nominal Force
|
KN
|
630
|
1000
|
1600
|
2000
|
2500
|
3150
|
4000
|
5000
|
|
Certifications
Exhibition
India-BLECH INDIA
UAE-STEELFAB
Russia-METALLOOBROBOTKA
Thailand-METALEX
Manufacturing Technique
Cutting
Lathe
Milling
Drilling
Welding
Boring
Package & Shipping
FAQ
What will be the payment method for the transaction?
We can accept T/T, Irrevocable Letter of credit(LC), Cash, Bank guarantee, Western Union and etc.
How is about the quality of HARSLE machines
We hare world-class R&D team to support the quality of our machines, our products have got CE, ISO and SGS certification to prove the advantages of HARSLE machines.
How can I visit HARSLE factory in China?
-Take high speed train from other city to Nanjing south railway station, HARSLE factory is around 40KM far from this station.
-Take plane to Nanjing Lukou international airport, HARSLE factory is around 20KM far from this airport.
-Take plane to Nanjing Lukou international airport, HARSLE factory is around 20KM far from this airport.
How can I get after-sales service from HARSLE?
You can contact HARSLE via phone or Email, HARSLE will certainly give you reply in 24 hours. You can show your questions or problems in the form of video or picture that would be better for both of us to solve your problems promptly. Customers can also contact our local agent directly, they will give you reply ASAP.
What is the warranty about HARSLE machine?
We will provide 3 years warranty for HARSLE machines, during the warranty period, customers can get thorough and timely service and HARSLE will send the spare parts for replacement of any broken parts on the machine for free.
