Quick Details
-
Brand Name:
-
BOJIADATECH
-
Model Number:
-
BJD 3 Port 4Pin network switch
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Switch -3 Ports - Unmanaged
-
Product Name:
-
3 Port 4Pin Ethernet Switch DC 5V 0.2A
-
Condition:
-
100% Original Brand
-
Warranty:
-
2 Years
-
Power Input:
-
5VDC 0.2A
-
Connector Type:
-
4pin network connector
-
Complies with:
-
IEEE 802.3 and IEEE 802.3u standards
-
Dimensions (W x D x H):
-
60x50x18mm
-
Manufacturer:
-
Shenzhen
-
Type:
-
Wired
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1G
-
Brand Name:
-
BOJIADATECH
-
Model Number:
-
BJD 3 Port 4Pin network switch
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Switch -3 Ports - Unmanaged
-
Product Name:
-
3 Port 4Pin Ethernet Switch DC 5V 0.2A
-
Condition:
-
100% Original Brand
-
Warranty:
-
2 Years
-
Power Input:
-
5VDC 0.2A
-
Connector Type:
-
4pin network connector
-
Complies with:
-
IEEE 802.3 and IEEE 802.3u standards
-
Dimensions (W x D x H):
-
60x50x18mm
-
Manufacturer:
-
Shenzhen
-
Type:
-
Wired

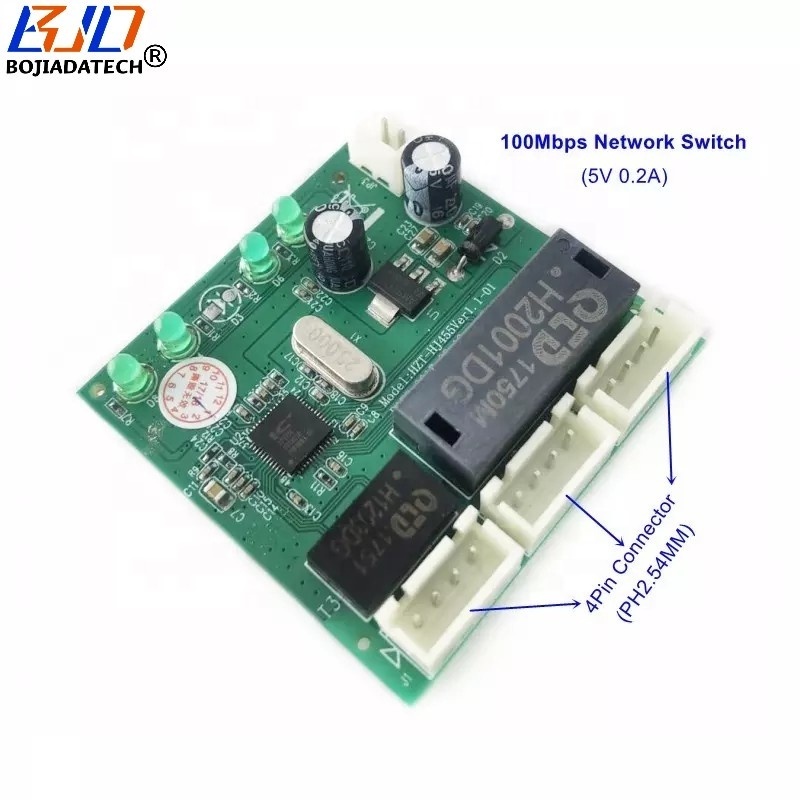

3 Port 4Pin Ethernet Switch DC 5V 0.2A Lan Network Switch Unmanaged 100Mbps in stock
|
Switch manufacturers 10/100mbps mini ethernet switch 3 port miniethernet switch board 3 port network switch Pcb Switch 3 port din rail case din rail industrial ethernet switch |
Complies with IEEE 802.3 and IEEE 802.3u standards
3 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
Support MACaddress auto-learning and auto-aging
LED indicators for monitoring power, link/activity
Mini cabling size design
PCBA size: 60x50x18mm
Power Input: 5VDC, 0.2 A
Product pass CE and ROHS Certification
Chip: IP175G/GH
OEM/ODM, Professional custom cabling boxes Ethernet switch module
|
Standards |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3x flow control |
|
protocol |
CSMA/CD |
|
Transmission Rate |
Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
|
|
Topology |
Star |
|
Network Medium |
10Base-T:Cat 3 or above Cat.3 UTP(≤100m) 100Base-TX:Cat 5 UTP(≤100m) |
|
Number of Ports |
3port 10/100M 4pin Network ports |
|
UPLINK |
Any port (support Auto-MDI/MDIX function) |
|
Transmits Method |
Store-and-Forward |
|
Temperature |
Operating Temperature 0 C~40 C (32 F~104 F) Storage Temperature -40 C~70 C (-40 F~158 F) |
|
Humidity |
Operating Humidity 10%~90% non-condensing Storage humidity 5%~95% non-condensing |
|
Switch capacity |
1G |
|
LED Indications
|
1* power LED(Power: Red) 3* port LEDs(Link/Act: Green) |
|
Dimension(W x H x D) |
60x50x18mm |
|
Power Supply |
External Supply power adapter DC 5-12v |
|
Case Material |
no |
|
certificate |
CE ROSH |
