Quick Details
-
Power:
-
3.3kw
-
Table Size:
-
2250*1130*1200mm
-
Overall Dimensions:
-
2470*1190*1710mm
-
Weight:
-
2066 kg
-
Marketing Type:
-
New Product
-

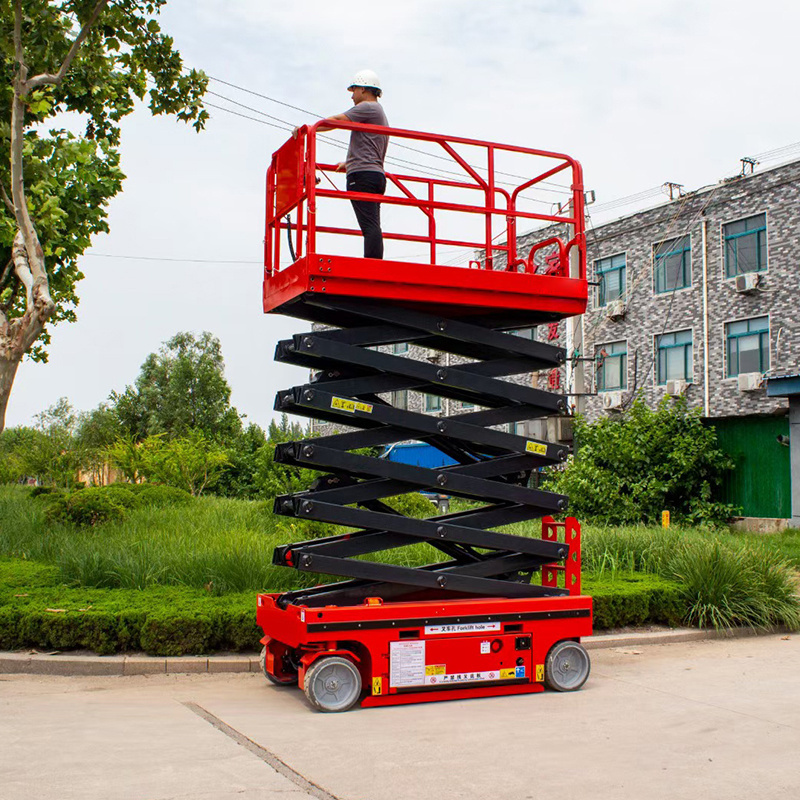

Product name:
-
self propelled scissor lift
-
Model:
-
MY6
-
Maximum platform height:
-
6m
-
Extended platform safe working load:
-
110kg
-
Countertop extension size:
-
0.9m
-
Lifting speed:
-
3-5m/min
-
Charger:
-
24V/30A
-
Machine traveling speed:
-
4*6V/200ah
-
Maximum climbing ability:
-
25%
-
Maximum allowable working angle:
-
1.5° /3°
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MINGYANG
-
Power:
-
3.3kw
-
Table Size:
-
2250*1130*1200mm
-
Overall Dimensions:
-
2470*1190*1710mm
-
Weight:
-
2066 kg
-
Marketing Type:
-
New Product
-
Product name:
-
self propelled scissor lift
-
Model:
-
MY6
-
Maximum platform height:
-
6m
-
Extended platform safe working load:
-
110kg
-
Countertop extension size:
-
0.9m
-
Lifting speed:
-
3-5m/min
-
Charger:
-
24V/30A
-
Machine traveling speed:
-
4*6V/200ah
-
Maximum climbing ability:
-
25%
-
Maximum allowable working angle:
-
1.5° /3°
High quality CE Euro5 EPA NEW
Scissor Lift
with good price
Working height
8m to 16m
Special reminder ：
Different customers will customize the color, configuration, model, appearance and so on according to their own needs. We will make quotations according to the needs of customers, so the quotation will be different, please understand.
Products Description
|
Model
|
MY6
|
MY8
|
MY10
|
MY12
|
MY14
|
|
Maximum working height
|
8m
|
10m
|
12m
|
13.85m
|
15.8m
|
|
Maximum platform height
|
6m
|
8m
|
10m
|
12m
|
14m
|
|
Safe working load
|
450 kg
|
450 kg
|
320 kg
|
320 kg
|
230kg
|
|
Extended platform safe working load
|
110kg
|
110kg
|
110kg
|
110kg
|
110kg
|
|
Working platform dimensions (length × width × height)
|
2.25×1.13×1.2m
|
2.25×1.13×1.2m
|
2.25×1.13×1.2m
|
2.25×1.13×1.2m
|
2.636×1.13×1.2m
|
|
Countertop extension size
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
|
Minimum ground clearance
|
0.1/0.15m
|
0.1/0.15m
|
0.1/0.15m
|
0.1/0.15m
|
0.1/0.02m
|
|
Wheelbase
|
1.90m
|
1.90m
|
1.90m
|
1.90m
|
2.24m
|
|
Turning radius (inner wheel/outer wheel)
|
0/2.35m
|
0/2.35m
|
0/2.35m
|
0/2.35m
|
0/2.5m
|
|
Lift/Drive motor
|
24V/3.3kw
|
24V/3.3kw
|
24V/4.5kw
|
24V/4.5kw
|
24V/4.5kw
|
|
Lifting speed
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
|
Machine traveling speed (retracted state)
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
|
Machine traveling speed (lifting state)
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
|
Battery
|
4×6V/200ah
|
4×6V/200ah
|
4×6V/200ah
|
4×6V/200ah
|
4×6V/200ah
|
|
Charger
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
|
Maximum climbing ability
|
25%
|
25%
|
25%
|
25%
|
25%
|
|
Maximum allowable working angle
|
1.5° /3°
|
1.5° /3°
|
1.5° /3°
|
1.5° /3°
|
1.5° /3°
|
|
Tire
|
Φ381×127mm
|
Φ381×127mm
|
Φ381×127mm
|
Φ381×127mm
|
Φ381×127mm
|
|
Total Weight
|
2066kg
|
2208kg
|
2506kg
|
2900kg
|
3570kg
|
Features
1.Strong stability at height;
2.Non-marking tires
2.Non-marking tires
3.True zero inside turning radius, working well in tight areas;
4.Swing doors on both sides, easy for maintenance;
5.Extended duty cycle due to highly efficient design.
5.Extended duty cycle due to highly efficient design.
6.Safety protections: tilting sensor / overload sensor /
pothole
protection / automatic braking / manual lowering / automatic stop when overheated / safety valve on hydraulic cylinder
