2. Roof Exhaust Fan 3.Full Mold, Aluminum Alloy Structure
4.Pure copper Motor
5.Anti-explosive Type Is Available
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Damuyuan
-
Model Number:
-
315mm, 400mm, 500mm, 560mm, 630mm, 710mm, 800mm, 900mm, 1000mm
-
Product name:
-
downblast roof fan
-
Application:
-
Exhaust Ventilation
-
Size:
-
300mm-1000mm
-
Keyword:
-
Exhaust Fan Ventilation
-
Motor:
-
100% Copper Motor
-
Material:
-
Steel cases aluminum blades
-
Rated voltage:
-
110/120V 220/240V and other voltage
-
Certification:
-
CCC/CE/ISO9001
-
Installation:
-
standing type
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
-
Electric Current Type:
-
AC
-
Mounting:
-
standing type Fan
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Damuyuan
-
Model Number:
-
315mm, 400mm, 500mm, 560mm, 630mm, 710mm, 800mm, 900mm, 1000mm
-
Product name:
-
downblast roof fan
-
Application:
-
Exhaust Ventilation
-
Size:
-
300mm-1000mm
-
Keyword:
-
Exhaust Fan Ventilation
-
Motor:
-
100% Copper Motor
-
Material:
-
Steel cases aluminum blades
-
Rated voltage:
-
110/120V 220/240V and other voltage
-
Certification:
-
CCC/CE/ISO9001
-
Installation:
-
standing type
Product Description

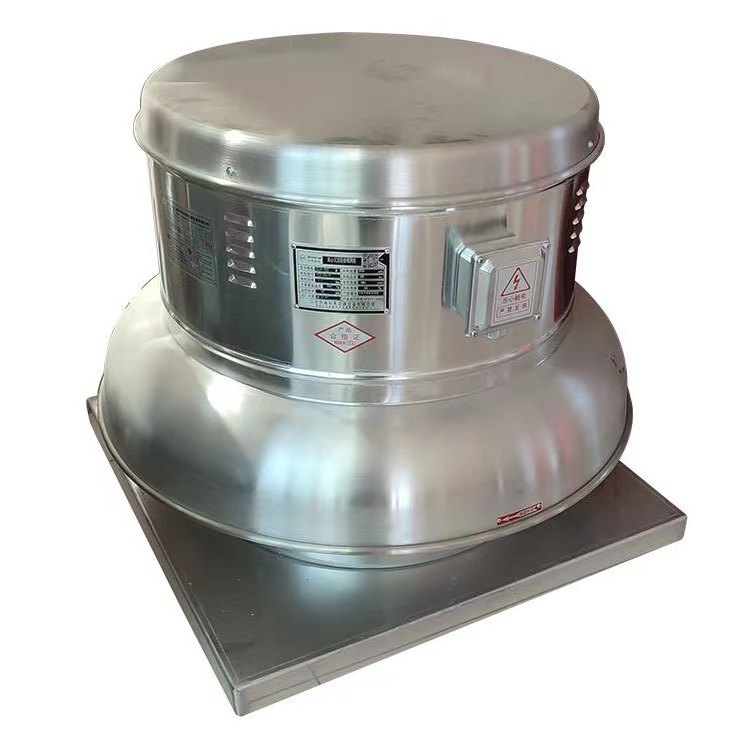

Centrifugal Fan Warehouse Exhaust Fan
Roof Fan
Product Introduction:
It is widely used for ventilating and air exchanging for petroleum, chemical, textile, metallurgy, casting and mechanical plant, office. laboratory, warehouse, etc. It is installed directly on the roof, very convenient to operate.
2. Roof Exhaust Fan 3.Full Mold, Aluminum Alloy Structure
4.Pure copper Motor
5.Anti-explosive Type Is Available
Specification
|
Model
|
Blades dia
mm
|
Power
|
Air volume
m³/h
|
Pressure
pa
|
|
RTC-300
|
315
|
0.12KW-6P
|
1276-2070
|
125-62
|
|
|
|
0.18KW-6P
|
1517-2460
|
129-65
|
|
|
|
0.25KW-4P
|
1962-3010
|
194-93
|
|
RTC-425
|
400
|
0.18KW-6P
|
1843-4040
|
161-80
|
|
|
|
0.25KW-6P
|
3146-5033
|
168-82
|
|
|
|
0.55KW-4P
|
4077-5609
|
291-140
|
|
|
|
0.75KW-4P
|
4598-6722
|
324-157
|
|
RTC-500
|
500
|
0.25KW-8P
|
3680-5855
|
205-59
|
|
|
|
0.55KW-6P
|
4730-7510
|
223-95
|
|
|
|
0.75KW-6P
|
5440-8585
|
227-98
|
|
|
|
1.1KW-4P
|
7773-10885
|
378-178
|
|
|
|
2.2KW-4P
|
7920-11450
|
454-254
|
|
RTC-575
|
560
|
0.37KW-10P
|
4278-6690
|
147-56
|
|
|
|
0.55KW-8P
|
4306-8486
|
181-79
|
|
|
|
0.75KW-8P
|
5280-9475
|
180-84
|
|
|
|
1.1KW-6P
|
6708-10420
|
236-100
|
|
|
|
1.5KW-6P
|
9455-12953
|
246-102
|
|
RTC-675
|
630
|
0.75KW-8P
|
8220-13201
|
298-125
|
|
|
|
1.1KW-8P
|
6144-14459
|
324-148
|
|
|
|
1.5KW-6P
|
7224-16520
|
432-181
|
|
|
|
2.2KW-6P
|
10620-18720
|
432-197
|
Packing & Delivery
We can pack the goods in wooden cases and iron frames according to the requirements of customers, which is convenient for shipping
or air transportation.
