Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BATTLE-AXE
-
Model Number:
-
ZF-40-2C
-
Warranty:
-
12 Months
-
Certification:
-
CE
-
Runway length:
-
4500mm
-
Runway width:
-
600mm
-
Raising time:
-
12s
-
lifting height:
-
1800mm
-
Min Height:
-
170mm
-
install:
-
ground surface mount
-
Power Supply:
-
220v/380v/415v/optional
-
Distance between platforms:
-
800-900mm
-
central jack height:
-
450mm
-
Product name:
-
double cylinder used hydraulics car alignment scissor lift for sale
Quick Details
-
Lifting Capacity:
-
4000kg
-
Lifting Height(mm):
-
1850mm
-
Overall Width(mm):
-
2000mm-2100mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BATTLE-AXE
-
Model Number:
-
ZF-40-2C
-
Warranty:
-
12 Months
-
Certification:
-
CE
-
Runway length:
-
4500mm
-
Runway width:
-
600mm
-
Raising time:
-
12s
-
lifting height:
-
1800mm
-
Min Height:
-
170mm
-
install:
-
ground surface mount
-
Power Supply:
-
220v/380v/415v/optional
-
Distance between platforms:
-
800-900mm
-
central jack height:
-
450mm
-
Product name:
-
double cylinder used hydraulics car alignment scissor lift for sale

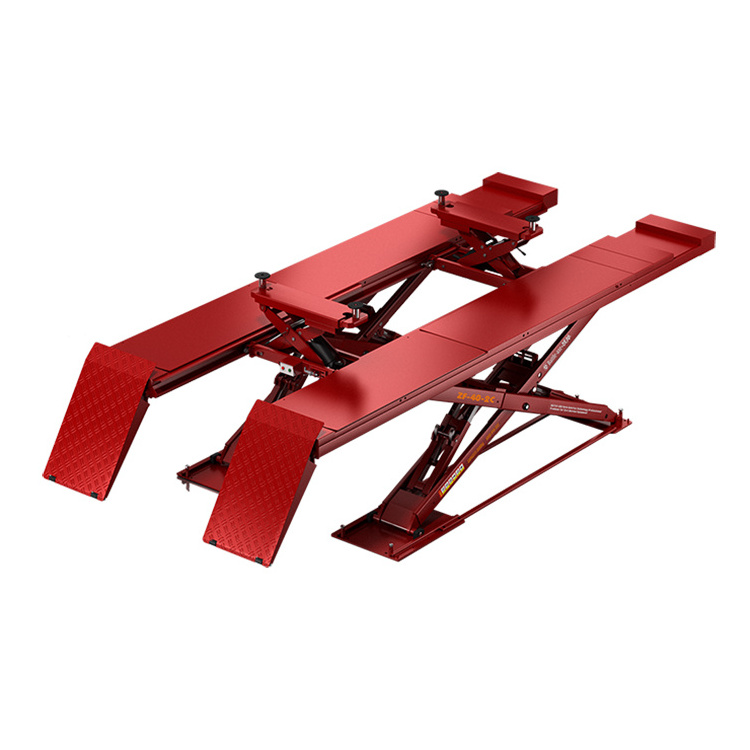

3.5 ton double cylinder used hydraulics car alignment scissor lift for sale
| 1. all electro hydraulic lift parts produced by numerical control equipment, high accurate and precise |
| 2. the electro hydraulic lift runway plate width is the same with crossbeam, small gap between lift and pit, perfect beautiful installation |
| 3. all electro hydraulic lift electronic components inside the controller box are from well know professional factories, very stable and reliable |
| 4. electro hydraulic lift adopted electrostatic spraying powder surface treatment technology, much more stronger than oil painting, no easy to scratch and fall off |
|
5. super mute, the parts friction noise can not be heard at all, only a little oil transport noise |
|
6. unique self diagnosis cotrol system, easy operation |
|
7. easy for maintenance, branded sealant for oli tank |
|
8. double cylinders more safe & stable |
|
9. double pneumatic safety lock & refined clinder rod |
|
Lift Capacity |
4000kgs |
Runway length |
4500mm |
|
runway width |
600mm |
distance between runway |
800-900mm |
|
lifting height |
1850mm |
Secondary Lift Height |
450MM |
|
min height |
170mm |
Raise Time |
12sec |
|
All electro hydraulic lift Have been done weight testing, level testing and overpressure testing
|
|||
Special Features: Battle-Axe Developed Self-Diagnosis Function on Control Box ,used for easy Maintenance
Control Box inside Electronic Components Battle-Axe adapt Branded type to make sure The Quality(will not notify furture if any change according to factory )
Body color you can choose
Overall size of Alignment scissor Lift ZF-40-C
Certification
|
Package Item |
Package quantity | Package size | Weight |
| Platform & Oil Pipe Cover | 2 | 4600X650X190mm |
1950/1980kgs 9 set/20FCL |
| Control box | 1 | 560x420x1040mm | |
| Secondary Jack | 1 | 1140X640X720mm |
-Whole machine with 12 months warranty since bill of loading date
-Spare Parts: Generally we will sent freely spare parts together with whole machine for customer or dealer future replacement, but will subject to order amount
-All spare parts available in our warehous , you can select and pay for them
-Installation: through user manual, and we installed the Connect Nos to different Oil Pipe and control box, you directly find no 1 connector, and find another no 1 connector, connect both together then finished
-With Problem shooting explaination
