Quick Details
-
Engine Brand:
-
yto
-
Weight:
-
4500 KG
-
Name:
-
Farmer Tractor
-
Tractor overall dimension:
-
3560*1650*2350 mm
-
Clutch:
-
double acting clutch
-
Engine:
-
4 stroke, Water cooled
-
PTO Spedd(r/min):
-
540/760(option: 540/ 1000)
-
Suspension mechanism:
-
Three-piont suspension type 1
-
Gearbox:
-
8F+8R Shuttle Shift
-
Minimum ground clearance(mm):
-
330
-
Front wheel specifications:
-
6.00-16/6.5- 16/7.5- 16
-
Rear wheel specifications:
-
9.5-24/ 11.2-24/ 12.4-24
Quick Details
-
Brand Name:
-
BADA
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
Other
-
Engine Brand:
-
yto
-
Weight:
-
4500 KG
-
Name:
-
Farmer Tractor
-
Tractor overall dimension:
-
3560*1650*2350 mm
-
Clutch:
-
double acting clutch
-
Engine:
-
4 stroke, Water cooled
-
PTO Spedd(r/min):
-
540/760(option: 540/ 1000)
-
Suspension mechanism:
-
Three-piont suspension type 1
-
Gearbox:
-
8F+8R Shuttle Shift
-
Minimum ground clearance(mm):
-
330
-
Front wheel specifications:
-
6.00-16/6.5- 16/7.5- 16
-
Rear wheel specifications:
-
9.5-24/ 11.2-24/ 12.4-24
1
.
BADA agricultural machinery professional sales staff
can provide you with one-stop solution for purchasing agricultural machinery and equipment.
2.
perfect product quality control system
, let you buy with confidence,
for your farmland seeding and harvesting operations to create greater value.
3. We are committed to providing
24 months full warranty and after-sales service.
All tractors are provided with warranty,
spare parts by mail and remote / on-site technical guidance, faulty products are returned and replaced. Relieve the agent's
worries. Better develop overseas market.
Product Description

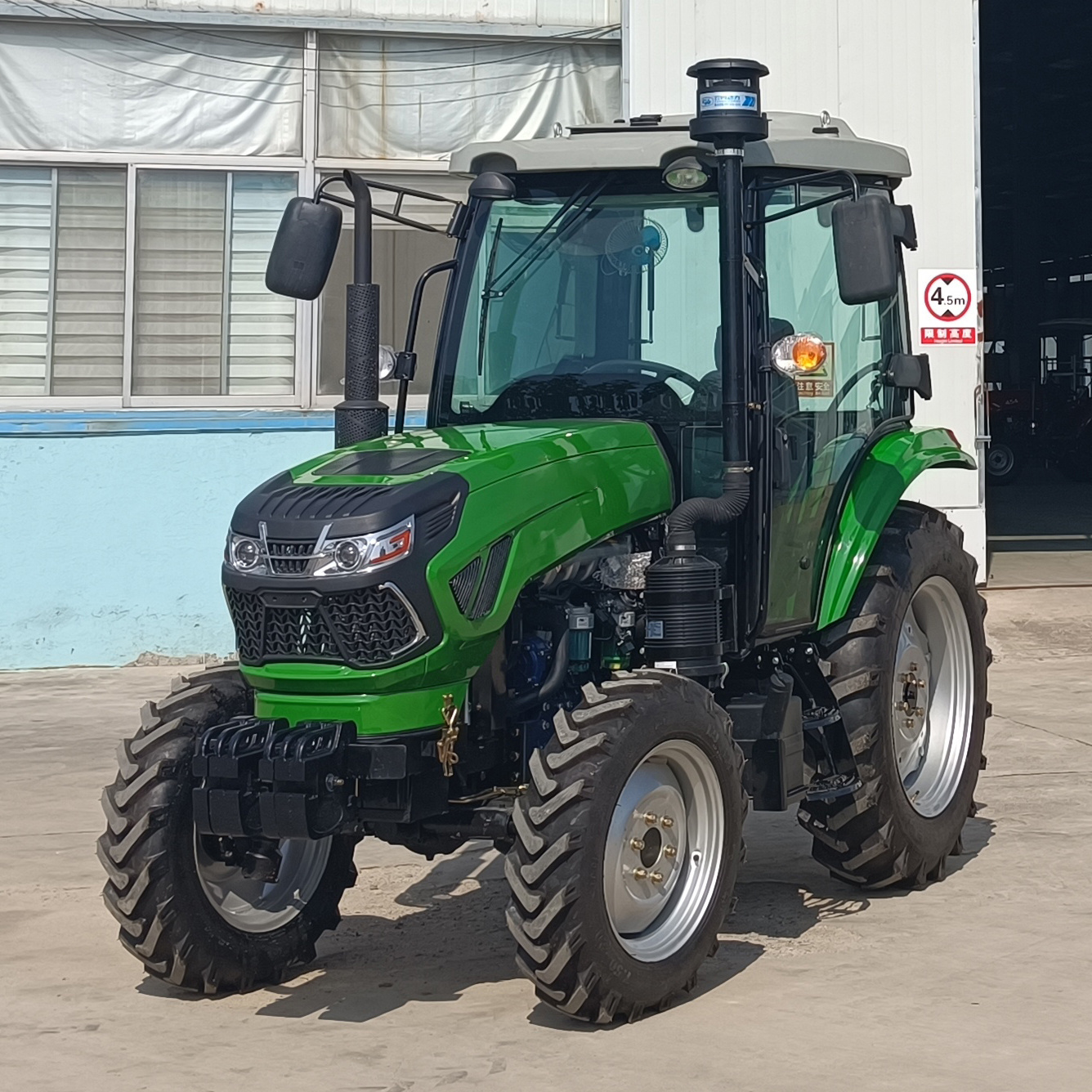

Technical features of the bada 70 hp tractor
Four-wheel drive four-wheel agricultural tractor with front-end loader and backhoe with four-cylinder engine and wider tyres to help you take advantage of the farming season!
‘Reversible gearbox (8+8) with differential lock, hydraulic steering and four-wheel drive
* PTO speed 540/760 r/min. optional 540/1000 r/min or 760/1000r/min Gear pump flow 32 L/min
*Double-stage clutch for uninterrupted PTO operation during gear changes.
|
Model
|
BADA-704
|
|
|
|
Machine parameters
|
Type
|
4 ×4
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Rated Traction( KN)
|
16.2
|
|
|
|
PTO Max Power (KW)
|
43.8
|
|
|
|
Dimensions(mm)
|
3560× 1650×2350
|
|
|
Wheelbase(mm)
|
|
1965
|
|
|
Track(mm)
|
Front wheel(mm)
|
1150
|
|
|
|
Rear wheel(mm)
|
1200- 1360
|
|
|
Ground clearance(mm)
|
Minimum ground clearance(mm)
|
330
|
|
|
Minimum turning cricle radius
|
Use unilateral braking
|
2.85±0.20
|
|
|
|
Not unilateral braking
|
3. 15±0.30
|
|
|
Minimum use quality
|
|
1660
|
|
|
Gearbox
|
8F+8R Shuttle Shift
|
|
|
|
Steering System
|
hydraulic steering gear
|
|
|
|
Drive Train
|
Clutch
|
double acting clutch
|
|
|
Working equipment
|
Maximum lifting force at 610mm(KN)
|
≥10
|
|
|
|
Suspension mechanism
|
Three-piont suspension type 1
|
|
|
PTO shaft
|
PTO Spedd(r/min)
|
540/760(option: 540/ 1000)
|
|
|
Tire
|
Front wheel specifications
|
6.00-16/6.5- 16/7.5- 16
|
|
|
|
|
|
|
|
|
Rear wheel specifications
|
9.5-24/ 11.2-24/ 12.4-24
|
|
|
Engine
|
Type
|
Inline, 4 stroke, Water cooled
|
|
|
|
|
|
|
|
|
Cylinder
|
4
|
|
|
Optional
|
Cabin
|
AC/Heater
|
|
|
|
|
|
|
|
|
Roll bar
|
|
|
|
|
Canopy
|
|
|
|
Perfusion volume
|
Radiater(L)
|
10
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fuel tank(L)
|
29
|
|
|
|
Engine oil pan(L)
|
5
|
|
|
|
Driveline oil (L)
|
20
|
|
|
|
Lifter(L)
|
9.5
|
|
Engine:
4-cylinder turbocharged diesel engine
4-cylinder turbocharged diesel engine, Chinese famous brand engine
Low fuel consumption and large torque reserve. Strong engine power, easy to maintain.
High reliability, stable quality, long service life
Shuttle shift
8+8 gears, lateral shift; reinforced chassis:
Reversible gearbox (8+8) with differential lock
Lateral manoeuvring, stable, fast and
convenient layout and operation, and
Ergonomic Strong load carrying capacity;
Front axle
Reinforced front axle
End planetary gear structure, higher transmission efficiency; centre-mounted cylinder front axle, large left and right steering radius, more flexible steering:
Gear grinding, high strength, low noise; multi-lip composite oil seal, good sealing effect, anti-water ingress, long service life;
Clutch
9-inch double-acting clutch, first-line optimised quality product;
Separate operation of travelling and power output.
More suitable for sowing, planting and harvesting
Hydraulic output
High-quality constant-flow and gear pumps
2 sets of multi-way valves for hydraulic output;
Can lift up to 1050kg
High lifting force and down force for better
pressing of agricultural machinery into the soil.
