Quick Details
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAGA FIRST
-
Model Number:
-
AWL
-
Type:
-
Elevators
-
Safety Precaution 1:
-
Safety Sensor At Bottom
-
Safety Precaution 2:
-
Anti-explosion Valve
-
Emergency Decline Valve:
-
Yes
-
Guiderail Material:
-
Aluminum Alloy
-
Operation Mode:
-
Control Panel/Column Control/Remote Control
-
Surface Treatment:
-
Plastic Spraying
-
Color:
-
Gray,Customized
-
Input Voltage:
-
110V 220V 240V 380V, 400V, Customized
-
Control Voltage:
-
24V
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE, Others
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAGA FIRST
-
Model Number:
-
AWL
-
Type:
-
Elevators
-
Safety Precaution 1:
-
Safety Sensor At Bottom
-
Safety Precaution 2:
-
Anti-explosion Valve
-
Emergency Decline Valve:
-
Yes
-
Guiderail Material:
-
Aluminum Alloy
-
Operation Mode:
-
Control Panel/Column Control/Remote Control
-
Surface Treatment:
-
Plastic Spraying
-
Color:
-
Gray,Customized
-
Input Voltage:
-
110V 220V 240V 380V, 400V, Customized
-
Control Voltage:
-
24V

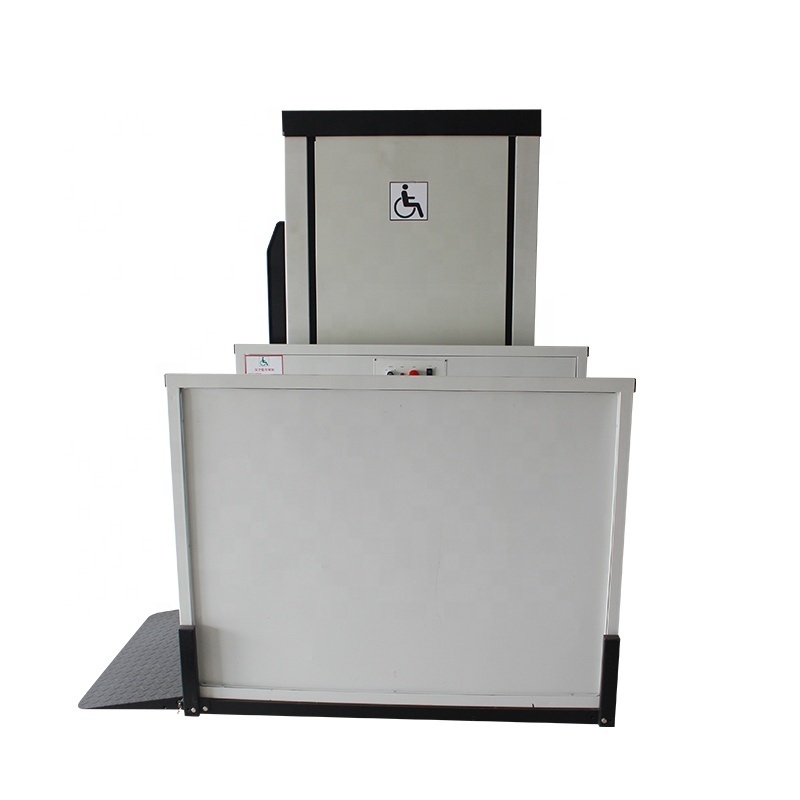

1-12m Vertical Lift Platform for Disabled
- OEM & ODM Service -
| Model | AWL2510 | AWL2515 | AWL2520 | AWL2525 | AWL 2530 | AWL 2535 | AWL2540 | AWL2550 | AWL2560 |
| Platform Size(mm) | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 |
| Lift Capacity(KG) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Lifting Height(mm) | 1000 | 1500 | 2000 | 2500.0 | 3000 | 3500 | 4000 | 5000 | 6000 |
| Overall Size(mm) |
2000*1430 *1300 |
2500*1430 *1300 |
3000*1430 *1000 |
3500*1430 *100 |
4000*1430 *1000 |
4600*1430 *1000 |
5100*1430 *1000 |
6100*1430 *1000 |
7100*1430 *1000 |
| Groos Weight with Package(KG) | 450 | 550 | 700 | 850 | 900 | 1000 | 1050 | 1200 | 1300 |
| Net Weight(KG) | 350 | 450 | 550 | 700 | 780 | 850 | 880 | 1000 | 1100 |
| Lifting Speed(mm/s) | 66 | ||||||||
| Control Voltage(V) | 24 | ||||||||
| Motor Power(Kw) | 2.2 | ||||||||
| Imput Power(V) | As Per Customer Local Standard | ||||||||
| Package Size(mm) |
2200*1600 *1600 |
2700*1600 *1600 |
3200*1600 *1600 |
3700*1600 *1600 |
4200*1600 *1600 |
4800*1600 *1600 |
5300*1600 *1600 |
6300*1600 *1600 |
7300*1600 *1600 |
| Surface Treatment | Plastic Spraying | ||||||||
| Mast Material | Aluminum Alloy | ||||||||
| Warranty | 24Months | ||||||||
|
Working
Temperature |
-10°~60°( under low temperature can choose antifreeze hydraulic oil) | ||||||||
SAGAFIRST Brand AWL Series Aluminum Wheelchair Lifts are made with aluminum alloy guiderails which is lighter and more stable. No welding working, all parts can be assembled easily. Can be used indoors or outdoors and never rust because of its speical material. Looks more beautiful then traditional steel plate.
Height from 1m to 10m is customized. Load capacity from 250Kg to 300Kg is available.
Real High End Home Lift
Residential Home Elderly Disable Handicap Wheelchair Lift Platform is widely used at home and other public places for babies, Eldly people and disable peopele.
1. Aluminum Alloy material with great anti corrossion function.
2. High quality pump station make the wheelchair lifts and falls very stably.
3. Automatical Safety sensor at bottom stop lowering when come accorss barrier.
4. Electric magnetic lock works during lifting and lowering to guarantee safety.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.
Safety Precautions:
1. Explosion-proof valves 2. Spillover valve
3. Emergency decline valve 4. Anti Droping Safety Chains
5. Inter Linked Electric Magnetic Lock 6. Automatic Safety sensor:stop when come across barriers.
Aluminum Alloy Wheelchair Lift will be packed by wooden box with steel fram inside. Very strong and safe for shipment.
Sagafirst welcome to visit us to negotiate business and inspect the production.
All of sagafirst hydraulic home lifts are approved by European certificates and meet the international standards.
|
Questions |
Answers |
|
Are you a factory or trading company? |
We're factory with over 12years exporting experience. |
|
What's the MOQ? |
1UNIT,the more,the better. |
|
What's the payment terms? |
<USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD100,00: TT or Irrevocable L/C At Sight. |
|
Do you offer OEM&ODM service? |
Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc. |
|
What's the delivery time? |
15~20days after down payment |
|
What's the quality warranty? |
24 months.Offer free parts for replacement. |
|
How can I get the after-sales service? |
We offer videos,pictures and technical guidance immediately. |
|
What's your QA&QC policy? |
3times 100% inspection before shipping. |
|
Can you tell me your clients in my country? |
Of course. But only after the permittance of customers. |
