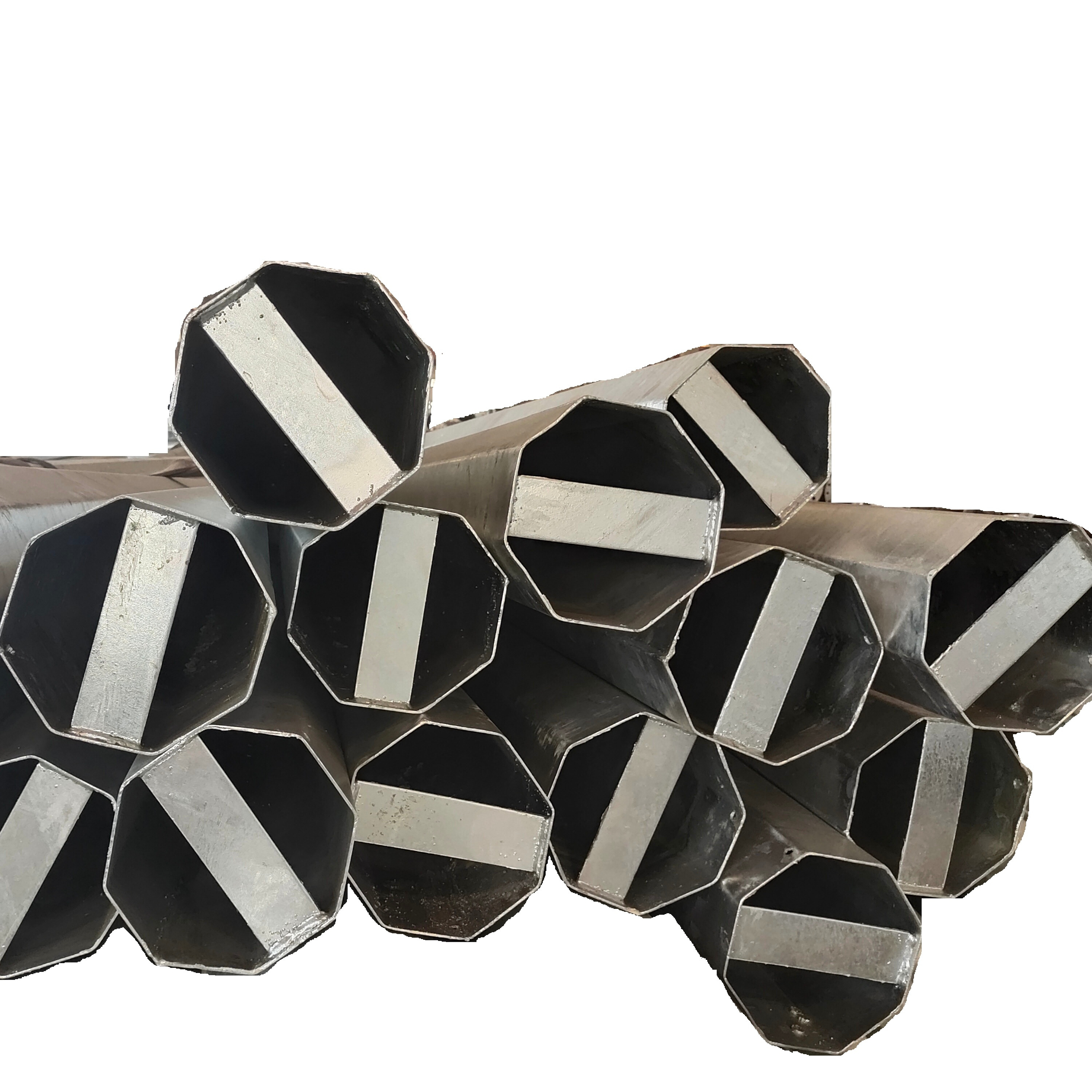

Polygon Hot Dip Galvanized Steel Pole , Steel Transmission Poles For Electrical Power Transmission Line

Polygon Hot Dip Galvanized Steel Pole , Steel Transmission Poles For Electrical Power Transmission Line

FOB Reference Price: Get Latest Price

≥25 Pieces

US $1520

≥50 Pieces

US $1500

≥75 Pieces

US $1485

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage Grade:: 110KV

Material:: Hot roll steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, etc.

Shape:: Round / polygonal / Conical / Tubular

Appearance Treatment:: Hot-dip galvanized / painting

Connection structure:: overlap / flange connection

Welding:: According to AWS D 1.1, CO2 welding or submerged arc auto methods

Application:: Power transmission and distribution Line

Certificate:: ISO9001-2015

Wall Thickness:: 2.3-18mm

Color:: Customizable

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: JHSP

Model Number:: HG-SP-110KV

Voltage Grade:: 110KV

Material:: Hot roll steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, etc.

Shape:: Round / polygonal / Conical / Tubular

Appearance Treatment:: Hot-dip galvanized / painting

Connection structure:: overlap / flange connection

Welding:: According to AWS D 1.1, CO2 welding or submerged arc auto methods

Application:: Power transmission and distribution Line

Certificate:: ISO9001-2015

Wall Thickness:: 2.3-18mm

Color:: Customizable

Product Description

Type	Suspension steel pole ,Tensile steel pole , Strain steel pole , Angle steel pole , Dead-end steel pole , etc
Voltage Grade	10~500KV steel pole (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
Shape	Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Material	Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Wall thickness	2~30mm
Once Forming	16m Once forming without joint
Welding	Welding of 15m steel pole complies with AWS D1.1 standard. CO2 welding or submerged arc auto methods No fissure, scar, overlap, layer or other defects on the 15m steel pole Internal and external welding makes the 15m steel pole more beautiful in shape If customers need any other requirements of welding, we also can make adjustment ad your request
Joint	Joint with insert mode, flange mode.
Base plate	Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
Galvanization	15m steel pole is h ot dip galvanized in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Painting	According to clients' request
Life Period	More than 25 years, it is according to installing environment
Certificates	ISO9001-2008 , AAA credit rating, etc

Engineering and Design Management

“Design and technology , professional and common, software and hardware” is JSHG‘s 15m steel pole design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.

In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.

Since the establishment, JSHG have put forward thousands of design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.

Key Production Equipments for 15m Steel Pole
