Quick Details
-
Output Speed:
-
based on ratio
-
Warranty:
-
12 months, 12 Months
-
Weight (KG):
-
8 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
3F FAMED
-
Ratio:
-
6-20
-
Color:
-
Black and Silver
-
Mounting Position:
-
Any Direction
-
Certification:
-
ISO9001 CE
-
Backlash:
-
1~8arcmin
-
Gear type:
-
Bevel Gear
-
Packing:
-
Carton or wood box
-
Matching Motors:
-
servo motor or stepper motor
-
Output Form:
-
Hollow shaft
Quick Details
-
Gearing Arrangement:
-
Bevel / Miter
-
Output Torque:
-
200-250Nm
-
Input Speed:
-
based on motor
-
Output Speed:
-
based on ratio
-
Warranty:
-
12 months, 12 Months
-
Weight (KG):
-
8 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
3F FAMED
-
Ratio:
-
6-20
-
Color:
-
Black and Silver
-
Mounting Position:
-
Any Direction
-
Certification:
-
ISO9001 CE
-
Backlash:
-
1~8arcmin
-
Gear type:
-
Bevel Gear
-
Packing:
-
Carton or wood box
-
Matching Motors:
-
servo motor or stepper motor
-
Output Form:
-
Hollow shaft

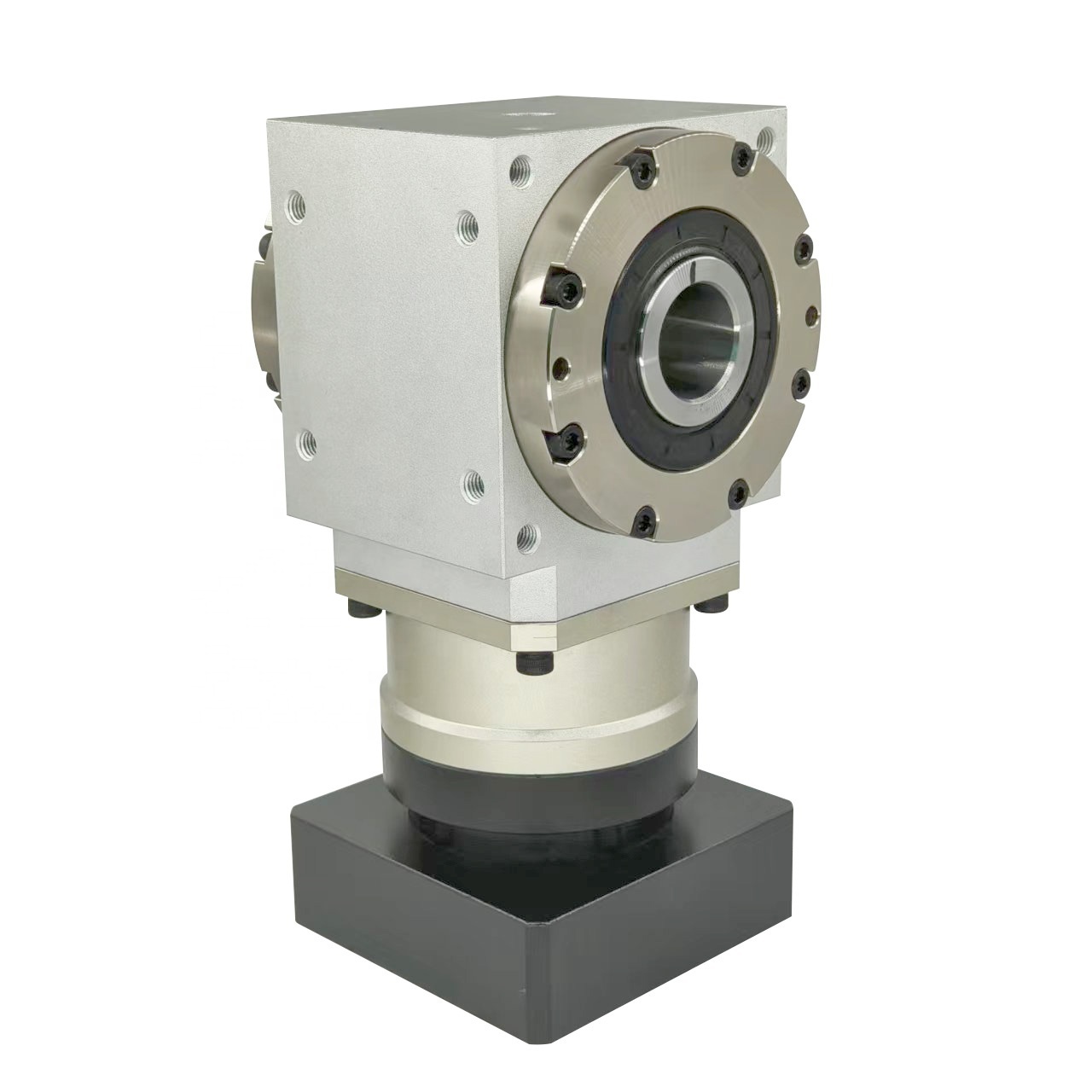

AAW-AS-RF-K precision steering gearbox is also a hollow shaft steering gearbox with rotary output flange, very similar to AAW-AS-RF steering gearbox, the difference is that AAW-AS-RF-K there is a keyway in the output flange hole. The optimized design prevents the transmission axis installed through the middle hole of AAW-AS-RF-K output flange from slipping when work in high torque or large load. AAW-AS-RF-K steering gearbox consists of compact housing, precise spiral bevel gears and motor adapter. The high efficient combination features the steering gearbox excellent rigid structure for that changeable output loading especially for heavy load occasions.
The motor adapter on the input side makes AAW-AS-RF-K right angle gearbox easily and efficiently connected to motor. Besides, the input flange size can also be customized according to different motor sizes, so our steering gearbox are able to replace the product from competitors. If your project needs to change the transmission direction and speed at the same time, AAW-AS-RF-K steering gearbox is the correct option(available ratio from 1:2 to 1:200).
|
Backlash
|
B1 precision：L1≤3arcmin, L2≤5arcmin
B2 precision：L1≤5 arcmin, L2≤8 arcmin
Standard precision：L1≤6 arcmin,
L2≤9 arcmin
|
|
Size
|
AAW070AS-RF-K; AAW080AS-RF-K; AAW110AS-RF-K; AAW135AS-RF-K; AAW135BS-RF-K; AAW165AS-RF-K; AAWA65BS-RF-K;AAW200AS-RF-K; AAW200BS-RF-K;
|
|
Ratio
|
1:2/6:1/8:1/10:1...20:1
|
|
Match motor
|
servo motor, stepper motor
|
|
Lead time
|
Standard size for 15-20days
|
|
Warranty
|
12 months
|
Q: Are you manufacturer or trader?
A:We are manufacturer. Sincerely welcome to visit our company. And we can have a video conference first if you are convenient.
Q: What're your main products?
A: We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor and stepper motor, electric cylinder and slide, coupling,etc. E-catalog is ready for you if you are interested.
Q: How to select a suitable gearbox?
A: Please show us your motor details or drawings. And also please advise working condition, load, output torque, output speed or reduction ratio, backlash, etc. Then we will recommend the suitable model. If you are unable to show all of above parameters, please contact us, then we will guide you step by step.
Q: Can I get the 3D and 2D drawings?
A: Sure, we have the standard drawings. Also the input size of gearbox can be customized according to different motors.
Q: Do you have an individual design service ?
A: Yes, we would like to design products individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A:Generally speaking, we keep many stocks of regular standard product, if shortage of stocks, it will need 15-20 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
