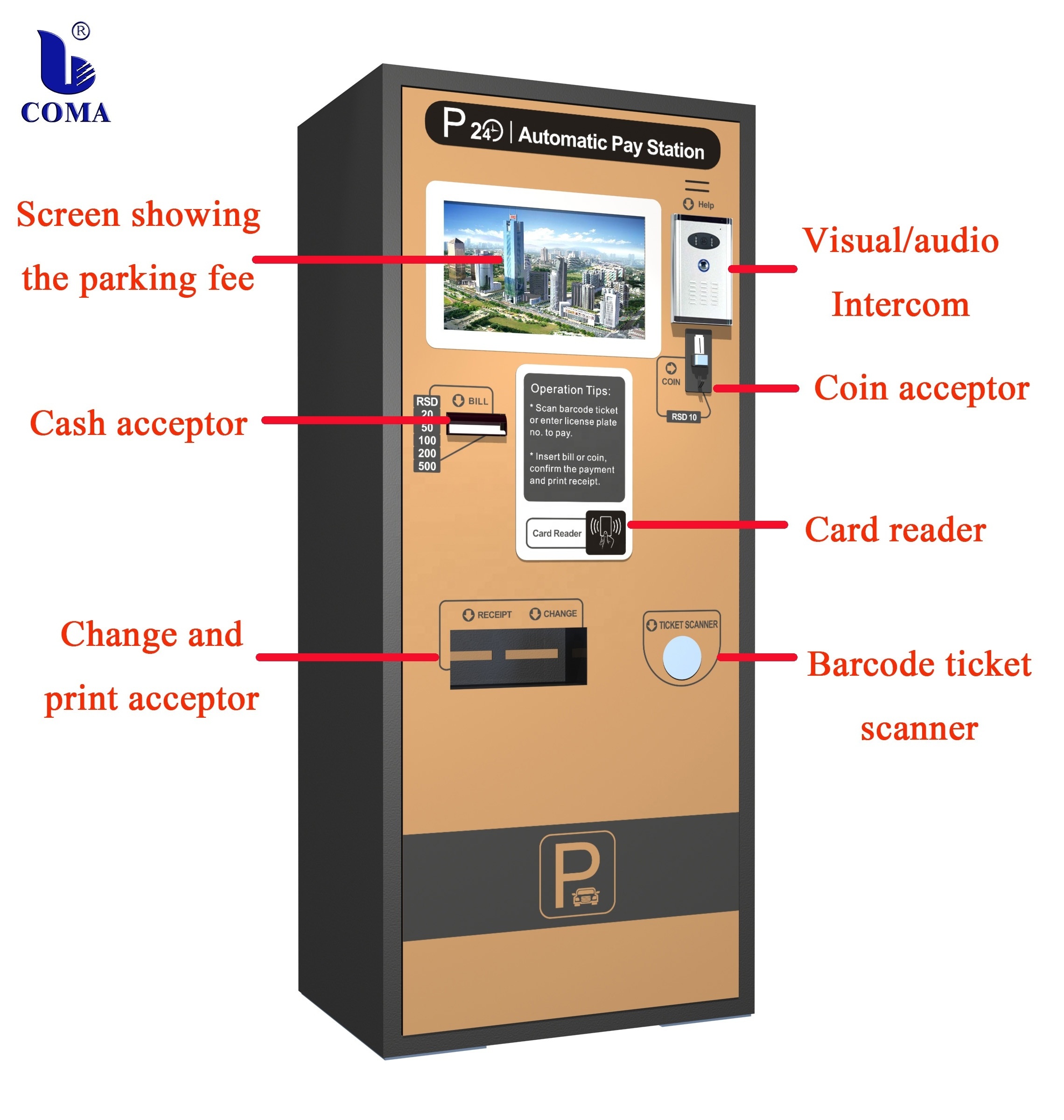

Parking payment kiosk is used to automatically manage the parking calculation, collection, change and small ticket printing charge
of equipment, 24-hour continuous operation, placed in indoor, configuration control, intercom and other security components .
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
12 Months
-
Working temperature:
-
-40℃- +75℃
-
Power:
-
110V/220V,AC,50HZ,120W
-
Communication port:
-
RS232,RS485,CAN,TCP/IP
-
Certification:
-
CE,ISO9001
-
Color:
-
Yellow/Grey
-
Material:
-
A3 steel T=2.5mm
-
Application:
-
Park-to-pay facilities
-
Operation system:
-
WindowXP
-
Usage:
-
Self service parking fee payment machine
-
Display Modes:
-
14.1 " Touch LCD screen
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COMA
-
Model Number:
-
PM24
-
Warranty:
-
12 Months
-
Working temperature:
-
-40℃- +75℃
-
Power:
-
110V/220V,AC,50HZ,120W
-
Communication port:
-
RS232,RS485,CAN,TCP/IP
-
Certification:
-
CE,ISO9001
-
Color:
-
Yellow/Grey
-
Material:
-
A3 steel T=2.5mm
-
Application:
-
Park-to-pay facilities
-
Operation system:
-
WindowXP
-
Usage:
-
Self service parking fee payment machine
-
Display Modes:
-
14.1 " Touch LCD screen
Why Choose Us
product Description
Automatic payment machine
|
Model
|
CMZ-8001
|
|
Power supply
|
220V±10%, 50-60Hz
|
|
UPS
|
can provide power about 5minutes after power failure
|
|
Speaker
|
1 no.
|
|
Consumption
|
≤ 250W
|
|
Mechanical characteristics
|
In-hall structure;
baking paniting body preventable against rust and corrosion Thick and solid material, not easy to cause deformation; Internal structure in which each module can be maintained easily and conveniently; Standard and ordered wiring |
|
Working environment
|
Environment temperature: -20 ºC to +50 ºC
Relative humidity: 40 % to 80 % (uncompressed) |
|
Applied location
|
For indoor use (keeping away from water)
|
|
Placement mode
|
Perpendicular to stable floor
|
|
Communication mode
|
TCP/IP
|
|
Switch
|
8 ports
|
|
Dimension (mm)
|
780*540*1810 ( without wheel )
|
|
|
780*540*1900 ( with wheel)
|
Features of New Design
* Two Doors design(front door and back door),more safe for payment, more convenient to maintenance.
* 2.0mm thickness steel structure,more robust,more safe
* Code lock for all the money box, the one who do maintenance can not touch the money inside the APM
* Available Video Intercom function
* UPS power supply
* Updated controller and system software
* Bank card payment & mobile payment are available for dedicated countries and regions
* Two Doors design(front door and back door),more safe for payment, more convenient to maintenance.
* 2.0mm thickness steel structure,more robust,more safe
* Code lock for all the money box, the one who do maintenance can not touch the money inside the APM
* Available Video Intercom function
* UPS power supply
* Updated controller and system software
* Bank card payment & mobile payment are available for dedicated countries and regions
Money Module
* Bill Acceptor: ITL England NV200
* Coins Acceptor:NRI Germany G13
* Bill Changer: MSF Korea SDM-2000
* Coins changer: CPI MK
* Bill Acceptor: ITL England NV200
* Coins Acceptor:NRI Germany G13
* Bill Changer: MSF Korea SDM-2000
* Coins changer: CPI MK
Ticket parker Operation Process
1.Scan the barcode ticket or read parking card which is dispensed at the entrance machine.
2. The 19" HD LCD touch screen will show how much you need to pay
3. Pay as the machine 's payment methods. You can combine several payment methods to pay parking fee.
4. After payment, a receipt is printed. The parking system allows 5-15 minutes for leaving the parking lot after payment. The time can be set by yourself.
5. Scan the bar code ticket or reading parking card at the exit machine, then the barrier will open automatically.
2. The 19" HD LCD touch screen will show how much you need to pay
3. Pay as the machine 's payment methods. You can combine several payment methods to pay parking fee.
4. After payment, a receipt is printed. The parking system allows 5-15 minutes for leaving the parking lot after payment. The time can be set by yourself.
5. Scan the bar code ticket or reading parking card at the exit machine, then the barrier will open automatically.
ANPR Parker
1. Enter license plate no. ( support fuzzy search), if license plate is ABCDEF, you can enter ABC, BCD or DEF, it displays related license plate no., selects your plate no.and click “confirm” .
2. When enter partial plate no., it shows all related plate no., if your license plate no. can’t be found in first page, click “ previous page” or “next page” to look for. Select your license plate picture, click “ confirm”.
3. Payment information will display as below:
After payment is made, APM will give change and print a receipt. The driver must leave parking lot within grace time (Usually is 15 minutes grace time), if driver leave the lot exceed grace time, system will calculate parking fee again.
When payment is done, system will return to standby interface and waiting for next parker.
Also, you can go to manual payment station, hand over barcode ticket and pay parking fee.
When payment is done, system will return to standby interface and waiting for next parker.
Also, you can go to manual payment station, hand over barcode ticket and pay parking fee.
