Countertop
(1) Phenolic Resin Countertop: 12.7mm (edged and thickened to 25.4mm)/16 ~ 30mm thickness
(2) Epoxy Resin Countertop: 16/19/20/25mm thickness
(3) Ceramic Countertop: 20mm thickness
(4) Trespa Countertop: 13/16/19/20/25mm thickness
(5) Granite/Marble Countertop: 20mm thickness
Cabinets and Accessories
(1) Rack: The whole is made of 40*60 * 1.5mm thick high quality cold rolled rectangular tube, the steel surface is treated, phosphated and other processes, then coated with epoxy resin electrostatic powder, cured at 220 ℃ high temperature, smooth surface.
(2) Handle: Aluminium alloy/non-welded linear handle/C-shaped SS handle/inserted aluminium alloy handle.
(3) Rail: DTC 16 inch 3-section silent rail.
(4) Hinge: DTC 105 °/175 ° cushion hinge/stainless steel hinge.
(5) FRAME WHEELS: High quality original levelling casters from FootMaster are used, with a load capacity of over 1000kg on the workbench.
(6) Wheels for cabinet: High quality PU silent universal wheels with brake, heavy duty, high mechanical strength, shock absorbing, wear resistant, no damage to floor. Single wheel withstands 120kg.
Optional Cabinet Unit
① Wooden cabinet unit.
Cabinet thickness 15mm, doors and drawer fronts are made of high quality environmentally friendly double-sided MDF/melamine board of 18mm thickness, edges are sealed with 2mm thick PVC edge strips. The edges are firm, clean, burr-free and firmly bonded.
② Steel cabinet unit.
1.0 mm full-thickness high-quality cold-rolled steel plate used as a whole; steel surface treatment, phosphating and other processes, and then electrostatic powder coated with epoxy resin, 220 ℃ high-temperature curing, the surface is smooth, the thickness of up to 1.15 mm ~ 1.2 mm. Cabinet door inside and outside the double-layer, filled with soundproof material.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
AIRCOLOURFUL
-
model number:
-
ACL-SYTH-1000X750
-
name:
-

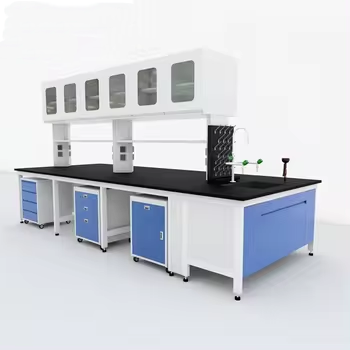

H-Frame Lab Work Bench
-
Product name:
-
Lab Modular Furnitures
-
Function:
-
Panel Filter, panel Filter, pre filter
-
Material:
-
Steel
-
Construction:
-
Metal
-
Structure:
-
H-Frame
-
Usage:
-
Biological Industry
-
Countertop:
-
Epoxy Resin Countertop
-
Certificate:
-
CE certification
Quick Details
-
Weight (KG):
-
100
-
Core Components:
-
assembly process
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AIRCOLOURFUL
-
model number:
-
ACL-SYTH-1000X750
-
name:
-
H-Frame Lab Work Bench
-
Product name:
-
Lab Modular Furnitures
-
Function:
-
Panel Filter, panel Filter, pre filter
-
Material:
-
Steel
-
Construction:
-
Metal
-
Structure:
-
H-Frame
-
Usage:
-
Biological Industry
-
Countertop:
-
Epoxy Resin Countertop
-
Certificate:
-
CE certification
Products Description
Product Paramenters
|
Specifcations
|
|
|
|
|
||||
|
Product
|
Dimensions
(Length*Depth*Height) |
ACL-WH69-2X2
610x610x69mm
|
ACL-WH69-4X2
1170x570x69mm
|
ACL-WH69-4X4
1170x1170x69mm
|
||||
|
H-Frame Wall Bench
|
L*750*850mm/Customize(Lx2.46'x2.78'/Customize)
|
|
|
|
||||
|
H-Frame Island Bench
|
L*1500*850mm/Customize(Lx4.92'x2.78'/Customize)
|
|
|
|
||||
|
H-Frame Corner Bench
|
1000*1000*850mm/Customize(Lx3.28'x3.28'/Customize)
|
|
|
|
||||
|
Note: Non-standard sizes can be customised according to customer needs
|
|
|
|
|
||||
