Quick Details
-
Ink Type:
-
Pigment Ink
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hancolor
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
4510*1010*1550mm
-
Weight:
-
900 KG
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
ink tank, ink nozzle, key board, carriage station, guide rail, pinch roller, printing platform, suction platform, take up system, drying system
-
Print Head:
-
I3200-E1/ XP600
-
Ink Color:
-
CMYK
-
Media Type:
-
Outdoor Advertising Materials
-
Software:
-
Maintop 5.3 / Photoprint
-
Advantage:
-
Easy Operation Low Cost
-
Resolution:
-
3200 DPI
-
Application:
-
flex banner, photo paper, car sticker, reflective materials and so on
-
Customized Logo:
-
Available
-
OEM/ODM:
-
Available
Quick Details
-
Print Dimension:
-
3200mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Pigment Ink
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hancolor
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
4510*1010*1550mm
-
Weight:
-
900 KG
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
ink tank, ink nozzle, key board, carriage station, guide rail, pinch roller, printing platform, suction platform, take up system, drying system
-
Print Head:
-
I3200-E1/ XP600
-
Ink Color:
-
CMYK
-
Media Type:
-
Outdoor Advertising Materials
-
Software:
-
Maintop 5.3 / Photoprint
-
Advantage:
-
Easy Operation Low Cost
-
Resolution:
-
3200 DPI
-
Application:
-
flex banner, photo paper, car sticker, reflective materials and so on
-
Customized Logo:
-
Available
-
OEM/ODM:
-
Available
Product Description
Main Features:
1. Heavy industrial structure to keep high speed printing output
2.Advanced components in pneumatic, electric and operation parts
3.Integrated design aluminun frame, keep high resolutions outpot
4. 2/4/5/6ft size optional, different printhead optional
5. Suitable for Eco Solvent printing and sublimation printing
Product Application
The scope of use includes:
Flex banner, SAV sticker, Tarpaulin, Wallpaper, One-way vision, Photo Paper, Canvas, Reflecting material, PVC film, PU film, and so on.
Product Parameters
|

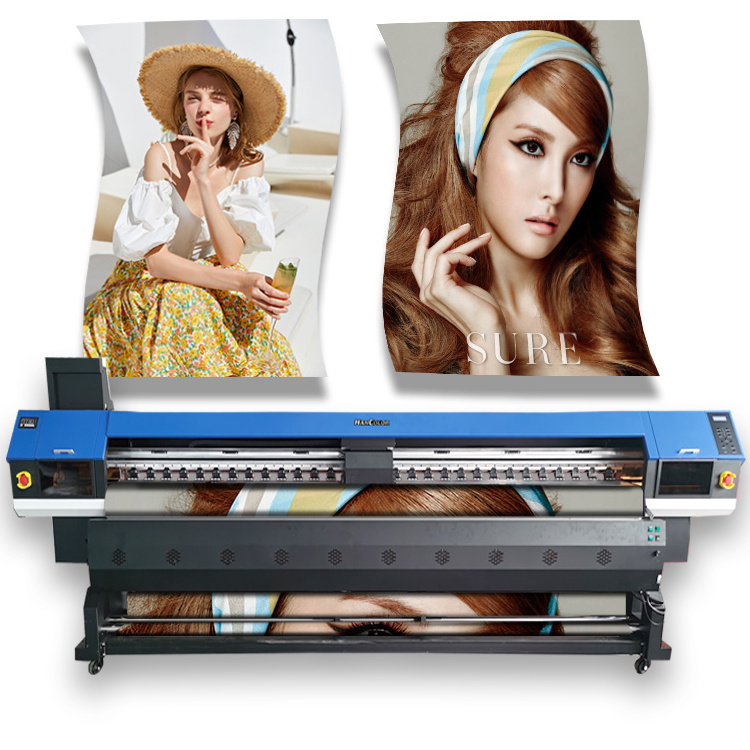

3.2m Eco Solvent Printer
|
|
|
||
|
Model
|
H3200-2
|
H3200-4
|
||
|
Printer Width
|
3200mm
|
3200mm
|
||
|
Printer Head
|
I3200-E1*2(XP600 optional)
|
I3200-E1*4
|
||
|
Color
|
CMYK
|
CMYK
|
||
|
Ink Type
|
Water based Ink, ECO Solvent Ink
|
Water based Ink, ECO Solvent Ink
|
||
|
Speed
|
2 pass: 83㎡/h
|
2 pass: 135㎡/h
|
||
|
|
3 pass: 55㎡/h
|
3 pass: 105㎡/h
|
||
|
|
4 pass: 40㎡/h
|
4 pass: 85㎡/h
|
||
|
|
6 pass: 30㎡/h
|
6 pass: 55㎡/h
|
||
|
Print Media
|
Inkjet cloth, photo paper, canvas, adhesive, PP, car stickers, reflective materials, etc.
|
|
||
|
Power
|
2200w(Dryer 3600W)
|
2200w(Dryer 6600W)
|
||
|
Power Supply
|
AC-220V 50Hz/60Hz
|
AC-220V 50Hz/60Hz
|
||
|
Size
|
Packing: 4510*1010*1550mm
|
Packing: 4510*1010*1550mm
|
||
|
Weight
|
850KG
|
900KG
|
||
|
Warranty
|
1 Year(Except Printhead And Ink System)
|
|
||
Detailed Image
Three pinch roller
Adjustable three pinch roller, make the paper stepping more smooth.
Hiwin guide rail
High quality liner mute guide roll, make the machine less noise when working.
Suction type platform
Better absorb the material onto the platform, protect nozzles from getting.
Dual take-up system
Dual take-up system, make the printer collect paper faster and have higer efficiency.
Anti-collision device
Ensure safety when the machine is working.
Integrated control panel
The operation interface is more concise.
Packing & Delivery
High quality Wooden Case
We use standard wooden case as outer packaging to keep your products less pumps in internationnal transportation.
