Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JMC
-
Model Number:
-

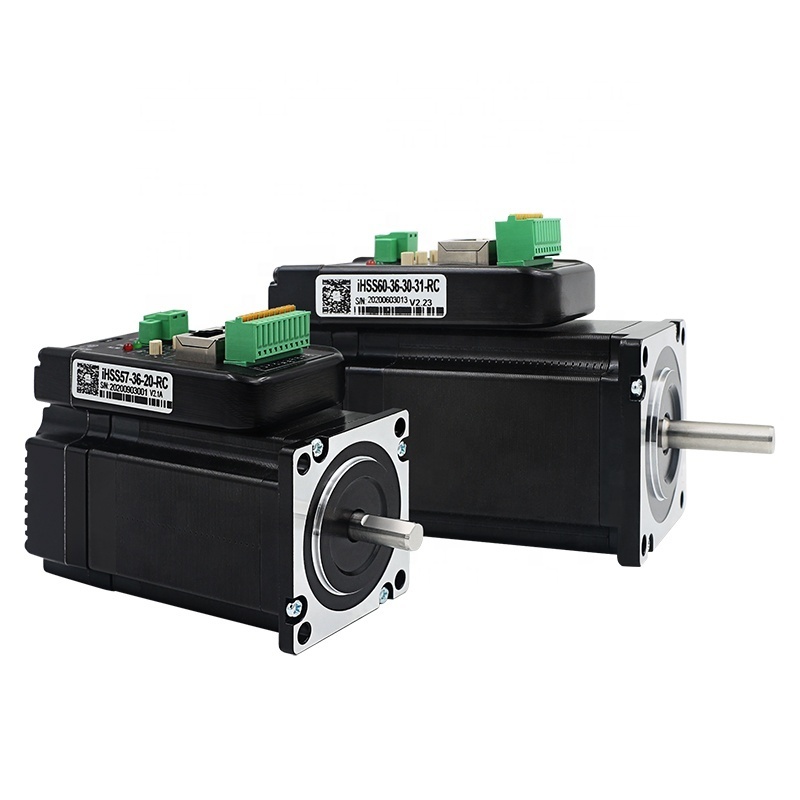

iHSS57-36-20-RC
-
Current / Phase:
-
5A
-
Rotor Inertia:
-
480g.cm²
-
Input Voltage:
-
20-50VDC Typical 36V
-
Shaft Size:
-
8*21mm
-
Motor Length:
-
127mm
-
Field-bus type:
-
RS485 + CAN
-
Communication protocol:
-
Modbus-RTU / CIA 301 CANopen
-
Encoder:
-
1000 lines
-
Shaft Type:
-
Flat(15mm)
-
Flange Size:
-
Nema23
-
Key words:
-
2Nm 36VDC integrated stepper drive motor
Quick Details
-
Phase:
-
2
-
Type:
-
Hybrid
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JMC
-
Model Number:
-
iHSS57-36-20-RC
-
Current / Phase:
-
5A
-
Rotor Inertia:
-
480g.cm²
-
Input Voltage:
-
20-50VDC Typical 36V
-
Shaft Size:
-
8*21mm
-
Motor Length:
-
127mm
-
Field-bus type:
-
RS485 + CAN
-
Communication protocol:
-
Modbus-RTU / CIA 301 CANopen
-
Encoder:
-
1000 lines
-
Shaft Type:
-
Flat(15mm)
-
Flange Size:
-
Nema23
-
Key words:
-
2Nm 36VDC integrated stepper drive motor
Details of Products
Torque curve
|
Communication Specifications
:
|
|
|
|
|||
|
Bus Type
|
RS485
|
CAN
|
EtherCAT
|
|||
|
Baud Rate
|
115200bps
|
1Mbps
|
100Mbps full duplex
|
|||
|
Transmission Distance
|
max 1km
|
max 1km
|
max interval 100m
|
|||
|
Number of Slaves
|
32
|
127
|
65535
|
|||
|
Network Topology
|
Daisy chain
|
Daisy chain
|
Daisy chain, Star chain, Tree chain
|
|||
|
Motion Control Mode
|
PP: Profile Position
PV: Profile Velocity HM: Home Mode |
PP: Profile Position
PV: Profile Velocity HM: Home |
CSP: Cycle Synchronous Position
CSV: Cycle Synchronous Velocity PP / PV / HM |
|||
|
Communication Protocol
|
Modbus-RTU
|
CIA 301 CANopen
|
CANopen over EtherCAT
|
|||
|
Device Protocol Standard: IEC61800-7 CiA402 Drive Profile
|
|
|
|
|||
Product packaging
Application
Recommend Products
Why Choose Us
Certificate
We have
CE Certificate/ RoHS Certificate /
Utility Model Patent Certificate/
Computer software copyright Registration Certificate
and so on
