Quick Details
-
Dimension(L*W*H):
-
4.0*1.55*2.35m
-
Weight:
-
4500 KG
-
Drilling Diameter:
-
110-202mm
-
Drilling Depth:
-
180m
-
Mobility:
-
yes
-
Product name:
-
air compressor water digging machine
-
Drilling depth:
-
180m
-
Drilling diameter:
-
110-202mm
-
Working pressure:
-
1.05-2.46Mpa
-
Air consumption:
-
16-30m3/min
-
Lift power:
-
5ton
-
torque:
-
4200N.m
-
Diesel engine:
-
YC4D80
-
Drilling method:
-
mud pump or air compressor
-
Drill rod caliber:
-
89/76mm*2m/pc
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kaishan
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
4.0*1.55*2.35m
-
Weight:
-
4500 KG
-
Drilling Diameter:
-
110-202mm
-
Drilling Depth:
-
180m
-
Mobility:
-
yes
-
Product name:
-
air compressor water digging machine
-
Drilling depth:
-
180m
-
Drilling diameter:
-
110-202mm
-
Working pressure:
-
1.05-2.46Mpa
-
Air consumption:
-
16-30m3/min
-
Lift power:
-
5ton
-
torque:
-
4200N.m
-
Diesel engine:
-
YC4D80
-
Drilling method:
-
mud pump or air compressor
-
Drill rod caliber:
-
89/76mm*2m/pc

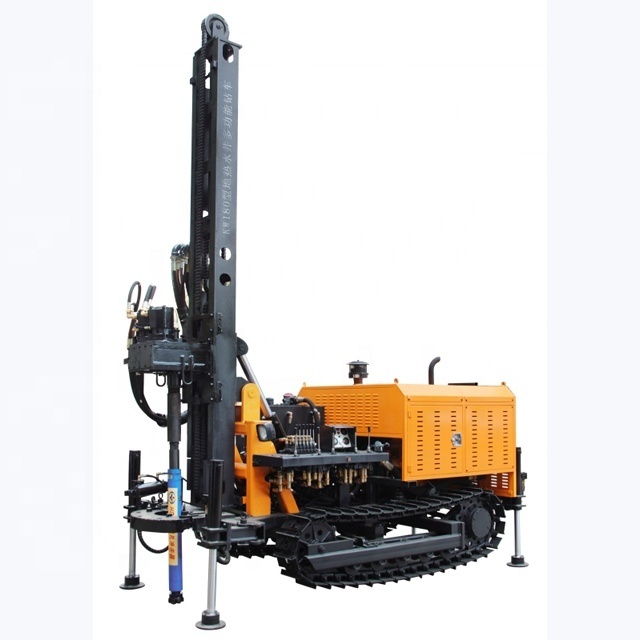

can work with air compressor and mud pump, KW180 180m Land borehole drilling machine to dig wells
Tecnical parameter of air compressor water digging machine
|
Model No |
KW180 air compressor water digging machine
|
|
Drilling Hole Diameter |
110-202mm |
|
Drilling Depth |
180m |
|
Working pressure |
10.5-24.6bar |
|
Air consumption |
16-30m³/min |
|
Propeller Shaft Stress |
0-2.5T |
|
Lifting power |
5T |
|
Pulling Force of Landing Leg Cylinder |
32T(4 legs) |
|
Stroke of Landing Leg Oil Cylinder |
0.4m |
|
Sliding Plate Stroke |
2380mm |
|
Slow Lifting Speed |
8m/min |
|
Slow Pushing Speed |
0-15m/min |
|
Fast Lifting Speed |
26m/min |
|
Fast Pushing Speed |
51m/min |
|
Rotation torque |
4200N.m |
|
Rotation Speed |
33-67r/min |
|
Lifting Power of Hoist |
1T |
|
Diesel Engine model |
Yuchai |
|
Engine Power |
58kw |
|
Travelling speed |
0-2.5 km/h |
|
Climb capacity |
20° |
|
Weight |
4500kg |
|
Dimension |
4700*1550*2350mm |
Application o f air compressor water digging machine
K W 180 is punctured equipment for light, efficient, versatile. it is mainly applied to bore hole drilling wells, geothermal air conditioning hole and other uses.
Advantage of air compressor water digging machine
introduction of
air compressor water digging machine
The rig can create jobs in different formations, the max. hole depth of up to 200 meters T he rig using a new
type of hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder pushing, factory engine to provide power for the hydraulic system, the two stage air filter and air compressor
air inlet design, prolong the service life of dieselengine. Convenient pump group design unique repair, reduce repair cost.
Hydraulic centralcontrol console, convenient operation. The rig adopts a special crawler chassis of engineering machinery,
strong crosscountry performance. Module design independently, can make the rig mounted on trucks, increase its mobility.
Positioner combined, can be adjusted according to the drill pipe and the impact of different types of replacing
the positioning disk, to ensure the positioning accuracy, reliable centering.
Suitable air compressor for air compressor water digging machine
