Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2170*830*1355mm
-
Machine Weight:
-
900 kg
-
Bucket capacity:
-
0.15m³
-
Product name:
-
Mini Skid Steer Loader
-
Drive type:
-
4x4 Wheel Drive
-
Color:
-
Customer's Requiement
-
Rated Load:
-
280kgs
-
Operating weight:
-
900kgs
-
Transmission:
-
Hydrostatic Transmission
-
Logo:
-
Customized Logo
-
Origin:
-
China Shangdong
-
Attachments:
-
Optioanl
-
speed:
-
0-6Km/h
Quick Details
-
Engine Brand:
-
RATO
-
Power:
-
17kw
-
Brand Name:
-
MAMMUT
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2170*830*1355mm
-
Machine Weight:
-
900 kg
-
Bucket capacity:
-
0.15m³
-
Product name:
-
Mini Skid Steer Loader
-
Drive type:
-
4x4 Wheel Drive
-
Color:
-
Customer's Requiement
-
Rated Load:
-
280kgs
-
Operating weight:
-
900kgs
-
Transmission:
-
Hydrostatic Transmission
-
Logo:
-
Customized Logo
-
Origin:
-
China Shangdong
-
Attachments:
-
Optioanl
-
speed:
-
0-6Km/h
Product Description

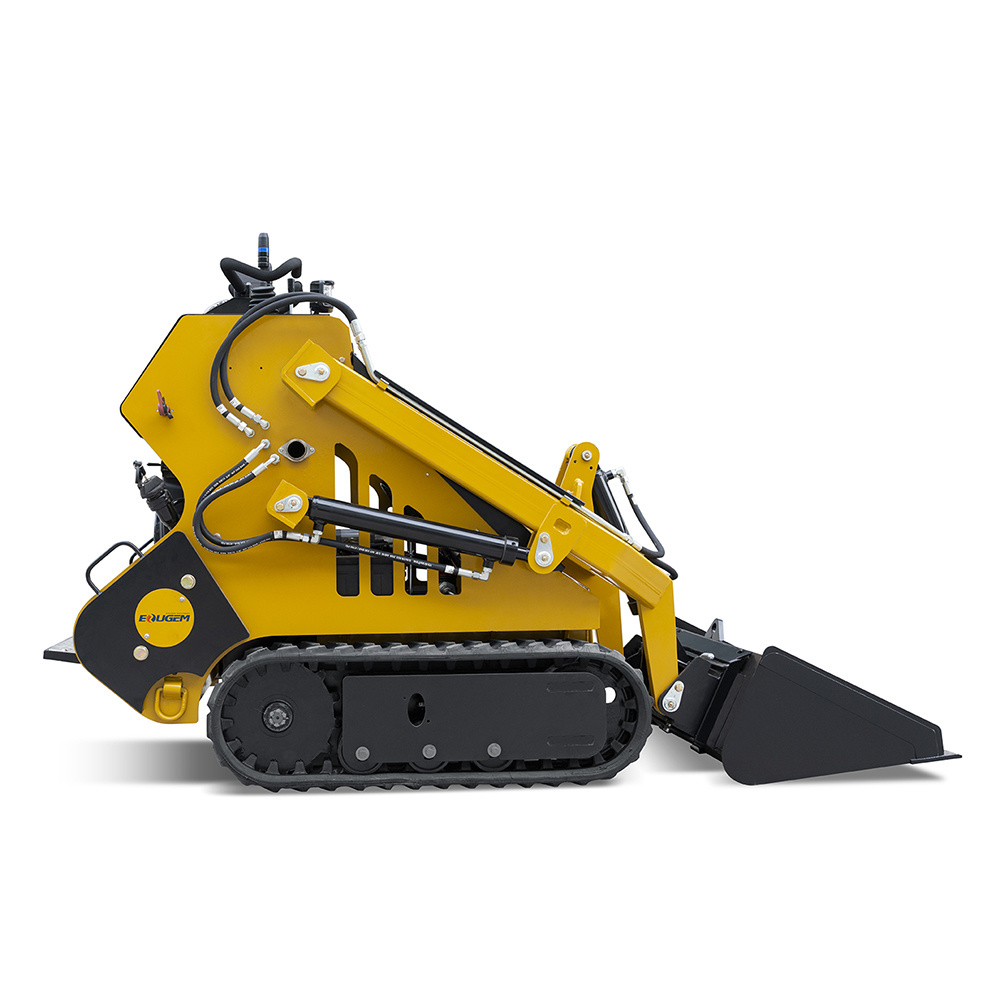

MAMMUT SK650 small crawler garden Stock Available Forest Mulcher small mini track skid steer articulated loader
Specification
|
Mini skid steer driving Type
|
Tracked skid steer TY-323T
|
|
|
|
Engine Model
|
Optional: Honda, Briggs&Stratton; Rato
|
|
|
|
Mini kid steer rated power
|
23hp/17kw
|
|
|
|
Rotating speed
|
3600rpm
|
|
|
|
Mini skid steer rated loading
|
280kgs/616lb
|
|
|
|
Skid steer Max. lift
|
350kgs/770lb
|
|
|
|
Bucket Capcity
|
0.15m³
|
|
|
|
Max. travel speed
|
6km/h; 3.7m/h
|
|
|
|
Skid steer operating weight
|
900kgs/1980lb
|
|
|
|
System pressure
|
17mpa
|
|
|
|
Skid steer arm lift time
|
4s
|
|
|
|
Skid steer tipping bucket time
|
1.2s
|
|
|
|
Landing time
|
3s
|
|
|
|
Fuel tank capacity
|
25L
|
|
|
|
Engine displacement
|
625ml
|
|
|
|
The Max. working height
|
|
2435mm/96ins
|
|
|
Max. hinge pin height
|
|
1897mm/75ins
|
|
|
Biggest unloading height
|
|
1498mm/59ins
|
|
|
Dumping reach
|
|
612mm/24ins
|
|
|
Rollback of bucket on the ground(°)
|
|
26
|
|
|
Rollback of bucket full height (°)
|
|
114
|
|
|
Angle of departure(°)
|
|
25
|
|
|
Dumping angle at Max. height(°)
|
|
33.7
|
|
|
Mini skid steer loader total height
|
|
1355mm/53ins
|
|
|
Ground clearance
|
|
92mm/3.6ins
|
|
|
Wheel base
|
|
720mm/28.3ins
|
|
|
Overall length with bucket
|
|
2170mm/85.4ins
|
|
|
Length without bucket
|
|
1740mm/68.5ins
|
|
|
Mini skid steer total width
|
|
830mm/32.6ins
|
|
