Quick Details
-
Model Number:
-
LW(500-6000W)
-
Output Frequency:
-
50Hz or 60Hz
-
Size:
-
605*218*179mm
-
Weight:
-
depends on capacity
-
phase/wave form:
-
Single phase/pure sine wave
-
Product name:
-

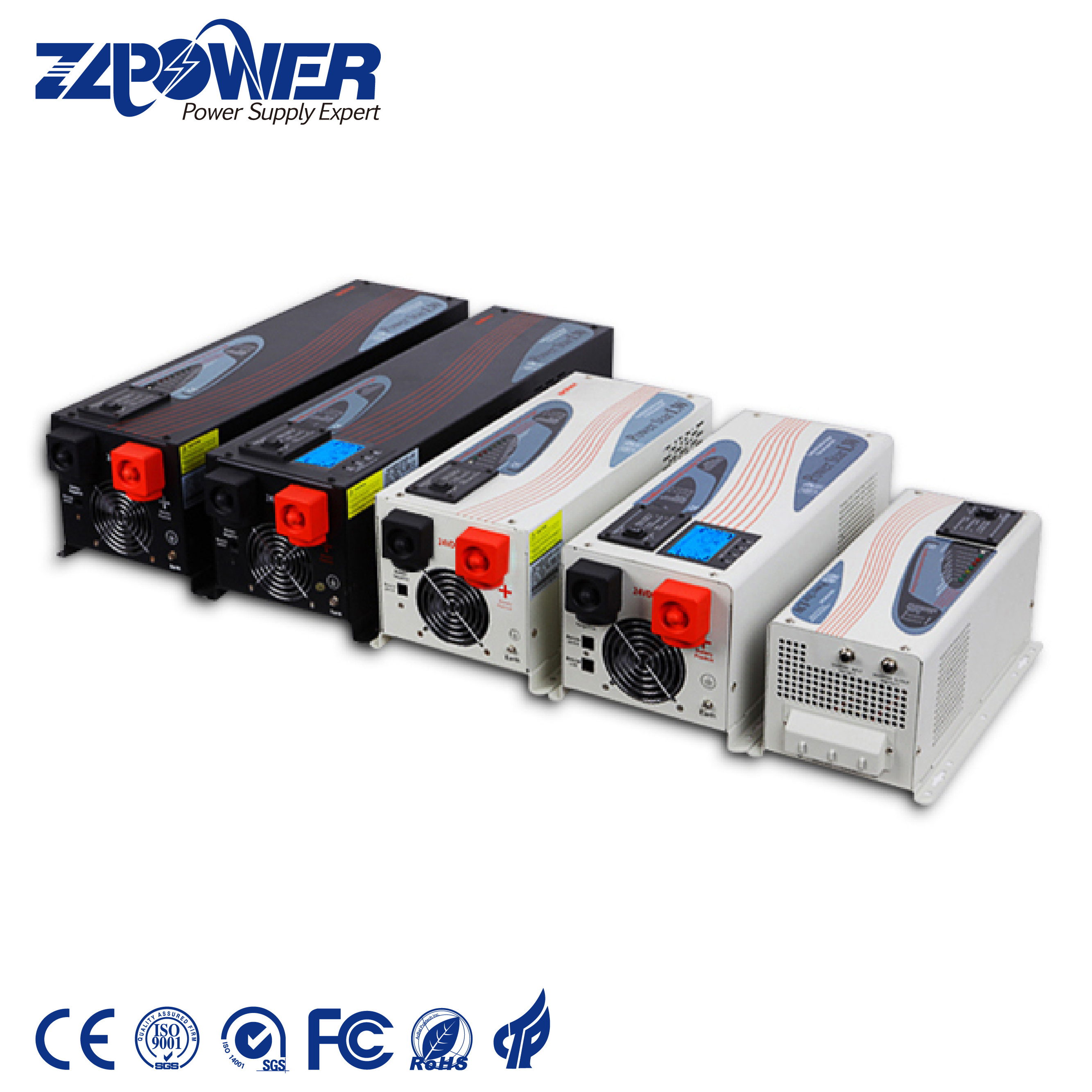

12v 500w small power Inverter for home use
-
Peak Power:
-
3 times as rated Power
-
Optional DC/AC priority:
-
Yes
-
Nominal voltage:
-
110V/120V,220V/230V/240V
-
Power factor:
-
0.9~1.0
-
Application:
-
All types of inductive and conductive loading
-
Optional:
-
DC priority DC restart,bypass,Off charger
-
Adjustable charging current by users:
-
Yes
-
Display:
-
LCD and LED
-
Certificate:
-
ISO9001, ISO14001, CE, UL, ETL
Quick Details
-
Output Current:
-
20/35/50/70/90amp
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZLpower
-
Model Number:
-
LW(500-6000W)
-
Output Frequency:
-
50Hz or 60Hz
-
Size:
-
605*218*179mm
-
Weight:
-
depends on capacity
-
phase/wave form:
-
Single phase/pure sine wave
-
Product name:
-
12v 500w small power Inverter for home use
-
Peak Power:
-
3 times as rated Power
-
Optional DC/AC priority:
-
Yes
-
Nominal voltage:
-
110V/120V,220V/230V/240V
-
Power factor:
-
0.9~1.0
-
Application:
-
All types of inductive and conductive loading
-
Optional:
-
DC priority DC restart,bypass,Off charger
-
Adjustable charging current by users:
-
Yes
-
Display:
-
LCD and LED
-
Certificate:
-
ISO9001, ISO14001, CE, UL, ETL
|
5kw 10kw 12kw 24v 48v 220v DC to AC felicity Xantrex low frequency pure sine wave inverter hybrid solar Charger Power Inverter |
Main Application
1> Transport equipments: military vehicle, car, Medical ambulance, ship, traffic lights etc.
2> Industrial equipments: solar energy system, wind power, metal halid lamp, high voltage sodium lamp, etc.
3> Office equipments, computer, printer, display apparatus, duplicator, scanners, digital camera, digital pickup camera, etc.
4> Home equipments: cleaner, fan, lighting, electric cutter, sewing machine, etc.
5> Kitchen appliances: microwave ovens, induction cooker, refrigerator, etc.
6> Electric tools: electric saw, driller, muller, sandblasting machine and punching machine, lawn mower, air compressor, etc.
7> Electronic field: TV, DVD, video games, power amplifiers, auto equipment, monitoring equipment, terminal equipment, server, intelligent platform, satellite communication equipment, etc.
Key Feature
1. Low voltage protection (safeguard the service life of the battery): When Battery voltage drop to lowest point of enactment, buzzer will give an alarm, and after 1 min the inverter will turn off automatically.
2. Over voltage protection: When over voltage inverter will turn off automatically.
3. Overload protection: Overload protection to prolong time.
4. Over heating protection: Temperature above 40 degree, the inverter turn on the cool fans automatically, if above 60 degree, the buzzer will keep on alarm for 1 min then shut off. If above 70 degree, inverter will shut down immediately.
5. Charger protection: Constant current and voltage charging.
Usage
Please assure the Inverter Power is switch off before connection of the battery. Please connect the anode to the red interlink, and cathode pole to the black interlink, be assure of the steady connection, then connect to the load, after all these done, press the turn on button to start inverter.
1. Do not connect the anode and cathode in wrong places.
2. Use in ventilated and dry environment.
3. When output in high voltage, please DO NOT operate with power on.
4. Turn on the Inverter when short circuit is not allowed.
Specification
| Model No. | LW1000 | LW1500 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| Nominal Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Input | |||||||
| Phase & waveform | Single phase & Pure Sine Wave | ||||||
| Voltage | 120VAC/230VAC | ||||||
| Acceptable Voltage | 194-243VAC\164-243VAC (wide mode) | ||||||
| Line Low Transfer | 85V±4%/184 (154 wide mode±4%) | ||||||
| Line Low Return | 95V±4%/194 (164 wide mode±4%) | ||||||
| Line high Transfer | 135V±4%/253±4% | ||||||
| Line high Return | 127V±4%/243±4% | ||||||
| Frequency | 50Hz or 60Hz (auto sensing) | ||||||
| Line Low Transfer | 47Hz for 50Hz, 57Hz for 60Hz | ||||||
| Line high Transfer | 55Hz for 50Hz, 65Hz for 60Hz | ||||||
| Output | |||||||
| Phase & waveform | Single phase & Pure Sine Wave (bypass mode sync to input) | ||||||
| Voltage | 120/220/230/240VAC (bypass mode sync to input) | ||||||
| Voltage Regulation | ±10%rms (bypass mode sync to input) | ||||||
| Frequency | 50Hz±0.3Hz (bypass mode sync to input) | ||||||
| Peak Power | 3 times of rating power | ||||||
| Short Circuit Protection | Yes, shutdown after 10ms | ||||||
| Power Factor | 0.9-1.0 | ||||||
| DC Input | |||||||
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | ||||
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | ||||||
| Low Battery Alarm | 10.5V for 12V, 21V for 24V, 42V for 48V | ||||||
| Low Battery Transfer | 10V for 12V, 20V for 24V, 40V for 48V | ||||||
| High Voltage Alarm | 16V for 12V, 32V for 24V, 64V for 48V | ||||||
| Max Charging Current | 35A/70A | ||||||
| Over Charge Voltage | 15.7V for 12V, 31.4V for 24V, 62.8V for 48V | ||||||
| Transfer Efficiency | |||||||
| Line Mode | >95% | ||||||
| Battery Mode | >88% | ||||||
| power saver | Available when the load is less than 25 Watts | ||||||
| Indicators | |||||||
| 7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode | ||||||
| (green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged | |||||||
| (green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded | |||||||
| shutdown(red lighting),LED7 Saving Mode(green lighting) | |||||||
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) | ||||||
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is | ||||||
| turning the inverter off. | |||||||
| Audible Alarm | Sounding when the heatsink's tem is over 105 °C and shutdown after 30 seconds. | ||||||
| Protections | low battery , over charging , over temp , over load | ||||||
| Communications | RS-232/USB(custom-made) | ||||||
| Environmental | |||||||
| Operating Environment | 0-40°C,0-90%RH(non-condensing) | ||||||
| Audible Noise | <60dB | ||||||
| Physical | |||||||
| Net Weight(KG) | 18 | 20 | 20 | 26 | 48 | 48 | 48 |
| Dimension, L X W X H(mm) | 446*218*179 | 605*218*179 | |||||
