Quick Details
-
Max Discharge current:
-
40
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
CHLNP
-
Model Number:
-
HSP1-C
-
Nominal Discharge current:
-
20
-
Product name:
-
AC spd
-
Color:
-
white
-
Certificate:
-
CE
-
Function:
-
used to AC system
-
amp:
-
40KA
-
volt:
-
AC420V
-
Cable Standard:
-
2.5mm2 4.0mm2 6.0mm2 10.0mm2
-
Up(KV):
-
3.8
-
Connecting system:
-
Crimp connection
-
Test voltage:
-
420V
Quick Details
-
Type:
-
T2
-
Number of Pole:
-
4
-
Rated Voltage:
-
420V
-
Max Discharge current:
-
40
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
CHLNP
-
Model Number:
-
HSP1-C
-
Nominal Discharge current:
-
20
-
Product name:
-
AC spd
-
Color:
-
white
-
Certificate:
-
CE
-
Function:
-
used to AC system
-
amp:
-
40KA
-
volt:
-
AC420V
-
Cable Standard:
-
2.5mm2 4.0mm2 6.0mm2 10.0mm2
-
Up(KV):
-
3.8
-
Connecting system:
-
Crimp connection
-
Test voltage:
-
420V

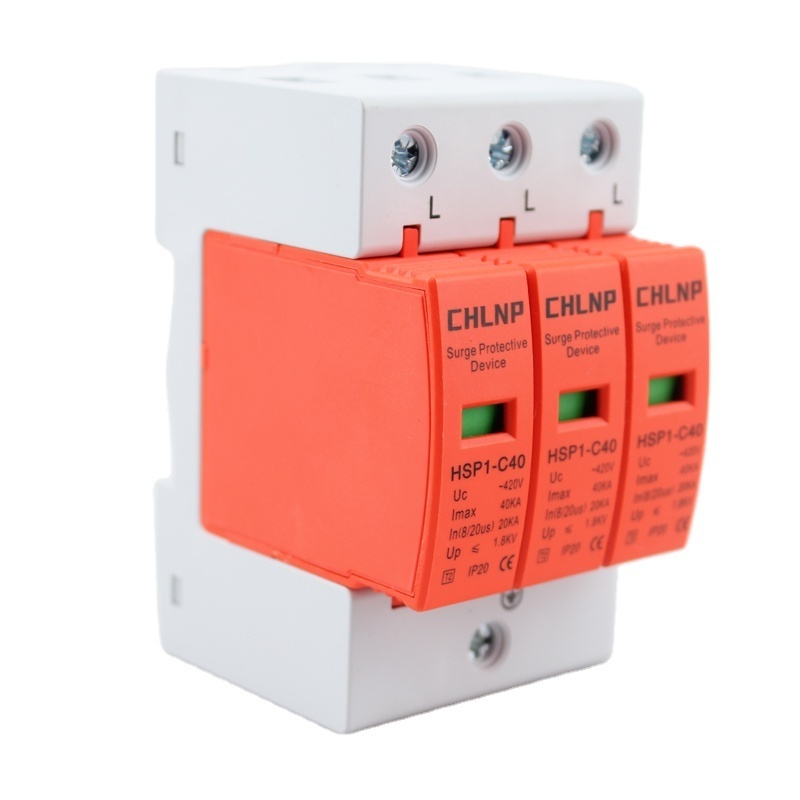

| TYPE | HSP1-C 20KA-40KA Surge protector | |||
| Protection Class | C | |||
| Working Voltage Un(AC) | 220V | 320V | 320V | 420V |
| Max. continuous operating voltage Uc(AC) | 275V | 380V | 420V | 480V |
| Volt protection level Up(V~)KV | ≤1.0 | ≤1..2 | ≤1..8 | ≤2.8 |
| Nominal Discharge Current (8/20μs) (In) | 20KA | |||
| Max. Discharge Current (8/20μs) (Imax.) | 40KA | |||
| Voltage Protection Level( Up) | ≤1.5KV | |||
| Test standard | IEC61643.1,GB18802.1 | |||
| Response Time | < 25ns | |||
| Leakage current | ≤20μA | |||
| Working Environment | Temperature -40°C +85°C;Relative humidity<95%; | |||
| Max connection line | 35mm2 hard wire/35mm2 strand wire copper line | |||
| Recommended connection line | 16mm2 hard wire/25mm2 strand wire copper line | |||
| indicate deterioration | Green: Normal; Red: Deterioration | |||
| Protection Mode | L-PE,N-PE (2P) | |||
| Material of Outer Shell | Flame retardant materials | |||
| installation | Standard rail 35mm | |||
| Weight | 0.56kg/4 pole | |||
| Material of outer covering | Burning proof nylon | |||
