Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
SHN
-
Brand Name:
-
AOKE
-
Weight (KG):
-
800 KG
-
Applicable Industries:
-
Metal and non-metal cutting and carving
-
Mode of Operation:
-
CO2 Laser
-
Configuration:
-
CO2 Laser tube
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Metal & Non-metal Materials
-
Working area:
-
6090/1390/1610/1325/2030/1530/OEM/ODM
-
Laser power:
-
60W/80W/100W/130W/150W/180w/300w/500/600w
-
Laser tube:
-
Reci Sealed CO2 Glass Tube
-
Keywords:
-
Laser Cuting Machine
-
Support material:
-
MDF Acrylic Wood Stainless Steel
-
Control system:
-
Ruida Control System
-
Color:
-
Customer Requirement
Quick Details
-
Engraving Area:
-
1300*900mm / Other
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-1200mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
SHN
-
Brand Name:
-
AOKE
-
Weight (KG):
-
800 KG
-
Applicable Industries:
-
Metal and non-metal cutting and carving
-
Mode of Operation:
-
CO2 Laser
-
Configuration:
-
CO2 Laser tube
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Metal & Non-metal Materials
-
Working area:
-
6090/1390/1610/1325/2030/1530/OEM/ODM
-
Laser power:
-
60W/80W/100W/130W/150W/180w/300w/500/600w
-
Laser tube:
-
Reci Sealed CO2 Glass Tube
-
Keywords:
-
Laser Cuting Machine
-
Support material:
-
MDF Acrylic Wood Stainless Steel
-
Control system:
-
Ruida Control System
-
Color:
-
Customer Requirement

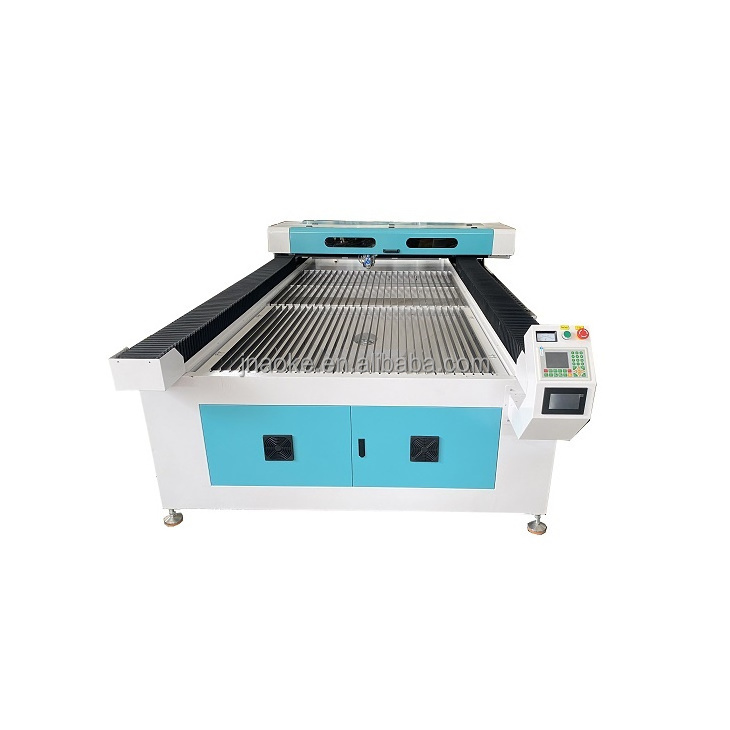

1300*2500 CO2 300W/500W/600w 1325 metal nonmetal Mixed Laser Cutting cutter Engraver Engraving Machine For Wood/Acrylic/Steel
| Product Name | 1300*2500 CO2 300W/500W/600w 1325 metal nonmetal Mixed Laser Cutting cutter Engraver Engraving Machine For Wood/Acrylic/Steel |
| Model No. | 3020 4040 4060 9060 1080 1310 1390 1610 1612 1325 1530 1630 |
| Processing area | 1400*900mm |
| Working table | honeycomb&Aluminum bar with up&down function |
| Laser power | 40W/50W/60W/80W/100W/120W/150W/180W/300w /500w /600w |
| control system | RUIDA (support custimization) |
| cooling mode | water cooling and protection system cw5200 cw6000 cw6200 |
| Cutting speed | 0-36000mm/min |
| Engraving speed | 0-64000mm/min |
| Graphic format | AI,CDR,BMP,JPG,DST,PLT,SXF,DWG,TIFF,PSD |
| Supported software | CorelDraw, Photoshop, AutoCAD etc. |
| Power supply | 220V/50HZ/110v 60hz |
| Laser tubes | reci laser tube / other |
| Driving system | leadshine 3 phase (6 wire, not voltage)Stepper |
| Posistion system | Red dot pointer |
| Interface | USB/Internet LAN |
| Operation | video and manual instruction or technical online instruction |
| Optional | Rotary attachment(rotary interface by default ) |
| Package | Wooden box |
Metal materials
1. Stainless steel: The carbon dioxide laser cutting machine can cut stainless steel above 0.5mm, with smooth cuts, no burrs, and high accuracy.
2. Carbon steel: The carbon dioxide laser cutting machine can cut carbon steel of 2mm or more, with a flat cut, no cracks, and narrow cutting seams.
2, Non metallic materials
1. Acrylic: The carbon dioxide laser cutting machine can cut various types of organic glass (acrylic), with smooth and burr free incisions.
2. Wood: Carbon dioxide laser cutting machine has obvious cutting effects on various types of wood and can achieve various complex design requirements.
3. Fabric: The carbon dioxide laser cutting machine can cut various types of fabrics without thermal shrinkage deformation, with smooth and burr free cuts, and no warped edges.
4. Leather: The carbon dioxide laser cutting machine can clearly cut and carve various types of leather, perfectly displaying various patterns and logos
Packaging : Standard plywood or carton packages to keep safe and clean.
Shipping:
After payment is completed, your order will be shipped within 3 days
We use express ups, dhl, ems, fedex, and the package will reach your hand in 3-12 business days.
