Quick Details
-
Voltage:
-
380V / As client's demand
-
Dimension(L*W*H):
-
As client's demand
-
Weight:
-
50 KG
-
Name:
-
linear screening machine for sunflower seed
-
Function:
-
Screening\separation\sieving
-
Material:
-
Carbon Steel/ Stainless Steel 304/316
-
Motor:
-
Two Vibration Motor
-
Feature:
-
Large Capacity
-
Layer(s):
-
1-4 Layers
-
Mesh size:
-
0-100 mesh
-
Advantage:
-
Self-cleaning Bouncing Ball
-
After sale service:
-
Video Technical Support
-
Applicable Material:
-
Nuts
Quick Details
-
Type:
-
LINEAR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CY-MACH
-
Voltage:
-
380V / As client's demand
-
Dimension(L*W*H):
-
As client's demand
-
Weight:
-
50 KG
-
Name:
-
linear screening machine for sunflower seed
-
Function:
-
Screening\separation\sieving
-
Material:
-
Carbon Steel/ Stainless Steel 304/316
-
Motor:
-
Two Vibration Motor
-
Feature:
-
Large Capacity
-
Layer(s):
-
1-4 Layers
-
Mesh size:
-
0-100 mesh
-
Advantage:
-
Self-cleaning Bouncing Ball
-
After sale service:
-
Video Technical Support
-
Applicable Material:
-
Nuts

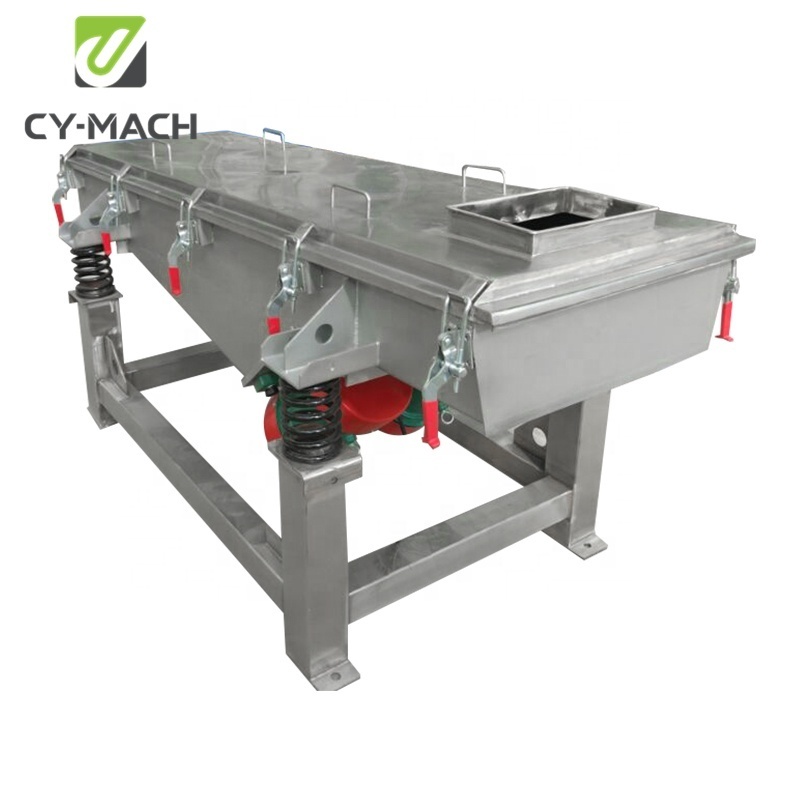

Factory Direct Sale Stainless Steel Line Vibration Sieve Machine for Black Soldier Fly
Linear vibration screen is a standard and universal screening equipment. The movement track of its screen box is close to straight line. Almost all the linear vibrating screen are consisted of the screen box, supporting or hanging device, driving unit, vibration isolation etc.
Linear vibration screen using a source of vibration excitation by vibrating motor, so that the sieve material being thrown up and forward for linear motion. There are several balls on the bottom of screen frame hit each other when vibrating, which can clean screen and avoid blocking effectively.
|
Model |
W*L (mm) |
Power(KW) |
Material size(mm) |
screen surface angle (°) |
Amplitude(mm) |
Layer |
|
DZSF-520 |
500*2000 |
2*(0.4-0.75) |
0.074-10 |
0°-7° |
4-10 |
1-5 |
|
DZSF-525 |
500*2500 |
|||||
|
DZSF-1020 |
1000*2000 |
|||||
|
DZSF-1025 |
1000*2500 |
2*(0.4-1.1) |
||||
|
DZSF-1030 |
1000*3000 |
2*(1.1-1.5) |
||||
|
DZSF-1040 |
1000*4000 |
|||||
|
DZSF-1235 |
1200*3500 |
2*(1.1-2.2) |
||||
|
DZSF-1250 |
1200*5000 |
|||||
|
DZSF-1535 |
1500*3500 |
|||||
|
DZSF-1560 |
1500*6000 |
2*(2.2-3.7) |
||||
|
DZSF-1845 |
1800*4500 |
0.074-15 |
||||
|
DZSF-2050 |
2000*5000 |
|||||
|
DZSF-2260 |
2200*6000 |
1.Chemical industry: Resin powder, palette, washing powder, paint, soda and citric acid, etc.
2.Abrasive material and ceramic industry: alumina, quartz, welding rod powder, aluminum, alloy powder, slurry, and spray soil grain etc.
3.Food industry: Sugar, salt, Alkali, milk powder, soybean milk,yeast, juice, soy sauce, vinegar etc.
4.Paper Making Industries: Coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5.Metallurgy and mining: Titanium oxide, zinc oxide, electromagnetism materials, metal materials, welding rod materials, etc.
