Quick Details
-
Table Travel (Z) (mm):
-
0 mm
-
Max. Table Load(kg):
-
100
-
Travel (W-axis) (mm):
-
0 mm
-
Range of Spindle Speed(r.p.m):
-
600 r.p.m
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
entercnc
-
Dimension(L*W*H):
-
1845*1712*2225mm
-
Weight (T):
-
2200 T
-
Product type:
-
T716
-
Boring range:
-
35-165mm
-
Spindle speed:
-
190-600r/min
-
Longitudinal stroke of worktable:
-
700mm
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
Quick Details
-
Table Size (mm):
-
1200*500
-
Table Travel (X) (mm):
-
900 mm
-
Table Travel (Y) (mm):
-
100 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Max. Table Load(kg):
-
100
-
Travel (W-axis) (mm):
-
0 mm
-
Range of Spindle Speed(r.p.m):
-
600 r.p.m
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
entercnc
-
Dimension(L*W*H):
-
1845*1712*2225mm
-
Weight (T):
-
2200 T
-
Product type:
-
T716
-
Boring range:
-
35-165mm
-
Spindle speed:
-
190-600r/min
-
Longitudinal stroke of worktable:
-
700mm
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
Product picture and size
Product Paramenters
|
Boring range
|
mm
|
35-165
|
|
Maximum movement of slide frame
|
mm
|
560
|
|
Distance from spindle center line to slide frame
|
mm
|
310
|
|
Spindle speed
|
r/min
|
190-600
（6level）
|
|
Feed rate per revolution of main engine
|
mm/r
|
0.05-0.2
|
|
Fast moving speed of sliding frame
|
mm/min
|
2500
|
|
Dimension of worktable （L x W）
|
mm
|
1200x500
|
|
Longitudinal travel of worktable
|
mm
|
700
|
|
Main motor
|
kw
|
2.2kw
1430rpm
|
|
Fast motor
|
kw
|
910rpm
0.75kw
|
|
Outline dimension （L x W x H）
|
mm
|
1840x1710x2220
|
|
Net weight/Gross weight
|
kg
|
2200/2500
|
|
Working accuracy
|
|
|
|
Surface roughness
|
um
|
Ra 1.6
|
|
Roundness
|
mm
|
0.008
|
|
Consistency of longitudinal section diameter
|
mm
|
0.018
|
Product details

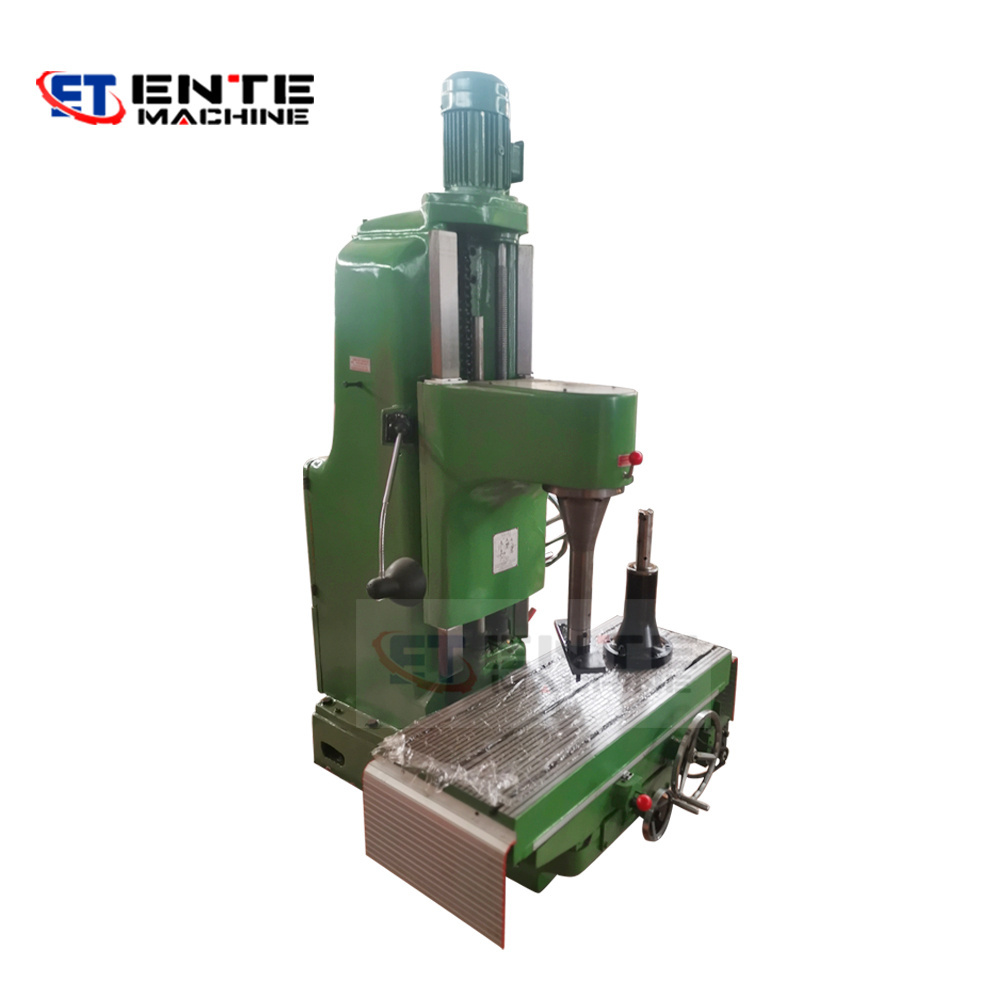

Product real map
