Quick Details
-
Application:
-
Cutting Die Making
-
Thickness:
-
2PT/0.71mm
-
Usage:
-
Die Making For Printing Press
-
Heigh:
-
23.8-30mm
-
Product Name:
-
2pt Steel Cutting Rule
-
Hardness:
-
Body 38 degree Edge 52 degree
-
Length:
-
1000mm
-
Packing:
-
Box Coil Packing
-
MOQ:
-
10 Rolls
-
Weight:
-
13.5kg
Quick Details
-
Model Number:
-
WT-CR
-
Place of Origin:
-
China
-
Brand Name:
-
WT
-
Application:
-
Cutting Die Making
-
Thickness:
-
2PT/0.71mm
-
Usage:
-
Die Making For Printing Press
-
Heigh:
-
23.8-30mm
-
Product Name:
-
2pt Steel Cutting Rule
-
Hardness:
-
Body 38 degree Edge 52 degree
-
Length:
-
1000mm
-
Packing:
-
Box Coil Packing
-
MOQ:
-
10 Rolls
-
Weight:
-
13.5kg

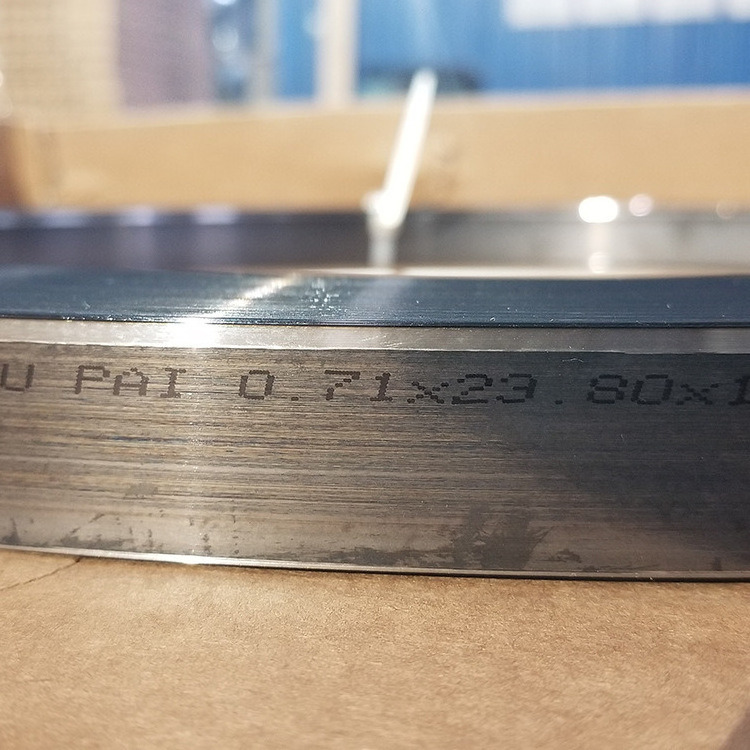

Cutting and Creasing Rule
1. Application
Steel cutting rule for die makers, die shops, die cutting, die making and carton box factory For Pintting Die Cutting Industry.
2. Types available
Cutting rule, creasing rule, perforating rules, wave rules, cut and creasing rule.
3. Specifications
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC) Edge Angle (42/52)
Shape-----center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)
Bevel: center bevel or long center bevel
Packing: Coil or strip packing for clockwise or anti clockwise
High frequency quenching
| Name | Thickness | Height/length (mm/mm) | Package (pcs/m/box) | Body hardness | Edge angle |
| Cutting rule | 0.45 | 23~23.80/1000 | 150 | 38HRC-54HRC | 42°\52° |
| 0.53 | 23~23.80/1000 | 125 | |||
| 0.71 | 23~23.80/1000 | 100 | |||
| 1.05 | 23~23.80/1000 | 70 | |||
| 1.42 | 23~23.80/1000 | 50 | |||
| Creasing rule | 0.53 | 22.00~23.80/1000 | 125 | 38HRC-54HRC | |
| 0.71 | 22~23.8/1000 | 100 | |||
| 1.05 | 22~23.8/1000 | 70 | |||
| 1.42 | 22~23.8/1000 | 50 | |||
| Wave rule | 0.71 | 23~23.80/1000 | 100 | 38HRC-54HRC | |
| Perforating rule | 0.71 | 23~23.80/10001*1~10*10 | 100 | 38HRC-54HRC | 42°\52° |
| 1.05 | 23~23.80/10001*1~10*10 | 70 |
4. Application
Samples
5.
Bended Shapes samples
6. Stuitable Machines & Related Product
Auto Steel Rule Bending Machine & Manual Bending Machines For Die Making
7. Our Services
1. QC System:100% inspection before shipment.
2. Free Samples Available Before Order
3. SeaWorthy Packaging: Standard package / Pallet or container / As per customized specifications
4. Customer Design Hardness thickness Height Of Cutting Rule is Available
5. OEM Agent Mark Logo Printted in Rule is acceptable.
8. Shipment & Packing
DHL, UPS, EMS, TNT, Fedex, sea transportation are available
9. Trade terms
EXW, FOB, CIF preferred
