- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
WTB04
-
Magnification:
-
25x
-
magnification:
-
25x
-
objective diameter:
-
100
-
exit pupil:
-
5mm
-
size:
-
1526*300*600mm
-
weight:
-
55KG
-
waterproof:
-
YES
-
eye-relief:
-
21.5mm
-
resolution:
-
2.4
-
Advantage1:
-
factory sales directly
-
Advantage2:
-
our factory was engaged in this industry more than 19 years
Quick Details
-
Certification:
-
Reach
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JAXY
-
Model Number:
-
WTB04
-
Magnification:
-
25x
-
magnification:
-
25x
-
objective diameter:
-
100
-
exit pupil:
-
5mm
-
size:
-
1526*300*600mm
-
weight:
-
55KG
-
waterproof:
-
YES
-
eye-relief:
-
21.5mm
-
resolution:
-
2.4
-
Advantage1:
-
factory sales directly
-
Advantage2:
-
our factory was engaged in this industry more than 19 years
Product Description
Specification
|
item
|
value
|
|
Certification
|
Reach
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
JAXY
|
|
Model Number
|
WTB04
|
|
magnification
|
20x
|
|
objective diameter
|
100
|
|
exit pupil
|
5mm
|
|
size
|
1526*300*600mm
|
|
weight
|
55KG
|
|
waterproof
|
YES
|
|
eye-relief
|
21.5mm
|
|
resolution
|
2.4
|
|
Advantage1
|
factory sales directly
|
|
Advantage2
|
our factory was engaged in this industry more than 19 years
|
Packing & Delivery

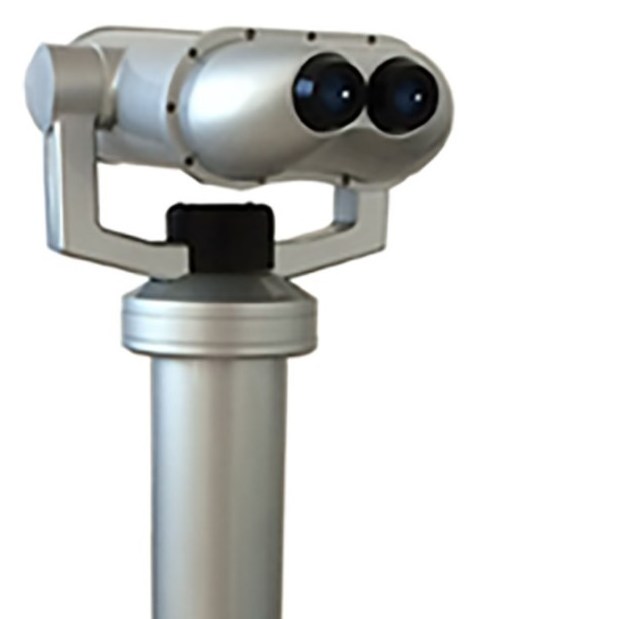

High level Coin Operated Binocular, coin operated telescope, coin binoculars, coin telescope
Specification for coin operated binoculars
coin operate telescope
Top end Prism glass, BaK4 High clear view
coin operated,coin control binoculars
The viewing telescope of 10 power and 100mm
Fully waterproof /outdoor
Magnification:20X
Field of view:3 dgrees
Objective aperture:100mm
Exit pupil diameter:5mm
Eye Relief:21.5mm
Resoulution:below 2.4
Weight:36KGS
Search swivel angle:300 degrees
Surveying angle:45 degrees
Elevation:65 degrees
Binocular Size:1526*300*600mm
Prism Material :K9
Optical Coating :Broadband or Normal
Body material:ADC12 aluminum alloy
2. Mechanical Characteristics
- Azimuth rang
0~ 300°
- The elevation angle
up 65 °,down 45 °
- Interpupillary range
58~72mm
- Overall size(the binoculars)
550(L)x 250(W)x240(H)mm
- Height of complete product
1.5m
- Weight of complete product
42kg
- Environmental Temperature
-20°C~+70°C
- Waterproof
Q/KYD01-2010
3.Electrical Characteristics
- Power supply two options: DC8.2V,1800mAH lithiumbattery
- Viewing time : You can set easily any time you want(10s-3600s)
- Under voltage display of DC power supply: Displayed by a DC voltmeter. When DC power supply is used,if the voltage is below
10.5v, the battery must be replaced.
- Different metal coins can be identified: when the coin isdifferent from the specified coin, the diaphragm can not be opened and
the wrong cion will be rejected.
- Requirement for the specified coin:Diameter: 18mm~31mm Thickness: 1.2mm ~ 3.0mm
- Remember coin type : ≤45 type
- Power consumption: ≤ 50 Thousand pieces
5.Packaging Details
Binouclars
60X22X14 CM
Weight
42 kg
Body
110X21X21CM
Weight
18 kg
Base
46X46X9 CM
Weight
12 kg
Specification for coin operated binoculars
coin operate telescope
Top end Prism glass, BaK4 High clear view
coin operated,coin control binoculars
The viewing telescope of 10 power and 100mm
Fully waterproof /outdoor
Magnification:20X
Field of view:3 dgrees
Objective aperture:100mm
Exit pupil diameter:5mm
Eye Relief:21.5mm
Resoulution:below 2.4
Weight:36KGS
Search swivel angle:300 degrees
Surveying angle:45 degrees
Elevation:65 degrees
Binocular Size:1526*300*600mm
Prism Material :K9
Optical Coating :Broadband or Normal
Body material:ADC12 aluminum alloy
2. Mechanical Characteristics
- Azimuth rang
0~ 300°
- The elevation angle
up 65 °,down 45 °
- Interpupillary range
58~72mm
- Overall size(the binoculars)
550(L)x 250(W)x240(H)mm
- Height of complete product
1.5m
- Weight of complete product
42kg
- Environmental Temperature
-20°C~+70°C
- Waterproof
Q/KYD01-2010
3.Electrical Characteristics
- Power supply two options: DC8.2V,1800mAH lithiumbattery
- Viewing time : You can set easily any time you want(10s-3600s)
- Under voltage display of DC power supply: Displayed by a DC voltmeter. When DC power supply is used,if the voltage is below
10.5v, the battery must be replaced.
- Different metal coins can be identified: when the coin isdifferent from the specified coin, the diaphragm can not be opened and
the wrong cion will be rejected.
- Requirement for the specified coin:Diameter: 18mm~31mm Thickness: 1.2mm ~ 3.0mm
- Remember coin type : ≤45 type
- Power consumption: ≤ 50 Thousand pieces
5.Packaging Details
Binouclars
60X22X14 CM
Weight
42 kg
Body
110X21X21CM
Weight
18 kg
Base
46X46X9 CM
Weight
12 kg
