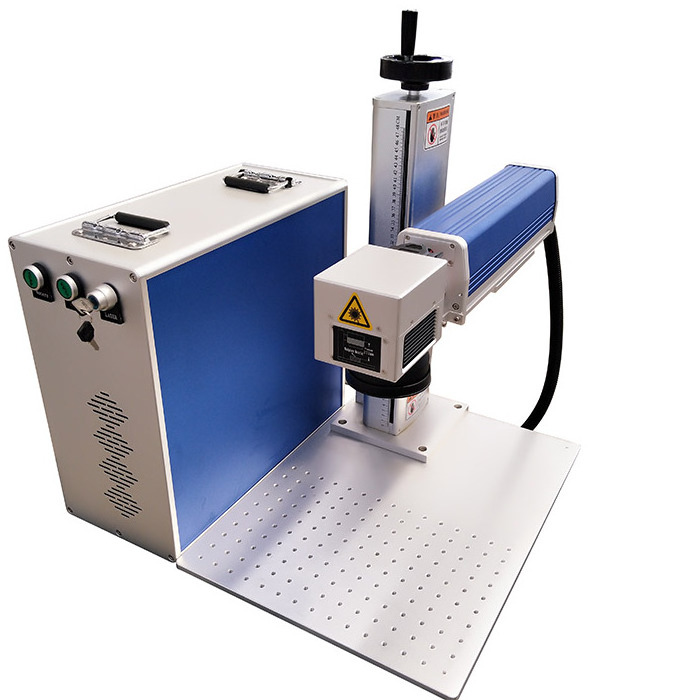

In Stock 20w 30w 50w 100w Desktop Portable Split Fiber Laser Marking Machine for Jewelry Inside Ring Laser Engraving

In Stock 20w 30w 50w 100w Desktop Portable Split Fiber Laser Marking Machine for Jewelry Inside Ring Laser Engraving

FOB Reference Price: Get Latest Price

≥1 Sets

US $1360

≥4 Sets

US $1160

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: MORITA

Marking Head Brand:: SINO-GALVO

Weight (KG):: 60 KG

Core Components:: Laser Source

Product name:: Fiber Laser Marker

Laser Power:: 20w 30w 60w 80w 100w

Marking material:: SS CS Aluminum Metal Plastic

Laser wavelength:: 1064nm

Marking Speed:: 0-7000mm/s

Working area:: 110*110mm

Marking Depth:: 0-1mm

Fiber laser source lifespan:: over 100000 Hours

Color:: MOPA colors

Beam Quality:: M2 <1.5

Quick Details

Working Accuracy:: 0.001mm

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Laser Type:: Fiber Laser

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: Shandong, China

Brand Name:: MORITA

Marking Head Brand:: SINO-GALVO

Weight (KG):: 60 KG

Core Components:: Laser Source

Product name:: Fiber Laser Marker

Laser Power:: 20w 30w 60w 80w 100w

Marking material:: SS CS Aluminum Metal Plastic

Laser wavelength:: 1064nm

Marking Speed:: 0-7000mm/s

Working area:: 110*110mm

Marking Depth:: 0-1mm

Fiber laser source lifespan:: over 100000 Hours

Color:: MOPA colors

Beam Quality:: M2 <1.5

PRODUCT SPECIFICATIONS

Model

ST-F20

ST-F30

ST-F50

ST-F60

ST-F70

ST-F80

ST-F100

Average Output Power

20W

30W

50W

60W

70W

80W

100W

Application

MOPA Fiber Laser Marking

Laser Source Brand

JPT

Software

EZCAD (JCZ)

Laser Life

100000+ hours

Working Format

50*50/110*110/150*150/200*200/260*260/300*300mm, etc.

Working Accuracy

±0.001mm

Laser Wavelength

1064nm

Working Power Supply

220V/50HZ or 110V/60HZ

Working Temperate

-10℃~40℃ / 14℉~104℉

Cooling method

Air cooled

Machine Cabinet Size

210*450*440mm

Mass Weight

70KG

Appication Material

Metal: Gold, Silver, Brass, Copper, Carbon Steel, Stainless Steel, Aluminum, Anodized Aluminum, Titanium, Chrome

Hard Plastic: PF, PU, EP, UPR, FF, SI, AN

Optional

Rotary Axis / Lifting Table / Auto Lifting Table / Autofocus

FEATURES AT A GLANCE

· MOPA Laser Marking Machine
* It's used for gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials.
* Especially it can laser marking colors on stainless steel , marking black on aluminum .

Pls refer to the right side →→→

* It has been widely used in aerospace, shipbuilding, instrumentation, mechanical, electrical products, automobiles and others.

Front elevation

Behind elevation

Standards:

Advanced digital high speed scan galvanometer and module design.

Aluminum working table.

110*110mm / 150*150mm / 200*200mm / 300*300mm

Lifting Handle , more stable, more direct.

Two high speed motor control reflect lens inside the head, which give the machine max 7000mm/s marking speed.

Supply different brands and mode, also could increase autofocus type, and the 3D type.

It contains Split power switch for Laser Source, Split power switch for Scan Head, etc.

Humanized control system, easy to operate, safe and convenient, dust proof design.

This is electrical Cabinet.

The core part is laser source, there are Raycus/MAX/IPG/JPT brands for choice.

The higher power, the faster marking speed.

Optional:

Autofocus

In industries such as molds, hardware, and electronic accessories, the shape and size of products change frequently.

If we use this function, it will save a lot of manpower and time, and reduce the time of focusing, which is deeply loved by customers.

Electrical Lifting

It is a electrical lifting type, which is equipped with a stepper motor, it can control the lens up and down.

There is a small button on the lifting column, it's easy to control this part.

Dust Cover

Don't expose the laser outside.

Effectively prevent dust and toxic fumes from causing damage to the human body and the laser head.

Security and Serious.

Movable Working Table

Standard working size is 100*100mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm.

We can adjust X, Y axis to enlarge the working size, such as 400*400mm, 500*500mm.

Movable Lifting Platform

There are aluminum single platform, double platforms, triple platforms, etc.

One of portable type. We could customize the special platform.

Rotation Axis

The standard diameter of rotary is 50mm, 80mm, 100mm, 150mm, etc.

We have also special rotary for mass of production of pens, bulb, screws and so on.

We also support customization.

Sample Display

Packing & Delivery

From Customers

Our factory

· With 15 years experience, MORITA LASER has established a complete system for the development and manufacture of laser marking, cutting, engraving and welding technologies.

· Main products: fiber laser cutting machine, fiber laser marking machine, crystal engraving machine, CO2 laser marking machine, UV laser marking machine, laser engraving machine, laser cutting machine, CNC engraving machine, CNC processing center, stone engraving machine and other products.

As a responsible company, we are dedicated to develop new techniques out of concern of environmental protection. Disposable products are the first priority. In the near future, we will launch more and more environmental friendly products.

FAQ

Q1: How can we guarantee quality?
A1: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q2: What can you buy from us?
A2: Laser marking machine, Fiber Laser cutting machine, Laser engraving machine, Laser welding machine, 3d engraving machine

Q3: How long does it take to learn the laser?

A3: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.

Q4: What should I do when something goes wrong with the laser?

A4: We offer a two-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.

Q5: Why should you buy from us not from other suppliers?
A5: We focus on laser research and development for 15 years, and our products are exported to more than 100 countries and regions. We have a strong after-sales service team to escort you.
