- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Alixd
-
Dimension(L*W*H):
-
350mmx2000mm
-
Weight:
-
3 KG
-
Core Components:
-
heating elements and silicone
-
Size:
-
350x2000mm, or custom
-
Wattage:
-
1750W or Custom
-
Thickness:
-
1.5mm(standard) or custom
-
Supply mode:
-
Manufacturers
-
Max temperature:
-
150C
-
Compressive strength:
-
2500V/5S
-
waterproof:
-
IP65, or customized IP68
-
Product name:
-
silicone rubber curing heatpad
-
Power deviation:
-
5%
Quick Details
-
Type:
-
Electric Heater
-
Power Source:
-
Electric
-
Voltage:
-
12/24/110/220/380/230V, Custom, 240V or Custom
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Alixd
-
Dimension(L*W*H):
-
350mmx2000mm
-
Weight:
-
3 KG
-
Core Components:
-
heating elements and silicone
-
Size:
-
350x2000mm, or custom
-
Wattage:
-
1750W or Custom
-
Thickness:
-
1.5mm(standard) or custom
-
Supply mode:
-
Manufacturers
-
Max temperature:
-
150C
-
Compressive strength:
-
2500V/5S
-
waterproof:
-
IP65, or customized IP68
-
Product name:
-
silicone rubber curing heatpad
-
Power deviation:
-
5%

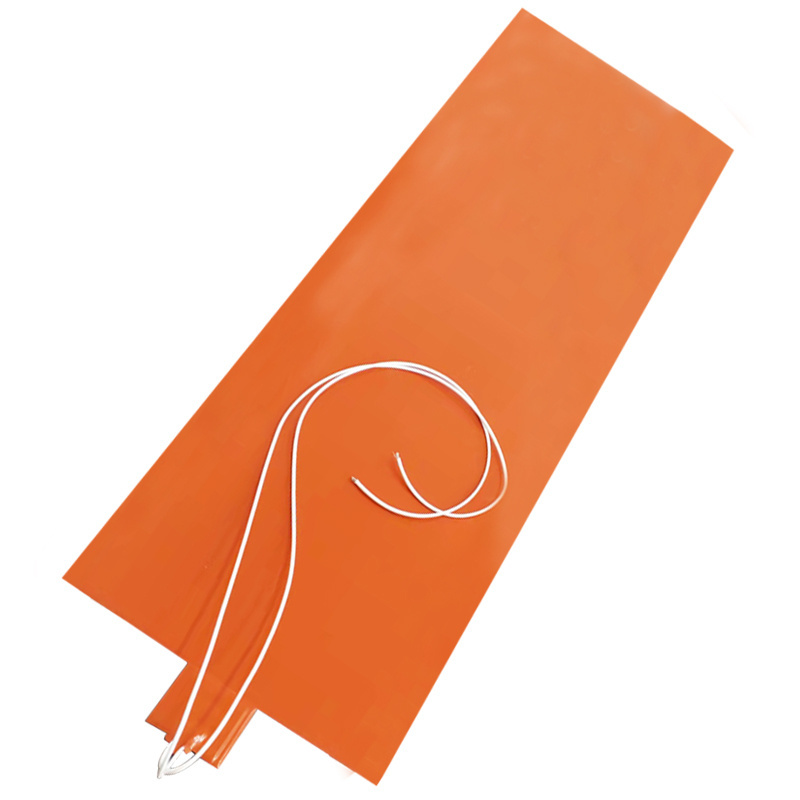

240V 350x2000mm silicone rubber curing heatpad for Snowboard Ski Press
Features:
1. Heating fast and long time using.
2. Flexible and customization.
3. Waterproof and non-toxic(Waterproof grad:IP68).
4. Custom Size .Voltage.Watt.Shape.
5. We can provide free design.
6. We carry many other silicone pad heaters in different sizes and watts.
| Specifications | |
| Main Material | Silicone(V0,V1) and imported silicone V0 options |
| Temperature Rating | 482°F(250°C)maximum operating |
| Size/Shape Limitations | Maximum width of 48 inches, no maximum length |
| Thickness | normally 0.03 inch/ 0.75mm (Single-Ply),0.06 inch / 1.5mm(Dual-Ply),support custom |
| Voltage | Any AC or DC (3V-660V), or 3phase |
| Power density | Normal 0.03-0.8watts per square centimeter,maximum 3W per square centimeter |
| Power lead wire | Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire options,usually 100cm length or as requested |
| Attachment | Hooks, lacing eyelets, Temperature control(fixed thermostat, adjustable thermostat),temperature sensor(NTC thermistor, pt100, thermocouple,etc) |
| Description | 1. Silicon Rubber Heating Pad/Sheet has advantages of thinness, lightness, sticky and flexibility. |
| 2. It can improve heat transfer, accelerate warming and decrease power under the process of operation. | |
|
3. They are heating fast and thermal conversion efficiency high. |
|
Silicone rubber heater can be made with etched foil heating elements or wire wound heating elements
