Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
X96
-
Model Number:
-
X96S
-
Features:
-
4K Media Player Smart TV Stick
-
Type:
-
4K Media Player Smart TV Stick
-
GPU:
-
ARM Dvalin MP2 GPU
-
Memory:
-
LowPower DDR4:4GB(Option: 1GB / 2GB / 3GB)
-
Flash:
-
eMMC:32GB(Option: 8GB / 16GB / 64GB )
-
BT:
-
BT 4.2
-
HD output:
-
4K
-
DLNA:
-
Support DLNA function
-
Warranty:
-
2 Years
-
Language:
-
Support Multi Languages
Quick Details
-
Processor Core:
-
Quad Core
-
Support Resolution:
-
4k
-
WiFi:
-
802.11n 2.4G/5GHz
-
Place of Origin:
-
China
-
Brand Name:
-
X96
-
Model Number:
-
X96S
-
Features:
-
4K Media Player Smart TV Stick
-
Type:
-
4K Media Player Smart TV Stick
-
GPU:
-
ARM Dvalin MP2 GPU
-
Memory:
-
LowPower DDR4:4GB(Option: 1GB / 2GB / 3GB)
-
Flash:
-
eMMC:32GB(Option: 8GB / 16GB / 64GB )
-
BT:
-
BT 4.2
-
HD output:
-
4K
-
DLNA:
-
Support DLNA function
-
Warranty:
-
2 Years
-
Language:
-
Support Multi Languages

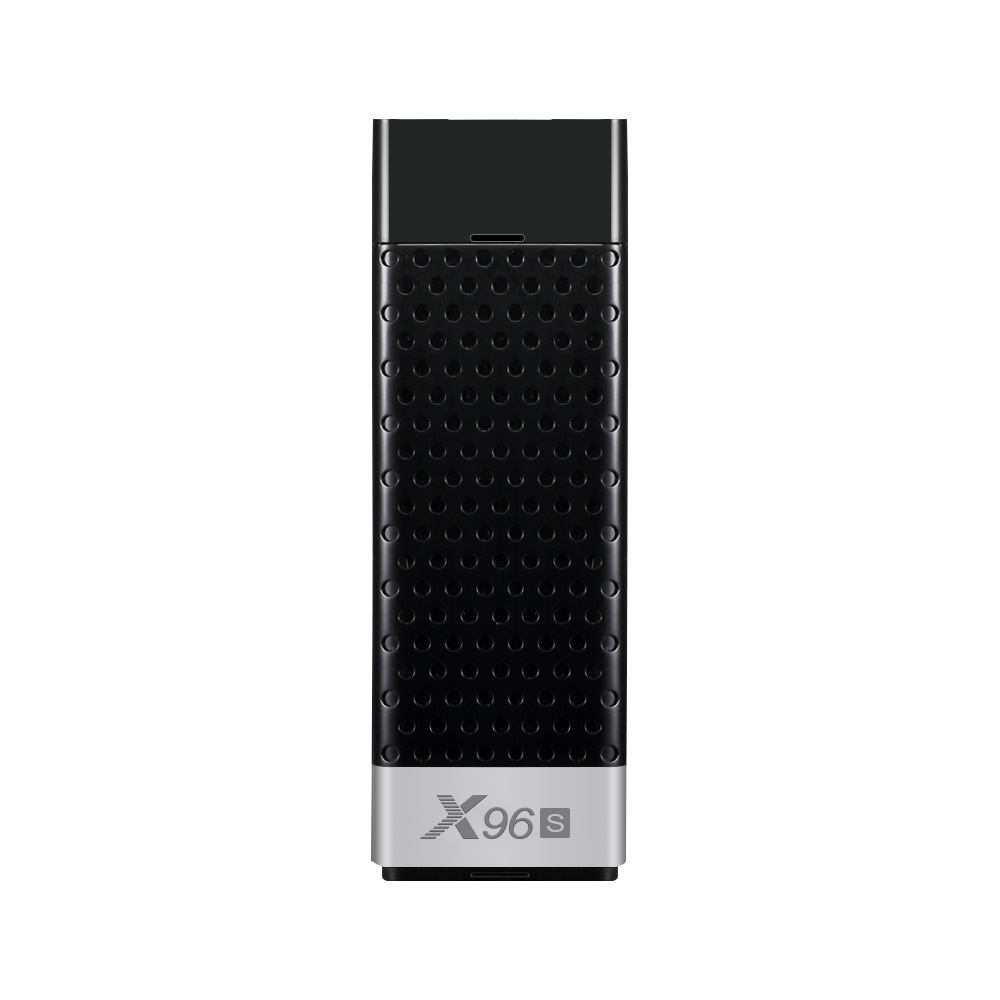

Android 9.0 TV Box X96S Amlogic S905Y2 DDR3 4GB 32GB X96 Mini PC 5G WiFi BT 4.2 TV Dongle 4K Media Player Smart TV Stick
Product Description
Features
-Amlogic S905Y2Quad Core ARM Cortex A53 up to 2GHz
- ARM Dvalin MP2 GPU
-Android 9.0 OS
- DDR32GB/4GB, eMMC Flash 16GB/32GB
- Support HDR, 4K UHD, Airplay, Miracast
-Support HD 2.1, USB3.0
- Support 2.4GHz Wifi/2.4G+5.8GHz Dual Wifi, BT 4.2
- Support Firmware Online Upgrade
Note There are two options for X96S tv stick:
A: 2GB+16GB+2.4G Wifi+BT4.2
B: 4GB+32GB+2.4G&5GHz Dual Wifi+BT4.2
TV Stick X96S Specification
| CPU | Amlogic S905Y2 Quad Core ARM Cortex A53 @ 2GHz | |||||||
| GPU | ARM Dvalin MP2 GPU | |||||||
| Memory | LowPower DDR4:4GB(Option: 1GB / 2GB / 3GB) | |||||||
| Flash | eMMC:32GB(Option: 8GB / 16GB / 64GB ) | |||||||
| WiFi | IEEE 802.11 a/b/g/n/ac ; 2.4G / 5.8G | |||||||
| BT | BT 4.2 | |||||||
| Moudle | Plastic : Black Color | |||||||
| I/O | 1*H,DMI | H,DMI 2.1 ,Support H,DMI CEC, Dynamic HDR and HDCP 2.2,4Kx2K @ 75 max resolution output. | ||||||
| 1*USB,1*Micro USB | 1* USB 3.0 ;1*Micro USB 2.0 | |||||||
| 1*IR | Remote Reciver Connect | |||||||
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |||||||
| Power | DC 5V/1A;LED indicator,Working:Blue; | |||||||
| Software | ||||||||
| OS | Android 9.0 | |||||||
| Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders | |||||||
| Support multi-video decoder up to 4Kx2K @ 60fps+1x1080P @ 60fps | ||||||||
| Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding | ||||||||
| Video/Picture Decoding | ||||||||
| - VP9 Profile-2 up to 4Kx2K @ 60fps | ||||||||
| - H.265 HEVC MP-10 @ L5.1 up to 4Kx2K @ 60fps | ||||||||
| - AVS2-P2 Profile up to 4Kx2K @ 60fps | ||||||||
| - H.264 AVC HP @ L5.1 up to 4Kx2K @ 30fps | ||||||||
| - H.264 MVC up to 1080P @ 60fps | ||||||||
| - MPEG-4 ASP @ L5 up to 1080P @ 60fps (ISO-14496) | ||||||||
| - WMV/VC-1 SP/MP/AP up to 1080P @ 60fps | ||||||||
| - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P @ 60fps | ||||||||
| - MPEG-2 MP/HL up to 1080P @ 60fps (ISO-13818) | ||||||||
| - MPEG-1 MP/HL up to 1080P @ 60fps (ISO-11172) | ||||||||
| - RealVideo 8/9/10 up to 1080P @ 60fps | ||||||||
| - Multiple language and multiple format sub-title video support | ||||||||
| - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||||||
| - Supports JPEG thumbnail, scaling, rotation and transition effects | ||||||||
| - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | ||||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing | |||||||
| Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output | ||||||||
| built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch | ||||||||
| Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs | ||||||||
| Built-in stereo audio DAC | ||||||||
| Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM | ||||||||
| Image | HD JPEG,BMP,GIF,PNG,TIF | |||||||
| Language | English French German Spanish Italian etc multilateral languages | |||||||
| Appliactions | ||||||||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |||||||
| Apps | Apps download freely form android market,amazon app store etc. | |||||||
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . | |||||||
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |||||||
| Others | Support Email,office suit etc. | |||||||
| Support DLNA function | ||||||||
| Support 2.4G wireless mouse/keyboard | ||||||||
| Accessories: | ||||||||
| 1,HDMI cable *1 | ||||||||
| 2,IR Line *1 | ||||||||
| 3,IR Remote *1 | ||||||||
| 4,Micro USB Line *1 | ||||||||
| 5,USB adapter *1 | ||||||||
| 6,User Manual *1 | ||||||||
