Quick Details
-
Brand Name:
-
Huan Machinery
-
Year:
-
2020
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
6.8*3.3*5.3m
-
Hollow part volume:
-
160L
-
Screw L/D Ratio:
-
28
-
Screw diameter (mm):
-
100 mm
-
Screw Heating Power(kW):
-
25.1 kW
-
Extruder Motor Power(kW):
-
55 kW
-
Mold Platen Size(Width)(mm):
-
1100 mm
-
Mold Platen Size(Height)(mm):
-
1400 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1.6 m³/min
-
Die Head Heating Power(kW):
-
30 kW
-
Accumulator Capacity(L):
-
20 L
-
Power (kW):
-
80
-
Weight (T):
-
20
-
Model Number:
-
BSM100N-160L
-
Power(W):
-
80kw
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Product possible:
-
jerry can, drum, toys, tool box, seat, barrel
-
Material:
-
HDPE, PE, PP, etc
Quick Details
-
Clamping Force (kN):
-
780
-
Output (kg/h):
-
215 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Huan Machinery
-
Year:
-
2020
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
6.8*3.3*5.3m
-
Hollow part volume:
-
160L
-
Screw L/D Ratio:
-
28
-
Screw diameter (mm):
-
100 mm
-
Screw Heating Power(kW):
-
25.1 kW
-
Extruder Motor Power(kW):
-
55 kW
-
Mold Platen Size(Width)(mm):
-
1100 mm
-
Mold Platen Size(Height)(mm):
-
1400 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1.6 m³/min
-
Die Head Heating Power(kW):
-
30 kW
-
Accumulator Capacity(L):
-
20 L
-
Power (kW):
-
80
-
Weight (T):
-
20
-
Model Number:
-
BSM100N-160L
-
Power(W):
-
80kw
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Product possible:
-
jerry can, drum, toys, tool box, seat, barrel
-
Material:
-
HDPE, PE, PP, etc

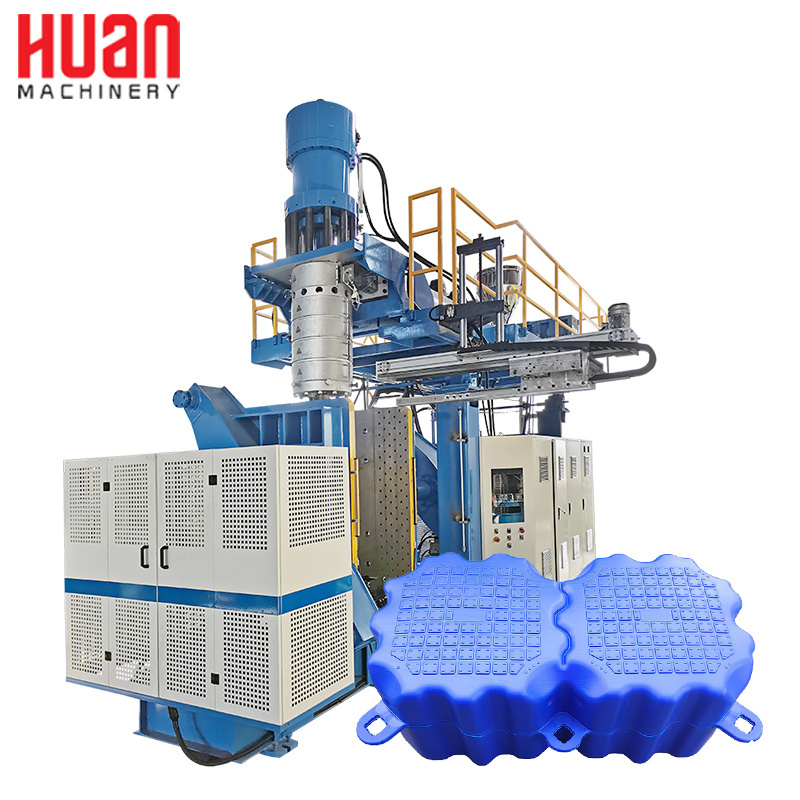

Hdpe floating pontoons dock systems extrusion blow molding machine
Hdpe floating pontoons dock systems extrusion blow molding machine detail
|
||
|
Model |
BSM100N-160L |
|
Max. product volume |
160L |
|
Station |
Single |
|
Screw diameter |
100mm |
|
Screw L/D ratio |
28:1 |
|
Screw driving power |
55kw |
|
Screw heating power |
25.1kw |
|
Hydraulic pump driving power |
45kw |
|
Head heating power |
30kw |
|
Cooling fan power |
0.65kw |
|
Total power |
159.75kw |
|
Average energy consumption |
80kw |
|
Size of machine |
6.8*3.3*5.3m |
|
Weight of machine |
20tons |
