Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
620X490X410mm
-
Weight (KG):
-
35
-
MODEL:
-
3040Z-DQ USB
-
Interface:
-
USB port
-
Type of screw:
-
Ball screw
-
Machine Dimensions:
-
620X490X410mm
-
Rack material:
-
6061 and 6063 Hard aluminum alloy
-
Engraving area:
-
380X285mm
-
Z-Axis Stroke:
-
70mm, Engraving depth depends on the length of the tool edge
-
Acceptable material thickness:
-
≤95mm
-
Repeat positioning Accuracy:
-
0.03mm
-
Engraving speed:
-
100-2500mm/min
Quick Details
-
Working Table Size(mm):
-
300x400mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 2400 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
620X490X410mm
-
Weight (KG):
-
35
-
MODEL:
-
3040Z-DQ USB
-
Interface:
-
USB port
-
Type of screw:
-
Ball screw
-
Machine Dimensions:
-
620X490X410mm
-
Rack material:
-
6061 and 6063 Hard aluminum alloy
-
Engraving area:
-
380X285mm
-
Z-Axis Stroke:
-
70mm, Engraving depth depends on the length of the tool edge
-
Acceptable material thickness:
-
≤95mm
-
Repeat positioning Accuracy:
-
0.03mm
-
Engraving speed:
-
100-2500mm/min
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
In addition, it can be upgraded to be installed a rotational axis
More Precise Stepping Motor
The engraving process is visible as controlled by computer
Simple operation and installation
1 year machine part and 6 months electrical parts, stepping motor, spindle Free Warranty
Shipping by DHL FEDEX UPS with tracking number
Technical Parameters:

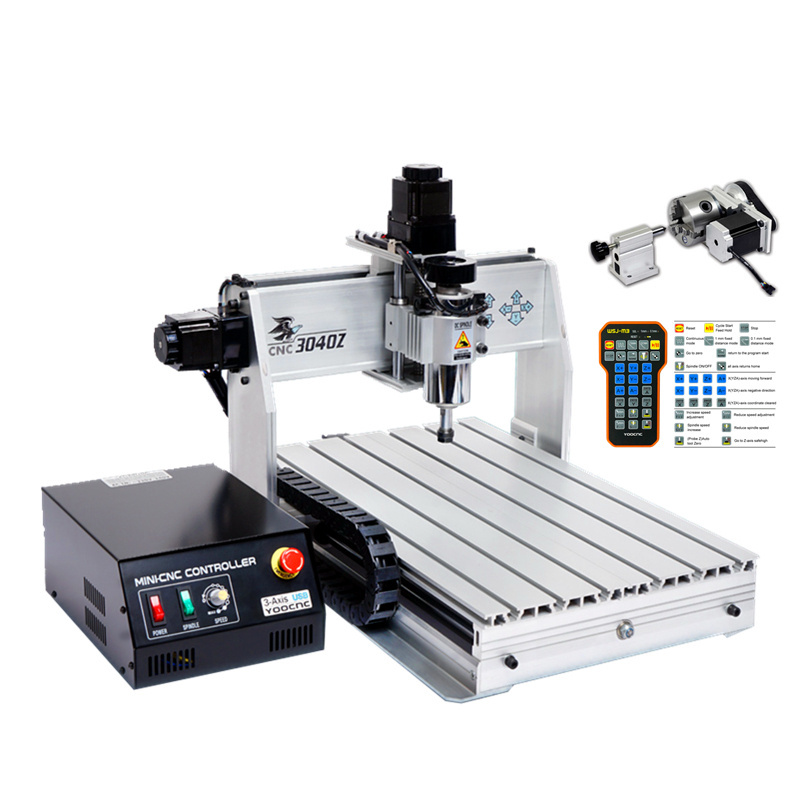

CNC3040Z-DQ 4axis engraving machine part parameters
|
Machine Dimensions |
615X485X390mm |
|
Rack material |
6061 and 6063 Hard aluminum alloy
|
|
Engraving area |
400X300mm |
|
Z-Axis Stroke |
55mm, Engraving depth depends on the length of the tool edge |
|
Acceptable material thickness |
≤70mm |
|
Rail type |
Chromeplate shaft+Linear Bearings,(Surface hardening 61HRC) |
|
Type of screw |
Ball screw,Pitch 4mm |
|
Spindle motor |
230W/11000r/min(Very small noise) |
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|
Stepper motor and drive |
two-phase hybrid stepping motor , 1.8A/PHASE,40N.cm, 8 segments drive. |
|
Maximum operating speed |
4000mm/min (Engraving speed :300-3000mm/min) |
|
Repeat positioning Accuracy |
0.04mm |
|
Communication interface |
Parallel port (Must use the desktop computer, Does not support laptop) |
|
Software Compatability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) |
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|
Machine weight |
28kg |
|
|
|
|
|
|
|
Rotation Axis (4 th Axis) Description:
|
Chuck Size: 65mm self-centering chuck Center height: H = 55mm Clamping diameter: 65mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type / 1.5A Stepper Drive: T65-axis drive Positioning accuracy: 0.075 ° |
cnc 3040z-dq 4 axis
Packing list:
1× Engraving machine
1× Control box
1× Parallel port cable 25pin
1× Power cable
1× Tool box and tools
3× Axis motors
1× Rotation axis
1× tool auto-checking instrument
1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free , 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
