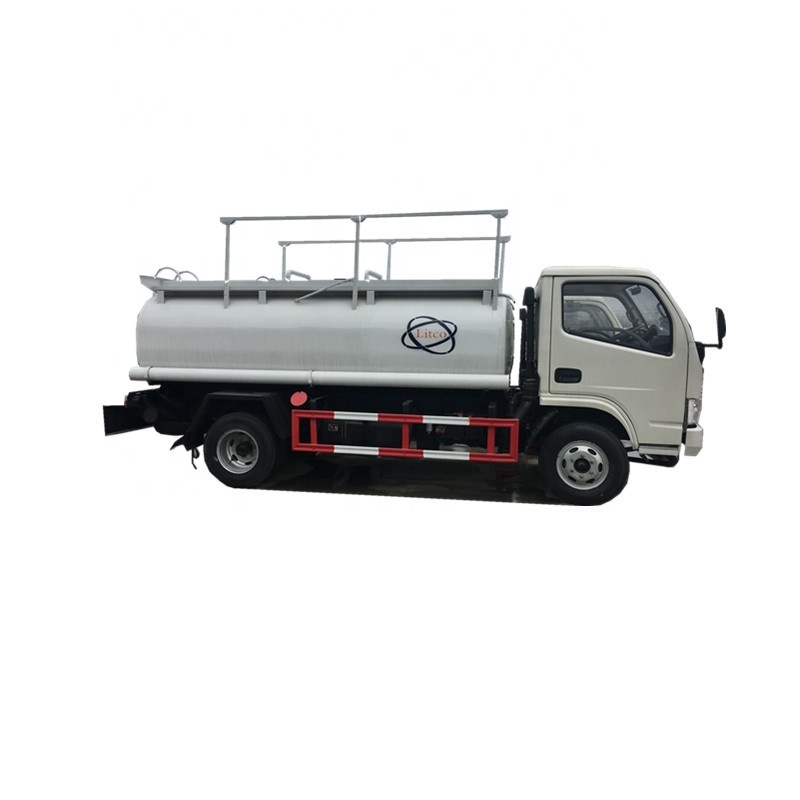

DFAC 4*2 dongfeng small 8000 liters fuel tank truck 6995*2300*2750mm size going into fuel home/office delivery truck
Fuel truck also called fuel bowser ,fuel tank truck ,fuel tanker ,oil tanker ,oil tank truck ,petrol tank ,petrol fuel tank ,tanker truck ,refueler truck ,petroleum tanker ,fuel dispenser truck ,fuel dispensing truck ,mobile dispenser truck ,crude oil truck ,crude oil tanker truck ,fuel transport truck ,diesel truck ,mobile diesel tanker truck ..etc ...
It used to transport fuel ,oil ,diesel ,petrol gasoline ,also could divided into many compartments to t ransport different types of medium .. ..
| Product Technical Specifications | ||||
| Item | Descriptions | Spesifications and Types | ||
| Vehicle | Brand | CHENGLIWEI | ||
| Overall Dimensions L*W*H | 6995*2300*2750mm | |||
| Weights | GVW. | 9400kgs | ||
| Kurb Weight | 4255kgs | |||
| Rated Payload | 4950kgs | |||
| Chassis | Chassis Brand | Dongfeng | ||
| Drive Type | 4×2 | |||
| Steering | LHD or RHD | |||
| Engine | Brand | Chaochai engine | ||
| Power | 88Kw /120HP | |||
| Emmission Level | EURO 2 or Euro 3 or EURO 4 | |||
| Performance | Max. Speed | 80km/h | ||
| Wheel base | 3800 mm | |||
| Tyre Specifications | 8.25-16,7.50-16,8.25R16,7.50R16 | |||
| No. of Tyre | 6 pcs (1 spare tyre included) | |||
| Cab | Cab Capacity | 3 persons allowed | ||
| Body/Superstructure | Tank | Capacity | 5-8 m³ | |
| Material |
5mm or 6mm high quality carbon steel |
|||
| Loading System |
Top filling from manhole or pump fuel into tank from oil inlet valve. |
|||
| Discharging System |
Pump fuel out from tank or gravity discharge. |
|||
|
Basic
Equipments |
Install fuel pump drive by truck engine through PTO; One manhole, two pcs of fuel hoses (3inches) with complete quick connectors, access ladder, tank top anti-slip steel mesh installed, anti-static device, one fire extinguisher, with two corners’ lights and reflective tape. |
|||
| Paint |
Tank color is according to client’s requirements. |
|||
| Optional Equipments | Air Conditioner | |||
| Bottom loading | ||||
|
Flow meter, rolling hose with nozzle, emergency valve, compartment number, epoxy coating inside tank and so on. |
||||
Fuel tank truck also called oil transport truck , oil truck tanker,light fuel tank truck ,truck tank fuel , petrol tank truck , preol fuel tank, diesel dispensiong truck , it is used to transport diesel, oil fuel , gasoline , and also will be dused to bowser to other vehicle .
It can be divided into many compartments to transport different oil , it will be installed oil pump, flow metering, bottom valve, flow level gauge , ball valves .dicharge mouth and so on .
