Quick Details
-
Brand Name:
-
Tewrex
-
Fork Length:
-
1070mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
1070*1200*4000mm
-
Weight (KG):
-
2500 kg
-
Max.traveling speed:
-
20km/h
Quick Details
-
Min. Lifting Height:
-
130mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tewrex
-
Fork Length:
-
1070mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
1070*1200*4000mm
-
Weight (KG):
-
2500 kg
-
Max.traveling speed:
-
20km/h
Product Description
Safety and Reliable
Overall design frame and overhead guard with integral welded, Reduce vibration of whole machine and enhance frame strength.
High Stability
New dynamic counterweight design technology makes the center of gravity move backward, which improves load capacity and safety of loaded driving greatly.
Energy Efficiency
Optimized design of cooling system and air duct. Cyclone air filter with large flow.
Operating Comfort
Adopted interactive ergonomic design to improve operating comfort. Equipped with wide field of view mast to improve driver's field of view.
Well-adapted
Steering wheel can be adjusted at a large Angle to meet different driving needs.
Convenient Maintenance
Interior space of car body is more spacious Parts Positions are more reasonable. Maintainability of machine is better.
Overall design frame and overhead guard with integral welded, Reduce vibration of whole machine and enhance frame strength.
High Stability
New dynamic counterweight design technology makes the center of gravity move backward, which improves load capacity and safety of loaded driving greatly.
Energy Efficiency
Optimized design of cooling system and air duct. Cyclone air filter with large flow.
Operating Comfort
Adopted interactive ergonomic design to improve operating comfort. Equipped with wide field of view mast to improve driver's field of view.
Well-adapted
Steering wheel can be adjusted at a large Angle to meet different driving needs.
Convenient Maintenance
Interior space of car body is more spacious Parts Positions are more reasonable. Maintainability of machine is better.
Contact us: Monica Yin
|

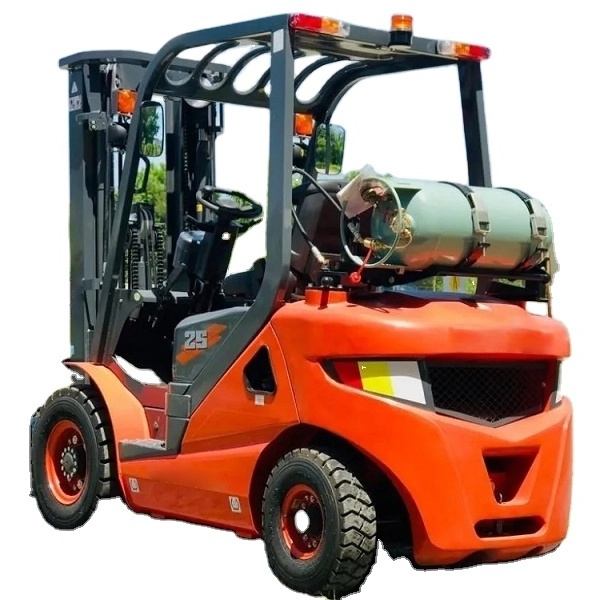

MODEL
|
LG25GLT
|
|
|
Powertype
|
Gasoline/LPG
|
|
|
Ratedcapacity(Kg)
|
2500
|
|
|
JLoadcentre(mm)
|
500
|
|
|
h1STDMaxliftingheight(mm)
|
3000
|
|
|
h3Freeliftingheight(mm)
|
110
|
|
|
L5*W*TSTDForksize(mm)
|
1070×120×40
|
|
|
Masttiltangle(deg)
|
6/12
|
|
|
L3Frontoverhang(mm)
|
448
|
|
|
L4Rearoverhang(mm)
|
500
|
|
|
R1Min.turningradius(mm)
|
2300
|
|
|
Min.intersectingaisle(mm)
|
3950
|
|
|
Speed(load/unload)
|
|
|
|
Max.travelingspeed(km/h)
|
20
|
|
|
Max,liftingspeed(mm/s)(load/unload)
|
560/580
|
|
|
Max.gradient(%)
|
20
|
|
|
STD Dead weight(kg)
|
3500
|
|
|
S/PTread(front/rear)(mm)
|
970/980
|
|
|
L2Axledistance(mm)
|
1650
|
|
|
Min.groundclearance
|
|
|
|
m2Mast(mm)
|
135
|
|
|
m1Frame(mm)
|
160
|
|
