1.Light weight,Flexibility,Toughness,Chemically Inert,Resistance to Abrasion,Smooth surface
2.Environmental stress crack resistance,Corrosion resistance,Frost & rodent resistance,Hygienic safety
3.Easy & quick installation
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
HDPE, HDPE
-
Diameter:
-
20-160M, 10-40 m or customized
-
Shape:
-
SQUARE/ROUND, Round Square Rectangular Quadrate Circular
-
Fish cage perimeter:
-
30-160m
-
Ability of anti-wave:
-
Max wave high of 5m in the water
-
Application:
-
Aquaculture fish farm
-
Fish cage net:
-
knotted and knotless net
-
Anti-windstrom:
-
Max Grade 11
-
Anti-flow capability:
-
Max flow rate of 1.5 m/s
-
Place of Origin:
-
China
Quick Details
-
Use:
-
Fish
-
Brand Name:
-
DRD
-
Model Number:
-
FISH CAGE
-
Material:
-
HDPE, HDPE
-
Diameter:
-
20-160M, 10-40 m or customized
-
Shape:
-
SQUARE/ROUND, Round Square Rectangular Quadrate Circular
-
Fish cage perimeter:
-
30-160m
-
Ability of anti-wave:
-
Max wave high of 5m in the water
-
Application:
-
Aquaculture fish farm
-
Fish cage net:
-
knotted and knotless net
-
Anti-windstrom:
-
Max Grade 11
-
Anti-flow capability:
-
Max flow rate of 1.5 m/s
-
Place of Origin:
-
China
Products Description

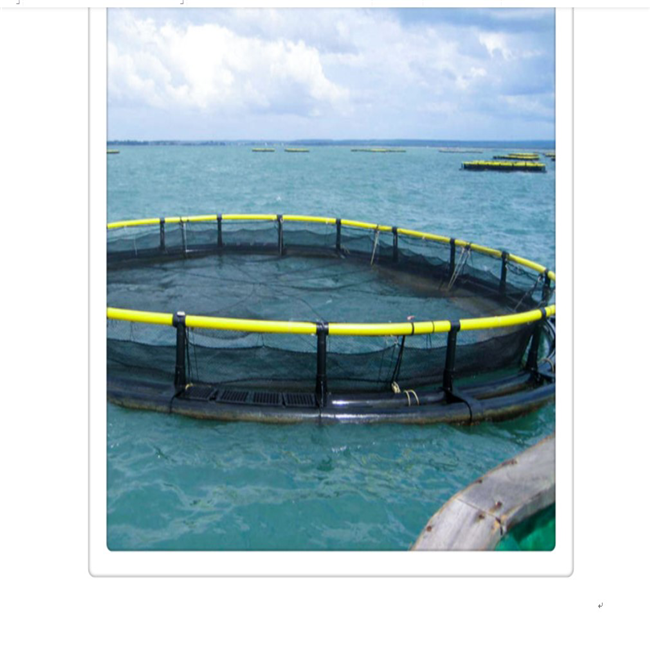

Marine culture fish cage has a strong ability of anti-wind,anti-current and anti-wave. It's made of new material HDPE pipe,making the cage have a long life. The cage capacity is large and makes a high survival rate. 1. Wide range of applications, it can be set in the depth of water from -6m to 50m. 2.Strong ability of wind resistance, can defend against the typhoon,the maximum is 12 grade.Strong ability of wave resistance to 7m,strong ability of current resistance to 1.5m/s. 3.Aquaculture capacity,the living space and growing space are large. 4.The cage has a long life, the cage frame can be used over 15 years.
Characteristic
Characteristic
HDPE 100 Bracket, extremely sturdy.
* HDPE 100 Floating Pipe and HDPE 100 Handrail Pipe offer excellent Environmental Stress Cracking Resistance and
resist deformation.
* High carbon component, strong UV resistance ensures sound durability, low maintenance and investment cost.
* Removable Handrail T Bar makes more easily assembling, simplified harvesting & efficient maintenance as well as
resistant to corrosion.
* Heavy duty standing pole. Bear heavier net weight.
* All the "Round" and "Square" shape cages can be customer made.
* HDPE 100 Floating Pipe and HDPE 100 Handrail Pipe offer excellent Environmental Stress Cracking Resistance and
resist deformation.
* High carbon component, strong UV resistance ensures sound durability, low maintenance and investment cost.
* Removable Handrail T Bar makes more easily assembling, simplified harvesting & efficient maintenance as well as
resistant to corrosion.
* Heavy duty standing pole. Bear heavier net weight.
* All the "Round" and "Square" shape cages can be customer made.
Specification
Square cage system is an efficient and easily organized solution for farmers delivered via the best construction technique in the industry of cage aquaculture. This has become a system with the durability that outperforms typical expectations for the square cage systems.
Square Flaoting Cage frame specifications
|
Length*Width(m)
|
Floating pipe Dia(mm)
|
Handrail pipe Dia(mm)
|
Stand pipe Dia(mm)
|
Bracket Dia(mm)
|
Distance of the brackets(m)
|
|
2*2
|
200
|
90
|
110
|
200
|
2
|
|
3*3
|
200/250
|
90/110
|
110/125
|
200/250
|
2
|
|
4*4
|
200/250
|
90/110
|
110/125
|
200/250
|
2
|
|
5*5
|
200/250
|
90/110
|
110/125
|
200/250
|
2
|
|
6*6
|
200/250
|
90/110
|
110/125
|
200/250
|
2
|
|
7*7
|
200/250
|
110
|
125
|
200/250
|
2
|
|
8*8
|
315/350
|
110
|
125
|
315/350
|
2
|
|
9*9
|
315/350
|
110/125
|
125/Bracket
|
315/350
|
2/2.5
|
|
10*10
|
315/350
|
110/125
|
125/Bracket
|
315/350
|
2/2.5
|
|
12*12
|
315/350
|
110/125
|
125/Bracket
|
315/350
|
2/2.5
|
|
15*15
|
350/400
|
125
|
125/Bracket
|
350/400
|
2.5
|
|
20*20
|
450/500
|
140/160
|
125/Bracket
|
450/500
|
2.5/3
|
|
30*30
|
500/600
|
160
|
125/Bracket
|
500/600
|
3/3.5
|
Round cage specification:
|
Cage Models
|
200
|
250
|
315
|
350/400
|
450/500/600
|
|
Cage Circumference
|
30-60
|
40-80
|
60-120
|
120-160
|
160-260
|
|
(m)
|
|
|
|
|
|
|
Farming Area
|
70-286
|
127-509
|
286-1146
|
1146-2037
|
2037-5379
|
|
(m2)
|
|
|
|
|
|
|
Be placed in Water Depth(m)
|
-5 to
|
-5 to
|
-5 to
|
-5 to
|
-5 to
|
|
|
-60
|
-60
|
-60
|
-60
|
-60
|
|
Floating Pipe Diameter(mm)
|
200
|
250
|
315
|
350/400
|
450/500/600
|
|
Handrail Pipe Dia (mm)
|
90
|
110
|
125
|
125
|
140/160
|
|
Handrail Upright Dia (mm)
|
110
|
125
|
125/Bracket
|
Bracket
|
Bracket
|
|
Bracket Type
|
Split
|
Split
|
Split/ One-piece with Handrail Upright
|
One-piece with Handrail Upright
|
One-piece with Handrail Upright
|
|
Distance between Brackets(m)
|
2
|
2
|
2
|
2.5
|
2.5
|
|
Materials Used
|
PE100
|
PE100
|
PE100
|
PE100
|
PE100
|
|
Foam Added
|
Only Floating Pipe
|
Only Floating Pipe
|
Only Floating Pipe
|
Only Floating Pipe
|
Only Floating Pipe
|
|
Available with Sinker Pipe
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Available with Walkway Decking:
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Available with Net
|
Nylon /PE/HDPE/
|
Nylon /PE/HDPE/
|
Nylon /PE/HDPE/
|
Nylon /PE/HDPE/
|
Nylon /PE/HDPE/
|
Features
1) It requires less investment.
(2) Its installation is easy.
(3) Since it covers only a fraction of the pond, the remaining part can be used in the normal way
(4) It provides opportunity for controlled culture of choice.
(5) Inspection of fishes and their feeding is much easier.
(6) Treatment of disease is much simple than that of pond culture.
(7) In emergencies it can be removed from one place to another.
(8) Since the cage is meshed, the fishes inside have less chances of being attacked by predators.
(9) Harvesting is very simple.
(10) The number of fish required at a particular time can be harvested and in this way it helps to maintain the non-seasonal supply of the fish.
(11) It is economical as compared to other methods of fish culture except fish-culture in running water.
