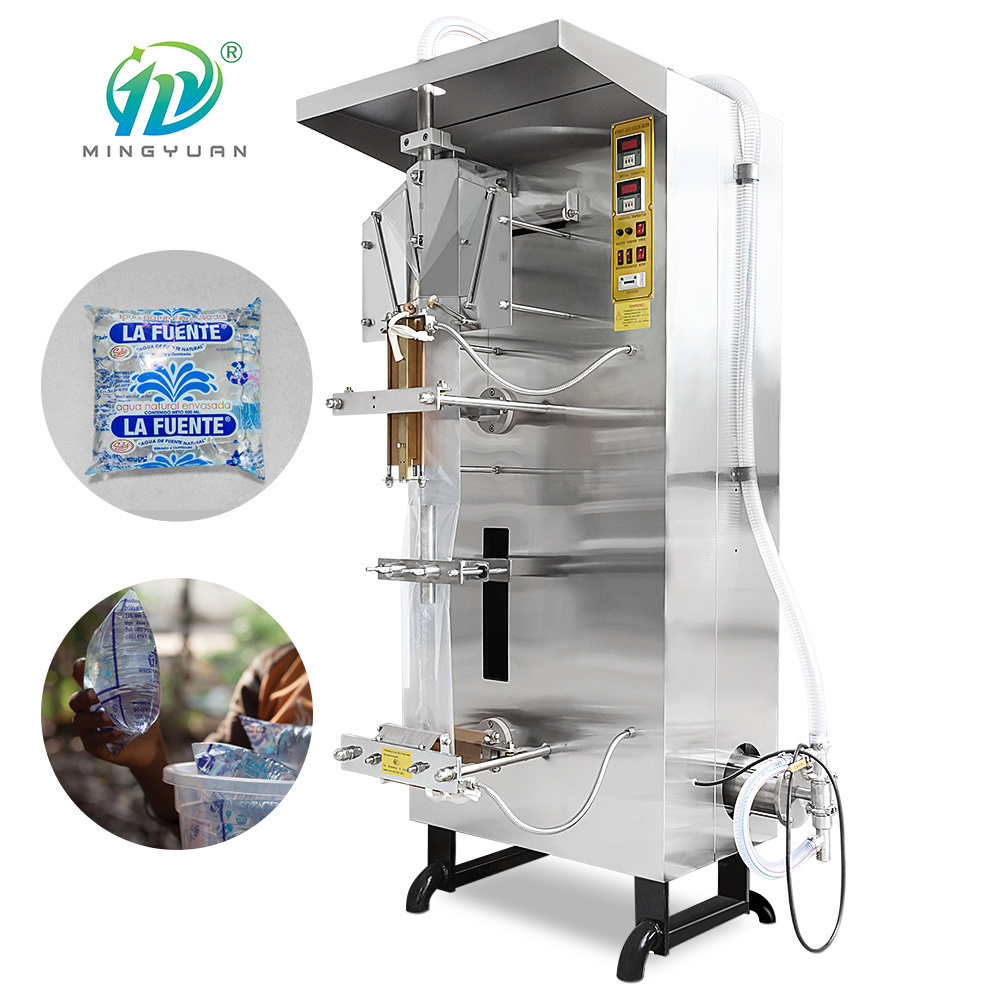

Pouch Sachet Water Filling Packing Machine Bag Water Liquid Sachet Packing Filling And Sealing Machine

Pouch Sachet Water Filling Packing Machine Bag Water Liquid Sachet Packing Filling And Sealing Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1200

≥5 Pieces

US $1150

≥10 Pieces

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: 1+-

Packaging Type:: Food

Voltage:: 220v/AC 50Hz

Place of Origin:: Zhejiang, China

Brand Name:: mingyuan

Dimension(L*W*H):: 880X760X1800mm

Weight:: 300 KG

After-sales Service Provided:: Can provide remote video service

Marketing Type:: Hot Product 2022

Quick Details

Machinery Capacity:: 4000BPH

Packaging Material:: Plastic

Filling Material:: Milk, Water

Filling Accuracy:: 1+-

Packaging Type:: Food

Voltage:: 220v/AC 50Hz

Place of Origin:: Zhejiang, China

Brand Name:: mingyuan

Dimension(L*W*H):: 880X760X1800mm

Weight:: 300 KG

After-sales Service Provided:: Can provide remote video service

Marketing Type:: Hot Product 2022

Video Description

selling point of a product

1. Back sealing, valve plug pump filling and metering

2. Independent research and development adopts servo + CCM silent linear sliding table bag pulling technology to make the packaging more flat and the bag length accurate.

3. It can be equipped with photoelectric control device to ensure the integrity of the packaging bag pattern.

4. 304 stainless steel is used for the whole contact material parts and the casing, which conforms to the food and drug hygienic licensing standards.

5. Packaging process: film sterilization, bag making, date printing, filling, sealing, cutting, and counting can be done at one time

sample display

Milk

Concoction

Juice

Water

Soya Bean Milk

Seasoning

product display

Schematic diagram of main parts

1.Former Center Plate

2. Folding bag trainer plates

3. Bag trainer base plate

4. Bag tread wheel

5. Vertical copper sealer

6. Center filling tube

7. Bag pull block and guides

8. Bag horizontal sealer

9. Copper pressure regulating screw

10. Control panel

11. Material feeding pipe

12. Three-way reversing valve

13. Upper check valve

14. The check valve

parameter configuration

Model	MY-SJ1000	MY-ZF2000
Bag Length	50-150mm	50-250mm
Bag Width	40-150mm	65-175mm
Film Width	100-320mm	150-380mm
Volume	50-500ml	200-1000ml
Speed	33-37bags/min	19-22bags/min
Power	220v/AC 50Hz 1.6Kw	220v/AC 50Hz 2.5Kw
Machine Size	8807601800mm	8807601800mm
Weight	275kg	380kg

Operation panel detail display

Control panel (button version): It adopts button-type control, which is intuitive and easy to operate.

Operation panel (intelligent version): Adopt PLC controller with color touch screen, support multiple languages, all working parameters can be set and reflected on the control panel, easy to operate

Process detail presentation

● Valve plug pump equal volume filling metering with check valve to prevent air feed

● Bag Forming Unit

● 1.STEELSEAL(STANDARDCONFIGURATINO)

● 2. RIBEON CODE PRINTER(OPTIONAL)

● Two bag pulling devices,ensure the film running more smoothly

● Independent vertical sealing temperature control system

● Independent horizontal sealing heating and cutting system

● Fast heating speed with precise cutting structure, to achieve the consistency of heat sealing and slitting

● Finished product display

☞More Details>>> Click me! @ Email Us!☜

Our Strength

After-sales service

Q: HOW TO ENSURE THE FILLING VOLUME OF THE PACKING MACHINE? To ensure the accuracy of each part, we are equipped with a variety of professional processing equipment. Each component before assembly needs strict control by inspecting personnel. Each assembly is in charge of a master who has working experience for more than 6 years. After all the machines are completed, we will connect them and run the full production line for at least 12 hours to ensure stable running in the clients' factory. Q: WHAT WARRANTY FOR THE PACKING MACHINE CAN I GET FROM MINGYUAN? One years warranty after receiving the equipment, free spare parts, and technical support. New client guarantee program offers a longer warranty and is customized after service. Engineer one-to-one online tutorial in English. Q: HOW LONG IS THE PRODUCTION PERIOD? Around 10-15 days. Q: ANY OTHER QUESTIONS? Send inquiry to MINGYUAN. Chat now through Alibaba APP. Call us or reserve a call.
