Testing Grinding Testing Equipment Laboratory Vibratory Pulverizer for Sample

Testing Grinding Testing Equipment Laboratory Vibratory Pulverizer for Sample

FOB Reference Price: Get Latest Price

≥1 Sets

US $1299

≥2 Sets

US $1199

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ASCEND

Product name:: Laboratory Pulverizer

Keywords:: Gold Mining Equipment

Usage:: Mining Separation

Model:: GJ-I GJ-II GJ-III GJ-IV GJ-V

Function:: Stone Crushing

Type:: Laboratory Leaching Equipment

Advantage:: High Working Effiency

Quick Details

Weight (KG):: 300

Marketing Type:: New Product 2023

Place of Origin:: Henan, China

Brand Name:: ASCEND

Product name:: Laboratory Pulverizer

Keywords:: Gold Mining Equipment

Usage:: Mining Separation

Model:: GJ-I GJ-II GJ-III GJ-IV GJ-V

Function:: Stone Crushing

Type:: Laboratory Leaching Equipment

Advantage:: High Working Effiency

Product Description

Laboratory Sealed Sample Pulverizer

The sample pulverizer that is working for trail plant, it is small capacity mill crushing the material. The working system way is vibrating grinding type. The material will load into the bowl, there is crushing ring and crushing hammer inside, in high speed rotation way the bowl will have vibrating and grinding function, will crushed to 80-200 mesh sample size by crushing ring and crushing hammer in 2-6 mintues, make it for testing directly.

Product Advantages

1. High efficient no need screening again, the output material could be used for testing directly.
2. Digital timing screen, special designed high quality motor, with long service life.
3. With shock-absorbing stand.
4. Sealed grinding pot, dust proof, no pollution.
5. Low noise, smooth operating, complete sealed machine, with high safety operation standard.
6. High standard sealing design, no leaking for dry or wet method grinding.
7. Reliable, evenly output size, short grinding time.
8. Simple and reasonable structure, good out look, easy to operate, maintenance, and clean.

Product using guidance

Feeding and grinding

Discharging and collecting

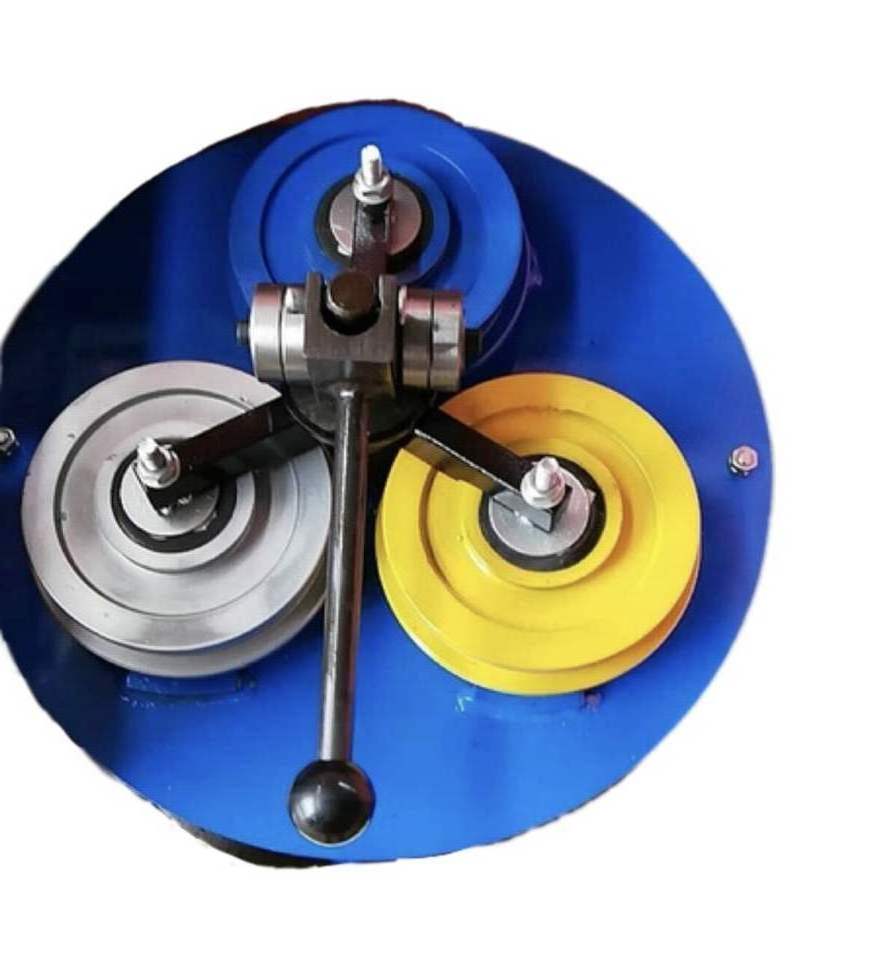

Detailed pictures and parts

Technical Parameters

Product Parameters

Model	Charge granularity (mm)	Weight of charge (g)	Discharge granularity (mesh)	Grinding time (min)	Power (kw)	Weight (kg)	Dimension (mm)
GJ-Ⅰ	≤12	100	120-200	1-3	1.1	145	640560730
GJ-Ⅱ	<25	200(400)	120-200	1-3	1.1	225	800740910
GJ-AX	≤12	7*100	120-200	2-5	1.1	300	800740910
GJ500-1	<25	500	120-200	1-3	1.1	280	800740910
GJ-1A()MZ-100	≤12	100	100-200	1-3	1.1	115	550540750
2MZ-100	≤12	2*100	100-200	2-4	1.1	150	530530800
3MZ-100	≤12	3*100	100-200	2-4	1.1	160	530530800
4MZ-100	≤12	4*100	100-200	2-5	1.5	260	740740950
5MZ-100	≤12	5*100	100-200	2-5	1.5	270	740740950
6MZ-100	≤12	6*100	100-200	2-5	1.5	280	740740950
7MZ-100	≤12	7*100	100-200	2-5	1.1	300	740740910
1MZ-200	≤20	200	100-200	2-4	1.1	150	530530800
