Quick Details
-
Max. Wheel Weight:
-
0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP-A12
-
Warranty:
-
36 Months
-
Product Name:
-
Truck Wheel Alignment
-
Application:
-
Alignment Machine
-
Language:
-
Global Multi-language
-
Certification:
-
CE Certificate
-
Parking Camera Fuction:
-
Included
-
Quality:
-
High quality
-
Color:
-
Customised
-
Package:
-
Wooden Box
-
Advantage:
-
Directly Available
-
OEM:
-
OEM Service Provided
Quick Details
-
Power:
-
0.75 KW
-
Power Supply:
-
220V/380V
-
Balancing Speed:
-
0
-
Max. Wheel Weight:
-
0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP-A12
-
Warranty:
-
36 Months
-
Product Name:
-
Truck Wheel Alignment
-
Application:
-
Alignment Machine
-
Language:
-
Global Multi-language
-
Certification:
-
CE Certificate
-
Parking Camera Fuction:
-
Included
-
Quality:
-
High quality
-
Color:
-
Customised
-
Package:
-
Wooden Box
-
Advantage:
-
Directly Available
-
OEM:
-
OEM Service Provided
Products Description

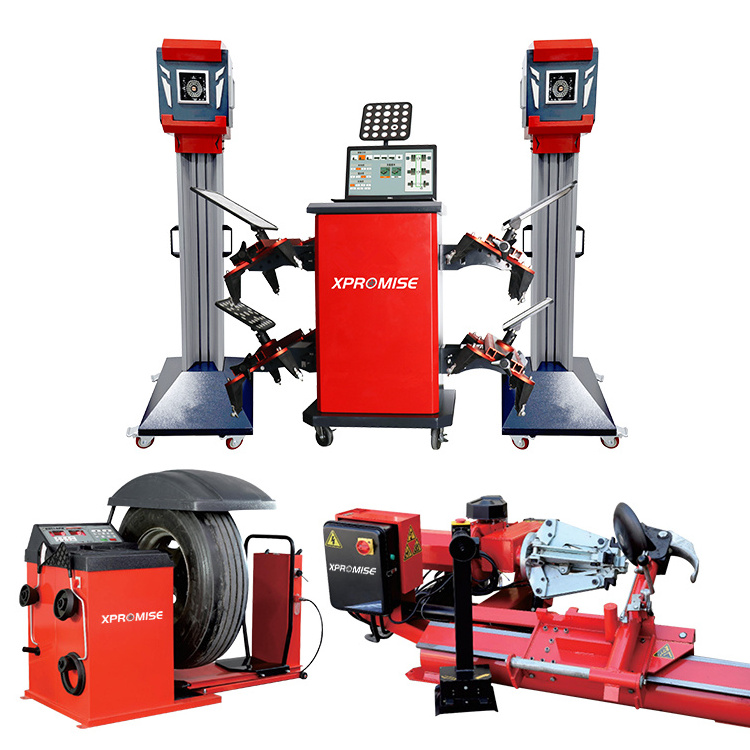

We are manufacturer in China,specialized in produce 3D wheel alignment,car lift,tire changer and wheel balancer for 17 years,products have export to more than 60 countries in the world.
Product Accessories Details
Product Measurement Principle
The machine vision system can automatically recognize the position of the target disc and target probe installed on the wheel under test, so as to calculate its geometric position in space with a high degree of accuracy.
|
Measurement project
|
Accuracy
|
Measurement range
|
|
|
Display accuracy
|
1´/1mm
|
|
|
|
Camber
|
±2´
|
±10°
|
|
|
Caster
|
±6´
|
±20°
|
|
|
Kingpin inclination
|
±6´
|
±20°
|
|
|
Toe-in & Toe-out
|
±2´
|
±20°
|
|
|
Set back
|
±2´
|
±5°
|
|
|
Thrust angle
|
±2´
|
±5°
|
|
|
Wheel deviation
|
±2´mm
|
4000mm
|
|
|
Axis deviation
|
±2´mm
|
4000mm
|
|
Product Advantages
1. Higher accuracy and more powerful functions. Its accuracy can be accurate to 0.1mm/0.01° its function can not only realize all the traditional parameters, but also can measure the frame parameters, and easily realize many functions that CCD and laser locator cannot complete.
2.
The operation is more convenient. The measurement is not affected by the level of the platform; it only needs to push the car or the supporting wheel mode to complete the measurement of all parameters; it can be moved and used at will
3.
The failure rate is extremely low. The target board has no electronic components, no battery no data transmission, and only serves as a reflection of the image; the main frame is a metal frame, and the column is a cast body, which is resistant to corrosion and pressure; the computer is mostly brand high-end configuration, To adapt to large data processing, the
performance is more stable
4.
Dual mode measurement: you can select drive axle measurement or drive axle measurement mode
HD industrial camera (8 million)
The camera shooting software processes the images received from the camera and recognizes the target from the frame
images. After that, the machine vision subsystem will calculate the three-dimensional coordinates of each space target. These three-dimensional coordinates will be used to calculate the positioning value of each wheel. Effective range: 10m
Target plate（Laser engraving）
It is composed of several circular patterns of different fixed sizes Use the camera to shoot to establish a three-dimensional image of the target; since the size of the target is fixed, it provides an accurate basis for software calculations
Clamp
Adapter device to quickly find the center of the steel ring
Card loading range: 16-24 inches
Turntable
The supporting device removes the friction between the tire and the ground during the rotation.
Bearing capacity: 10 tons
