Quick Details
-
Application:
-
Lining Etc
-
Design Style:
-
Chinese
-
Type:
-
Thermal Insulation
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Robert
-
Model Number:
-
STD/HTC/EHD
-
Max Service Temperature:
-
1000℃-1100℃
-
SiO2:
-
48~52%
-
CaO:
-
35~40%
-
HS Code:
-
680610100
-
Sample:
-
Avaliable
-
Regular Size(mm):
-
1000*500*50 1200*600*50 900*600*50
-
Fe2O3:
-
0.3~0.4%
-
Al2O3:
-
0.4~0.5%
-
Thermal Conductivity:
-
0.064-0.113W/m.k
-
Combustion Performance:
-
A1
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Lining Etc
-
Design Style:
-
Chinese
-
Type:
-
Thermal Insulation
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Robert
-
Model Number:
-
STD/HTC/EHD
-
Max Service Temperature:
-
1000℃-1100℃
-
SiO2:
-
48~52%
-
CaO:
-
35~40%
-
HS Code:
-
680610100
-
Sample:
-
Avaliable
-
Regular Size(mm):
-
1000*500*50 1200*600*50 900*600*50
-
Fe2O3:
-
0.3~0.4%
-
Al2O3:
-
0.4~0.5%
-
Thermal Conductivity:
-
0.064-0.113W/m.k
-
Combustion Performance:
-
A1
|
Product Name
|

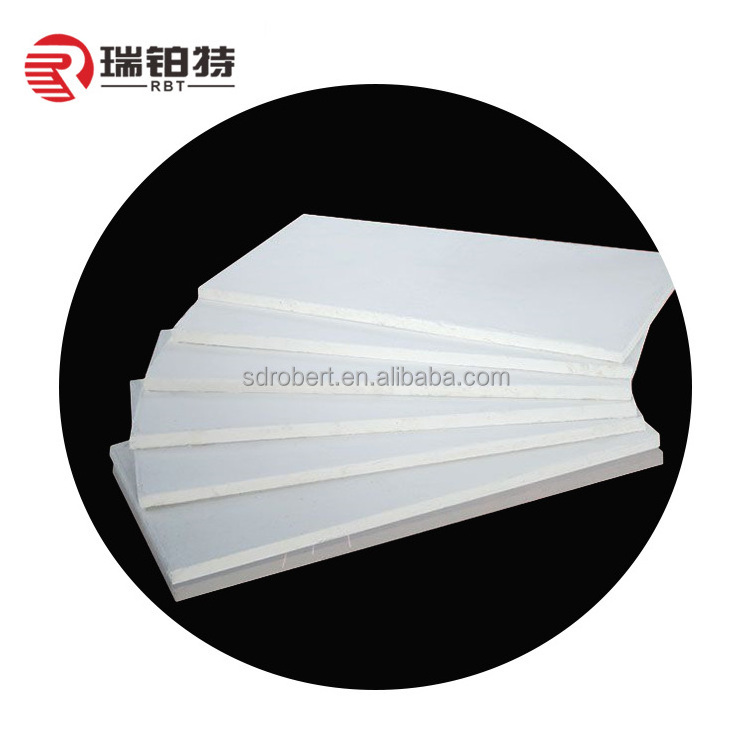

Calcium Silicate Boards
|
|
Description
|
Calcium silicate board for thermal insulation is called microporous calcium silicate, which is a new type of white and hard thermal insulation material.
|
|
Classification
|
STD/HTC/EHD
|
|
Regular Size(mm)
|
1000*500*50 1200*600*50 900*600*50
|
|
Features
|
Calcium silicate board has small capacity, high strength, low thermal conductivity, convenient construction, low loss rate of excellent performance, stable performance, acid and alkali resistance, not easy to corrosion, not be moisture or insect damage, ensure a long service life, good heat insulation performance.
|
Regular Size
Special-shaped Parts
Easy to Cut, Process
Support Customization
|
INDEX
|
标准型STD
|
高温型HTC
|
增强型EHD
|
||
|
Max Service Temperature(℃)
|
1000
|
1100
|
1100
|
||
|
Modulus of Rupture(MPa) ≤
|
0.45
|
0.5
|
6.5
|
||
|
Bulk Density(kg/m3)
|
230
|
250
|
950
|
||
|
Thermal Conductivity(W/m.k)
|
100℃/0.064
|
100℃/0.065
|
100℃/0.113
|
||
|
Combustion Performance
|
A1
|
|
|
||
|
Al2O3(%) ≥
|
0.4~0.5%
|
|
|
||
|
Fe2O3(%) ≤
|
0.3~0.4%
|
|
|
||
|
SiO2(%) ≤
|
48~52%
|
|
|
||
|
CaO(%) ≥
|
35~40%
|
|
|
||
Silicon calcium board can be made into board, block or casing shape, used as electric power, chemical industry, metallurgy, shipbuilding and other heat pipe and industrial furnace insulation material, also can be used as buildings, instruments and equipment fireproofing insulation.
1. Metallurgical industry: heating furnace, soaking furnace, annealing furnace, high temperature flue,
hot air duct.
2. Petrochemical industry: heating furnace, ethylene cracking furnace, hydrogenation furnace, catalytic cracking furnace.
3. Cement industry: rotary kiln, calciner kiln, preheater, air duct, kiln cover, cooler.
4. Ceramic industry: Tunnel kilns and core panels for tunnel kilns.
5. Glass industry: furnace bottom and walls.
6. Electric power industry: preheating furnace tubes.
7. Non-ferrous metal industry: electrolyzers.
Metallurgical Industry
Petrochemical Industry
Cement Industry
Ceramic Industry
FAQ
Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 30 years. We promise to provide the best price, the best pre-sale and after-sale service.
Q2: How do you control your quality?
A2: For each production process, RBT has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.
Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.
Q4: Do you provide free samples?
A4: Of course, we provide free samples.
A4: Of course, we provide free samples.
Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit RBT company and our products.
Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.
Q7: Why choose us?
A7: We have been making refractory materials for more than 30 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
