Quick Details
-
Brand Name:
-
HYDER
-
Fork Length:
-
1070MM
-
Fork Width:
-
100MM
-
Overall Dimensions:
-
2267*1640*2320MM
-
Type:
-
Powered Pallet Truck
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Power unit:
-
battery
-
Load center:
-
500MM
-
Lifting height:
-
FORM 3000 TO 7500MM
-
Height of head guard:
-
2320MM
-
Total length:
-
2267MM
-
Controller:
-
Curtis Controller
-
Certification:
-
CE,ISO
Quick Details
-
Min. Lifting Height:
-
3000MM
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HYDER
-
Fork Length:
-
1070MM
-
Fork Width:
-
100MM
-
Overall Dimensions:
-
2267*1640*2320MM
-
Type:
-
Powered Pallet Truck
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Power unit:
-
battery
-
Load center:
-
500MM
-
Lifting height:
-
FORM 3000 TO 7500MM
-
Height of head guard:
-
2320MM
-
Total length:
-
2267MM
-
Controller:
-
Curtis Controller
-
Certification:
-
CE,ISO
Narrow aisle electric stacker 2.5ton automatic electric reach truck
ADVANTAGE:
1) According to the ergonomic design, set accelerator, commutation, horn brake emergency reverse and easy for learning without processing license.
2) The unique vertical drive cell and special stacker's gearbox, which are far away from the dust, long-term moisture erosion good heat dissipation it is conductive to work in long time. The efficient output of AC motor, energy saving is about 30%.
3) Motors and electrical control wiring are easier layout reducing the wire intereference3 abrasion and breaking possibilities.

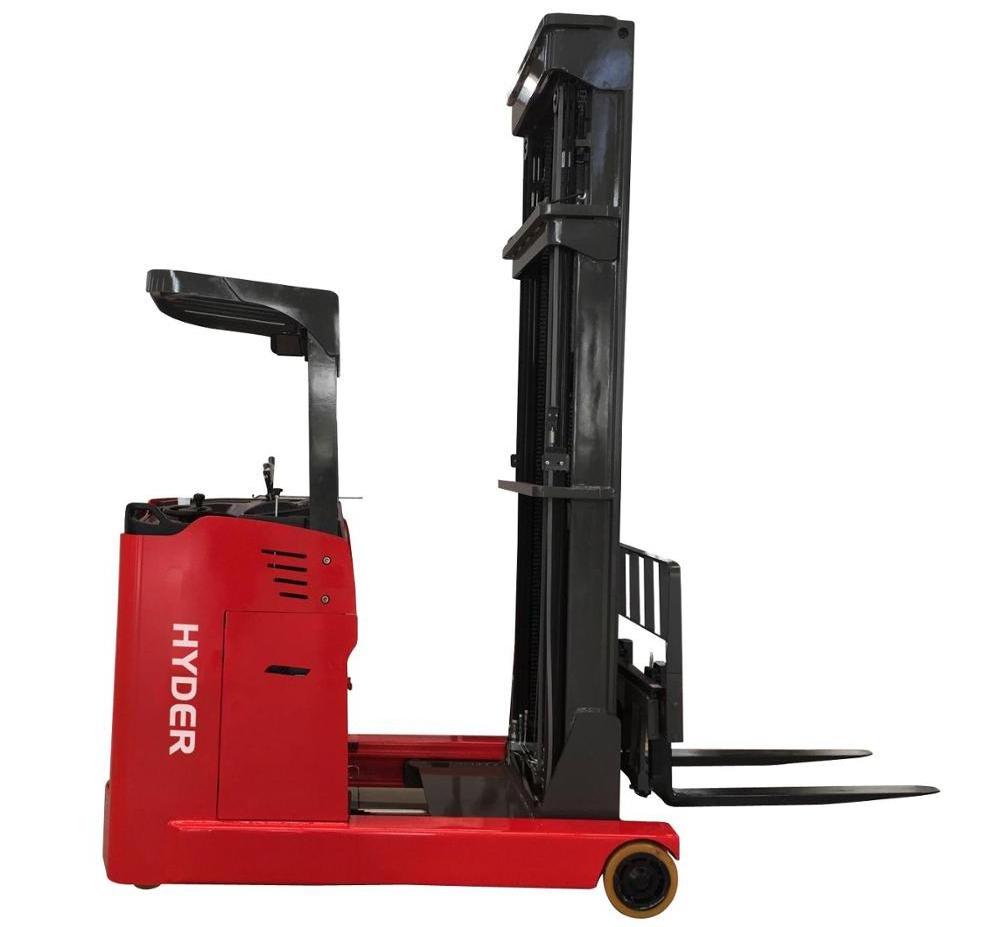

PHOTO:
specification:
| Brand | HYDER | |||
| Model | HTFB15 | HTFB20 | HTFB25 | |
| Power unit | battery | |||
| Operation | stand-on | |||
| Load capacity | Q(kg) | 1500 | 2000 | 2500 |
| Load center | C(mm) | 500 | ||
| Tires type front/rear | PU/PU | |||
| Tires size left front | mm | Φ267X65 | ||
| Tires size right front | mm | Φ267X135 | ||
| Tires driving | mm | Φ343X108 | Φ343X108 | Φ380X165 |
| Tires balanced | mm | Φ180X76 | Φ180X76 | Φ204X76 |
| Tire no. front/driving/universal | 3/1X/2 | |||
| Mast forward/backward | α/β(°) | 3/5 | ||
| Lifting height | h1(mm) | FROM 3000 TO 7500 | ||
| Free lift height | h2(mm) | 100 | 1540 | 100 |
| lowest height | h3(mm) | 2080 | 2179 | 2085 |
| Highest height when lift | h4 (mm) | 3910 | 5410 | 3920 |
| Highest of head guard | h5(mm) | 2320 | ||
| Height to overhead guard | h6(mm) | 1887 | ||
| Min. Ground Clearance | h7(mm) | 80 | ||
| Total length | l1(mm) | 2267 | 2302 | 2488 |
| Reach distance | l2(mm) | 545 | 510 | 710 |
| Wheelbase | y(mm) | 1350 | 1350 | 1700 |
| Front overhang | x(mm) | 175 | 192 | |
| Total width | b1/b2(mm) | 1640 | 1800 | 1800 |
| Tread front/rear | b3/b4(mm) | 1283/680 | 1443/680 | 1452/726 |
| Fork size | l/e/s(mm) | 1070X100X35 | 1070X100X35 | 1070X100X45 |
| Fork width(outside) | b5 (mm) | 220/662 | 247/780 | 247/780 |
| Aisle width(1000*1200pallet)pedal unfold/fold | Ast(mm) | 2645 | 2720 | 3084 |
| Aisle width(800*1200pallet)pedal unfold/fold | 2710 | 2730 | 3084 | |
| aisle width by side passing ( 1200 X1200pallet ) | 2671 | 2706 | 2887 | |
| Turning radius pedal(unfold/fold) | Wa(mm) | 1615 | 1615 | 1979 |
| Travelling speed | km/h | 7.5/8.5 | 7.5/8.5 | 7. 8/9.0 |
| Lifting speed | mm/s | 110/200 | 110/200 | 110/200 |
| Gradeability(S25) full load/no load | % | ≤ 10 | ||
| Driving moter type | AC | |||
| Driving motor power(S2 60) | kw | 5.5 | ||
| Lifting motor type | DC | |||
| Lifting motor power(S3 15%) | kw | 6.3 | 6.3 | 7.5 |
| Battery voltage/capacity | V/Ah | 48/300 | 48/300 | 48/400 |
| Battery weight | kg | 486 | 486 | 650 |
| Service weight | kg | 2808 | 3235 | 3814 |
| Steering type | all-hydraulic | |||
| Paking type | electic magic | |||
| Parking operating | releasing brake | |||
| Service parking operationg | releasing brake | |||
| Battery place way | side way pull | |||
