Quick Details
-
Model Number:
-
MK2P-I
-
Product Name:
-
General Purpose Relay 12V 10A 2Z With LED
-
Contact Ratings:
-
2Z,3Z
-
Contact Resistance:
-
50mΩ(1A 6VDC)
-
Contact Material:
-
AgCdO
-
Insulation Resistance:
-
500MΩ,500VDC
-
Operate Time:
-
20ms/20ms
-
Terminal Type:
-
Socket
-
Norminal Coil Power:
-
1.5W/2.5VA
-
Product Certifications:
-
CE
-
Business Type:
-
Manufacturer, Trading Company
Quick Details
-
Contact Load:
-
High Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QIANJI
-
Model Number:
-
MK2P-I
-
Product Name:
-
General Purpose Relay 12V 10A 2Z With LED
-
Contact Ratings:
-
2Z,3Z
-
Contact Resistance:
-
50mΩ(1A 6VDC)
-
Contact Material:
-
AgCdO
-
Insulation Resistance:
-
500MΩ,500VDC
-
Operate Time:
-
20ms/20ms
-
Terminal Type:
-
Socket
-
Norminal Coil Power:
-
1.5W/2.5VA
-
Product Certifications:
-
CE
-
Business Type:
-
Manufacturer, Trading Company
You are here:
Home
>>
Relay
>>
General Purpose Relay

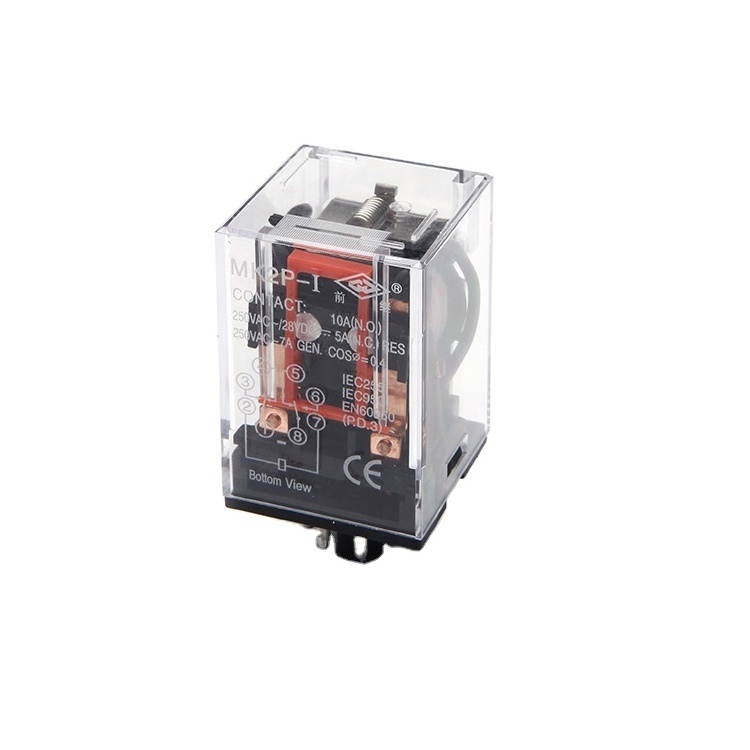

QIANJI China Supplier MK2P-I General Purpose Relay 12V 10A 2Z With LED
| Contact Ratings | ||
| Contact Ratings | 2Z | 3Z |
| Contact Resistance | 50MΩ(1A 6VDC) | |
| Contact Material | AgCdO | |
| Contact Capacity | 10A | 10A |
| 28VDC/250VAC | 28VDC/250VAC | |
| Specification | ||
| Insulation Resistance | 500MΩ,500VDC | |
| Dieletric Strength | BCC 1500V 1 min | |
| BOC 1000V 1 min | ||
| Operate Time | 20ms/20ms | |
| Terminal Type | Socket | |
| Coil Ratings | ||
| Norminal Coil Power | 1.5W/2.5VA | |
| Coil Versions | |||||||
|
Nominal Voltage VDC |
Pull-in Voltage VDC |
Release Voltage VDC |
Coil Resistance
Ω:±10%
|
Nominal
Voltage VDC |
Pull-in Voltage VDC |
Release Voltage VDC |
Coil Resistance Ω:±10% |
| 6 | 4.8 | 0.60 | 22.5 | 6 | 4.80 | 1.80 | 4.5 |
| 12 | 9.6 | 1.20 | 50.6 | 12 | 9.60 | 3.60 | 18 |
| 24 | 19.2 | 2.40 | 90 | 24 | 19.2 | 7.20 | 72 |
| 48 | 38.4 | 4.80 | 810 | 48 | 38.4 | 14.4 | 288 |
| 100 | 80.0 | 10.0 | 7550 | 110/120 | 88.0 | 36.0 | 1512 |
| 110 | 88.0 | 11.0 | 9000 | 220/240 | 176.0 | 72.0 | 6050/7200 |
Dimension.Bottom View
Reference Data
♦ We have 20 years of production experience, the best quality and the price can be assured, pls contact us freely,we will reply to you immediately
Packaging Details:Standard export packing
Delivery Detail:15-25 days
