Quick Details
-
Weight:
-
3.55Kgs
-
Input voltage range:
-
162-290Vac
-
Capacity:
-
400 VA / 240 W Ups For Elevators
-
Output voltage:
-
220Vac±10%
-
Frequency Range:
-
60Hz or 50Hz
-
Typical Recharge Time:
-
4-6 hours up to 90% capacity
-
Dimension:
-
279 x 101 x 142mm
-
Output Transfer Time:
-
Typical 2-6 ms
-
Noise Level:
-
Less than 40dB Online Ups
-
Humidity:
-
0-90 % RH @ 0- 40°C (non-condensing)
-
Backup time:
-
≥5min
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MINGCH
-
Model Number:
-
Ups System-APEX 400
-
Weight:
-
3.55Kgs
-
Input voltage range:
-
162-290Vac
-
Capacity:
-
400 VA / 240 W Ups For Elevators
-
Output voltage:
-
220Vac±10%
-
Frequency Range:
-
60Hz or 50Hz
-
Typical Recharge Time:
-
4-6 hours up to 90% capacity
-
Dimension:
-
279 x 101 x 142mm
-
Output Transfer Time:
-
Typical 2-6 ms
-
Noise Level:
-
Less than 40dB Online Ups
-
Humidity:
-
0-90 % RH @ 0- 40°C (non-condensing)
-
Backup time:
-
≥5min
You are here: Home >> Uninterrupted Power Supply (UPS) >> Backup UPS

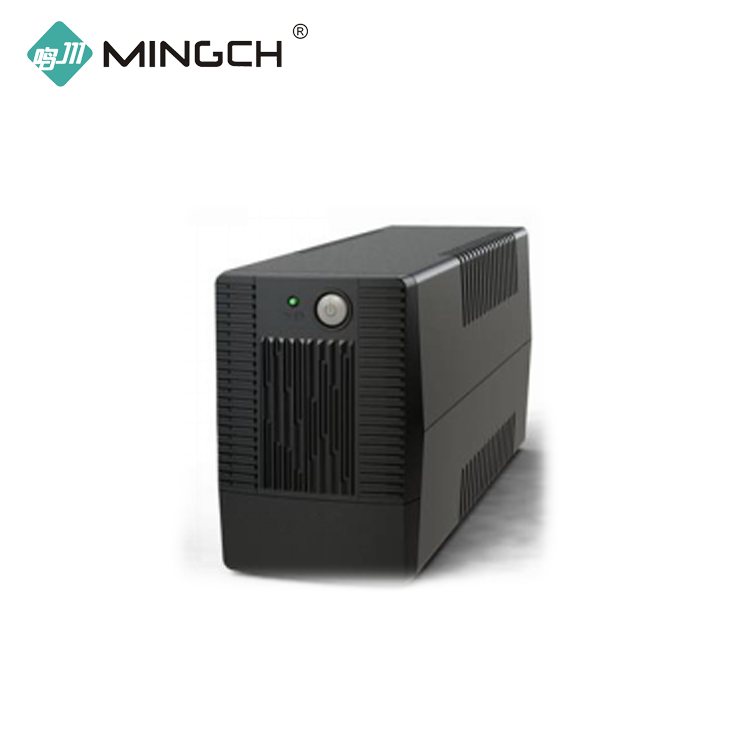

MINGCH Bangladesh High Frequency Portable Mini 400VA 110V Industrial Ups
Feature:
•Compact size
•Excellent microprocessor control guarantees high reliability
•Boost and buck AVR for voltage stabilization
•Auto restart while AC is recovering
•Simulated sine wave
•Off-mode charging
•Cold start function
•Generator compatible
|
APEX LINE INTERACTIVE UPS SELECTION GUIDE |
|||
|
MODEL |
APEX 400 |
APEX 600 |
APEX 800 |
|
CAPACITY |
400 VA / 240 W |
600 VA / 360 W |
800 VA / 480 W |
|
INPUT |
|||
|
Voltage |
110/120 VAC or 220/230/240 VAC |
||
|
Voltage Range |
81-145 VAC / 162-280 VAC |
||
|
Frequency Range |
60/50 Hz (auto sensing) |
||
|
OUTPUT |
|||
|
AC Voltage Regulation (Batt. Mode) |
±10% |
||
|
Frequency Range (Batt. Mode) |
60 Hz or 50 Hz ±1 Hz |
||
|
Transfer Time |
Typical 2-6 ms |
||
|
Waveform (Batt. Mode) |
Simulated Sine Wave |
||
|
BATTERY |
|||
|
Battery Type & Number |
12 V 4.5 Ah x 1 |
12 V/7 Ah x 1 |
12 V 9 Ah x 1 |
|
Typical Recharge Time |
4-6 hours up to 90% capacity |
||
|
INDICATORS |
|||
|
AC Mode |
Green lighting |
||
|
Battery Mode |
Green flashing |
||
|
ALARM |
|||
|
Battery Mode |
Sounding every 10 seconds |
||
|
Low Battery |
Sounding every second |
||
|
Overload |
Sounding every 0.5 second |
||
|
Fault |
Continuously sounding |
||
|
PROTECTION |
|||
|
Full Protection |
Overload, discharge, and overcharge protection |
||
|
PHYSICAL |
|||
|
Dimension, D X W X H (mm) |
279 x 101 x 142 |
||
|
Net Weight (kgs) |
3.55 |
4.25 |
4.9 |
|
ENVIRONMENT |
|||
|
Humidity |
0-90 % RH @ 0- 40°C (non-condensing) |
||
|
Noise Level |
Less than 40dB |
||
