Quick Details
-
Voltage:
-
202-680V, 50hz,60hz,can be customized
-
Power:
-
370-2200
-
Weight:
-
200 KG
-
Dimension(L*W*H):
-
50*50*70, capacity dependent
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
SS304/SS316L
-
Motor Brand:
-
Siemens,ABB, domestic brands, etc.
-
Capacity:
-
300L~10000L
-
fresh milk cooler:
-
directly cooling and storage
-
Layer:
-
One/Three
-
Product name:
-
Agitator keep cold for milk
-
Application:
-
Cooling and heating of chemicals, foodstuffs, dairy products, etc.
-
Value-added services:
-
Online support, video technical support
-
Certification:
-
CE ,ISO, 3A
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QR Machinery
-
Voltage:
-
202-680V, 50hz,60hz,can be customized
-
Power:
-
370-2200
-
Weight:
-
200 KG
-
Dimension(L*W*H):
-
50*50*70, capacity dependent
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
SS304/SS316L
-
Motor Brand:
-
Siemens,ABB, domestic brands, etc.
-
Capacity:
-
300L~10000L
-
fresh milk cooler:
-
directly cooling and storage
-
Layer:
-
One/Three
-
Product name:
-
Agitator keep cold for milk
-
Application:
-
Cooling and heating of chemicals, foodstuffs, dairy products, etc.
-
Value-added services:
-
Online support, video technical support
-
Certification:
-
CE ,ISO, 3A
Video Description
|

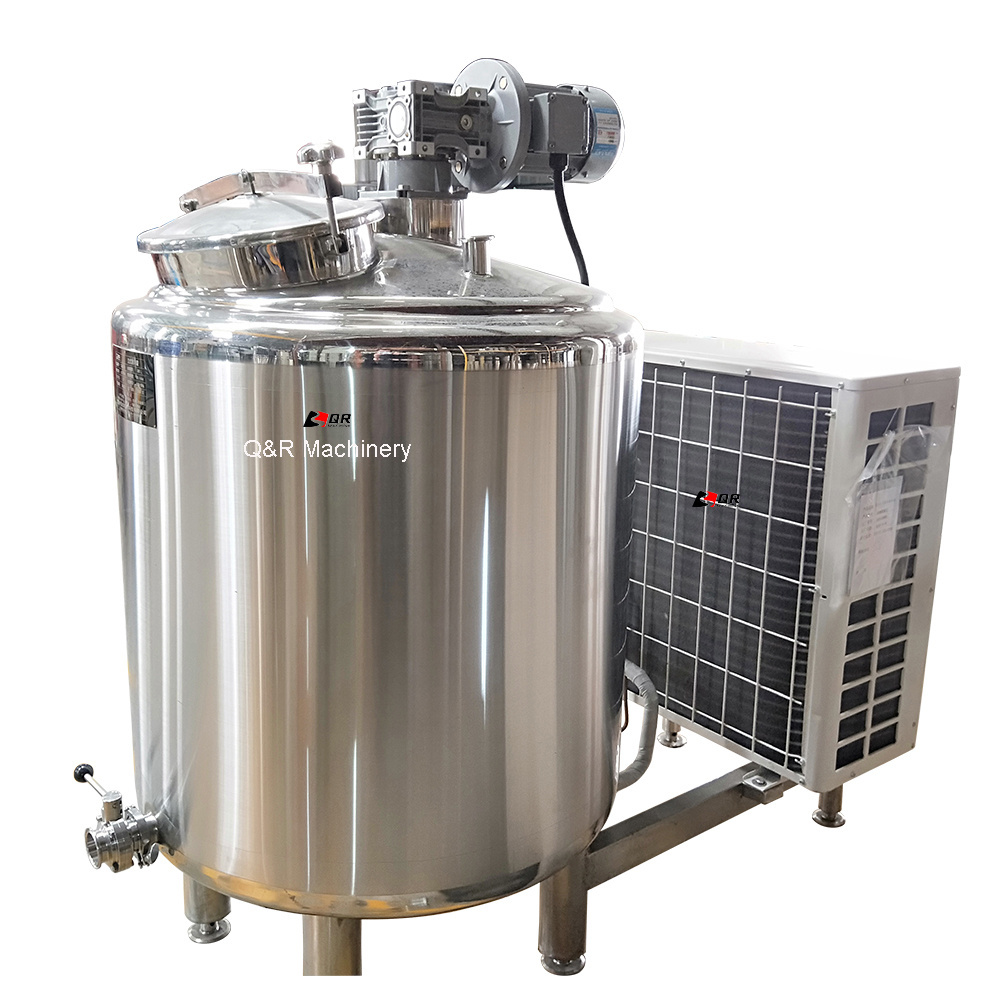

Milk silo storage refrigerator milk tank are widely applied in the
beverage, food, dairy
used as
Colling tank
and
Storage tank
,which cleanable to sanitary standards
|
Jacket liquid mixing tank, it's widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used
as blending tank, buffer tank, melting tank, high shear mixing tank and emulsifying tank, which cleanable to sanitary standards . Product Features: 1) Material: SUS304/ SUS 316L 2) Layer: Single layer/ double layers/ three layers 3) Power: 0.55~55KW 4) Capacity: 50L~50,000L 5) Voltage: 110V~680V, can be customized 6) Heating Type: electric/ steam heating 7) Polish: mirror polish inside and outside |
|
|
Product Features:
1) Material: SUS304/ SUS 316L 2) Layer: Single layer/ Three layers 3) Power: 0.37-22KW 4) Capacity: 50L~20,000L 5) Voltage: 220V/380V/415V/440V/680V 6) Colling Type: Chillers 7) Polish: mirror polish inside and outside |
Advantages:
1) Certificates: CE ,ISO, 3A 2) Warranty: 12 months 3) OEM/ODM: can design, exploitation and manufacture by CAD software and drawing. 4) Testing&QC: pressure test and material test |
|
|
Factory Scale:
1) Located in: Wenzhou, Zhejiang 2) Factory Area: 5000SQ.M 3) Employees: 37 4) Production Ability: 100 Pieces/Milk silo storage refrigerator milk tank |
Delivery Time:
Delivery Time: 1) Material Preparation Time: 2 days 2) Metal Processing Time: 7-10 days, based on actrual quantity 3) Test & Packaging Time: 1 day |
|
Product details
Example of milk cooling tank accessories diagram:
Horizontal cooling tank
The refrigeration tank refrigeration unit mainly uses the American Emerson Copeland Scroll compressor, produced by Zhejiang Gaoxiang, with beautiful appearance and stable quality.
Horizontal refrigeration tank parameters：
|
Model
|
Capacity (L)
|
Cooling capacity (W)
|
Stirring speed (R/Min)
|
Motor power (KW)
|
Length size (L*M*H)
|
|
QR-F-0.5
|
500
|
3500
|
36/24 R/Min
|
1.5
|
2200*1350*1150
|
|
QR-F-1
|
1000
|
6900
|
36/24 R/Min
|
3
|
2750*1150*1500
|
|
QR-F-1.5
|
1500
|
10000
|
36/24 R/Min
|
4
|
3000*1350*1550
|
|
QR-F-2
|
2000
|
13000
|
36/24 R/Min
|
5.5
|
3200*1500*1600
|
|
QR-F-3
|
3000
|
17800
|
36/24 R/Min
|
5.5
|
3500*1650*1700
|
|
QR-F-5
|
5000
|
34000
|
36/24 R/Min
|
7.5
|
4000*1950*2000
|
|
QR-F-6
|
6000
|
34000
|
36/24 R/Min
|
7.5
|
4200*2200*2100
|
|
QR-F-8
|
8000
|
42000
|
36/24 R/Min
|
18.5
|
4800*2400*2400
|
|
QR-F-10
|
10000
|
65000
|
36/24 R/Min
|
22
|
5000*2600*2500
|
Sanitary fluid rapid cooling machine：
1.
It can cool sanitary liquids ≤100°0 to -20C~20'C at one time (can be set).
2.
The high-temperature fluid is cooled in two stages. The first-level cooling water is pre-cooled to below 45°C, and the second-level cooling water is directly cooled by the refrigerator to -20°C~20°C (can be set).
3.
It can also circulate and cool the materials in a single tank.
4.
Applicable objects:
cooling of hygienic liquids such as food, chemicals, beverages, etc.
Tubular milk rapid cooling machine：
1.
The single-tube heat exchanger directly cools milk without using ice water, saving 20% energy.
2.
Pre-cooling milk with well water saves 30%~50% energy
3.
Tubular heat exchange, hygienic, no dead ends, easy to clean, and long life.
4.
PLC touch screen automatic control, automatic CIP cleaning pipeline.
List of tubular milk rapid cooling machines:
|
Model
|
Flow (35-2℃) L/H
|
Total power (KW)
|
Refrigeration capacity (Kcal/H)
|
Heat recovery
|
Automatic CIP
|
|
QRGSL-100F/S
|
100
|
1.5
|
4000
|
Optional
|
Optional
|
|
QRGSL-500F/S
|
500
|
6.2
|
12000
|
Optional
|
Optional
|
|
QRGSL-1000F/S
|
1000
|
13.5
|
24000
|
Optional
|
Optional
|
|
QRGSL-2000F/S
|
2000
|
26
|
48000
|
Optional
|
Optional
|
|
QRGSL-3000F/S
|
3000
|
37
|
72000
|
Optional
|
Optional
|
|
QRGSL-4000F/S
|
4000
|
52
|
96000
|
Optional
|
Optional
|
|
QRGSL-5000F/S
|
5000
|
60
|
120000
|
Optional
|
Optional
|
|
QRGSL-7500F/S
|
7500
|
81
|
180000
|
Optional
|
Optional
|
All of our stainless steel tank can be Customized
Different types tank has different application
Stainless steel tank: storage material, optional volume.
Stainless steel tank: storage material, optional volume.
Stainless steel emulsification/mixing tanks:
Shear or mix materials, both
fusible and non-fusible.mixing.
fusible and non-fusible.mixing.
Milk cooling and sterilization storage and mixing tank:
milk sterilization, high-pressure
emulsification, storage, cooling.
emulsification, storage, cooling.
Stainless steel jacketed melting tank:
liquid heating emulsification tank.
Stainless steel fermenter: beer fermentation tank.
Stainless steel fermenter: beer fermentation tank.
Stainless steel cleaning tank
: CIP cleaning tank.
Why Choose Us
Quality engineering
Related supporting products
Q&R Machinery Co., Ltd.
Q&R Machinery Ltd. is a professional manufacturer of processing machinery. Our main products include
High shear mixers
,
Mixing tanks
,
Vacuum emulsification tank
,
CIP cleaning tanks
,
Colloid mills
,
Centrifugal pump
,
Emulsification pump
,
Milk cooling tanks
,
Jacketed kettle
,
Concentrators
,
UHT sterilization
,
Efficient batching machine
,
Filling machines
,
sanitary filters
, sanitary pipes and valves. We are widely used in
beer, dairy, beverage, chemical, cosmetic, pharmaceutical and biopharmaceutical industries
. We provide a complete set of services from Q&R,
design, production, sales, after-sales
to maintenance." The "Q&R" trademark is our promise to our customers that we will go forward and do better. We are looking forward to explore the market with you!
Workshop corner
FAQ
1:Are you manufacturer?
Yes, we are. Welcome to visit our factory.
2:Can you change the machine voltage as our request?
Yes, we can.
3: How about the delivery time?
With the standard products delivery time will be15-35 days after we receive your payment.
4: What's the payment terms?
Usually is T/T, L/C, or Western Union. We also accept Money Gram, PayPal and other payment terms.
5: Where are the main markets for your products?
Products have been exported to all over the world, especially in Northern Europe Western Europe, Eastern Europe North American,
South American, Middle East, South Asia, Eastern Asia, African and etc.
