Quick Details
-
Weight (KG):
-
1000
-
Voltage:
-
2.2KW/220V 50-60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jason packing
-
Dimension(L*W*H):
-
220V 50/60HZ 2KW
-
Model:
-
JS-420F
-
Film Width:
-
Max.420mm
-
Bag Length:
-
80-300mm
-
Bag Width:
-
50-200mm
-
Film Roll Diameter:
-
Max.320mm
-
Packing Speed:
-
5-60bag/min
-
Power:
-
220V 50/60HZ 2KW
-
Marketing Type:
-
New Product 2020
Quick Details
-
Function:
-
FILLING, Labeling, Laminating, COATING, Sealing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
1000
-
Voltage:
-
2.2KW/220V 50-60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jason packing
-
Dimension(L*W*H):
-
220V 50/60HZ 2KW
-
Model:
-
JS-420F
-
Film Width:
-
Max.420mm
-
Bag Length:
-
80-300mm
-
Bag Width:
-
50-200mm
-
Film Roll Diameter:
-
Max.320mm
-
Packing Speed:
-
5-60bag/min
-
Power:
-
220V 50/60HZ 2KW
-
Marketing Type:
-
New Product 2020

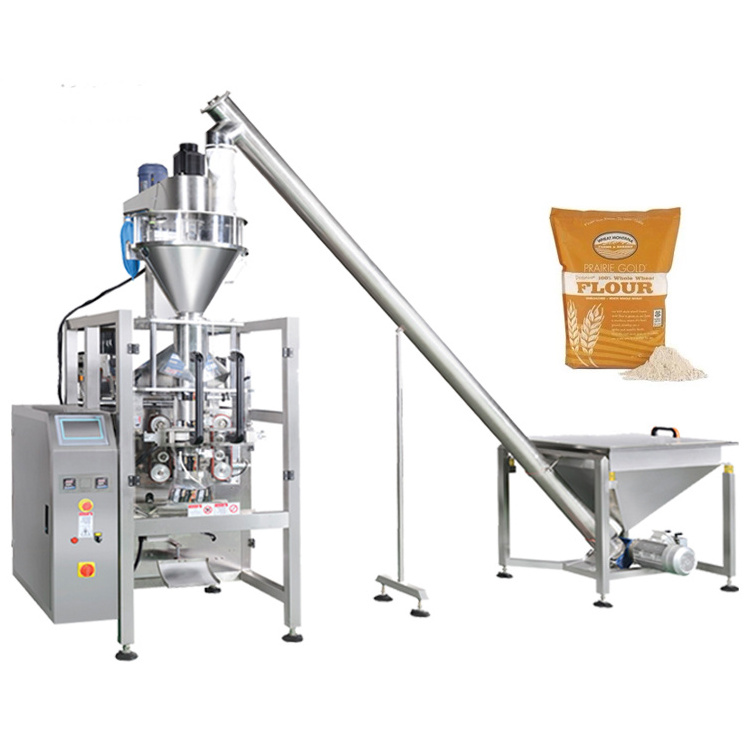

Automatic 100g 500g 1kg 2kg 5kg Coffee Milk Chilli Cocoa Flour Detergent Washing Powder Filling Packing Machine
Packaging Range: 50 grams - 50000 grams
√ High precision digital weighing sensors;
√ PLC control system ,stable and reliable;
√ 5.7inch colorful touch screen;
√ Material contact parts (storage hopper, hopper, vibration plate, weighing hopper, etc.) are to realize fast disassembly, easy to clean;
√ Easy to clean and maintance.
Vertical packing machine
Application:
automatic packaging for all kinds of powder materials in chemical industry,pharmacy and foodstuff industry,such as milk powder,
legume powder,cosmetic powder,tea and medical powder,etc.
| Model: | JS-420F | JS-520F | JS-620F | JS-720F |
| Packing material | Opp/cpp OPP/PE PET/PE NILO/PE PE | |||
| Film Width: | Max.420mm | Max.520mm | Max.620mm | Max.720mm |
| Bag Length: | 80-300mm | 80-350mm | 90-450mm | 100-500mm |
| Bag Width: | 50-200mm | 80-250mm | 170-300mm | 180-350mm |
| Film Roll Diameter: | Max.320mm | Max.320mm | Max320mm | Max.320mm |
| Packing Speed: | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-55bag/min |
| Power | 220V 50/60HZ 2KW | 220V 50/60HZ 3KW | 220V 50/60HZ 3KW | 220V 50/60HZ 3KW |
| Dimension | (L)1217*(W)1015*(H)1343MM | (L)1150*(W)1795*(H)1650MM | (L)1150*(W)1795*(H)1650MM | (L)1800*(W)1250*(H)1780MM |
| Net weight | About540kg | About 600kg | About700kg | About750kg |
Products detail:
Tranport equipment:
Production procedure:
Optional Device:
(1).Double Film Pulling Device , (2).Angle of Plug-in Device , (3).Automatic Correct Device ,
(4).Linking Bags Device , (5).Punching Device, (6).Nitrogen machine,
(7).Metal detector, (8).Check weigher, (9).Air Compressor.
Packaging:
We use the wooden case to pack our packing machine
Shipping:
Upon receipt of payment , delivery date will be in 7-15 days,
By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way and the weight of the goods
