Quick Details
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2022
-
Range of Spindle Speed(r.p.m):
-
60 r.p.m
-
Spindle Motor Power(kW):
-
3.8
-
Production Capacity:
-
30
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LT
-
Voltage:
-
220V/380V
-
Weight (T):
-
0.06 T
-
Boring Range:
-
95-800 mm
-
Feed Stroke (Standard):
-
500 mm (support customization)
-
Boring Bar (Standard):
-
90*1600 mm (support customization)
-
Accessories:
-
Optional
-
Boring Bar Speed:
-
0-60 r.p.m(stepless speed regulation)
-
Power Type:
-
3.8Kw Servo Motor
-
Feed Rate:
-
0-3 mm (stepless speed regulation)
-
End Face Device Feed:
-
0.1 mm
-
Operation Method:
-
Automatic / Manual
-
After-sales Service:
-
Online Support/Video Support
Quick Details
-
Table Travel (X) (mm):
-
500 mm
-
Table Travel (Y) (mm):
-
0 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2022
-
Range of Spindle Speed(r.p.m):
-
60 r.p.m
-
Spindle Motor Power(kW):
-
3.8
-
Production Capacity:
-
30
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LT
-
Voltage:
-
220V/380V
-
Weight (T):
-
0.06 T
-
Boring Range:
-
95-800 mm
-
Feed Stroke (Standard):
-
500 mm (support customization)
-
Boring Bar (Standard):
-
90*1600 mm (support customization)
-
Accessories:
-
Optional
-
Boring Bar Speed:
-
0-60 r.p.m(stepless speed regulation)
-
Power Type:
-
3.8Kw Servo Motor
-
Feed Rate:
-
0-3 mm (stepless speed regulation)
-
End Face Device Feed:
-
0.1 mm
-
Operation Method:
-
Automatic / Manual
-
After-sales Service:
-
Online Support/Video Support
Products Description
Specification

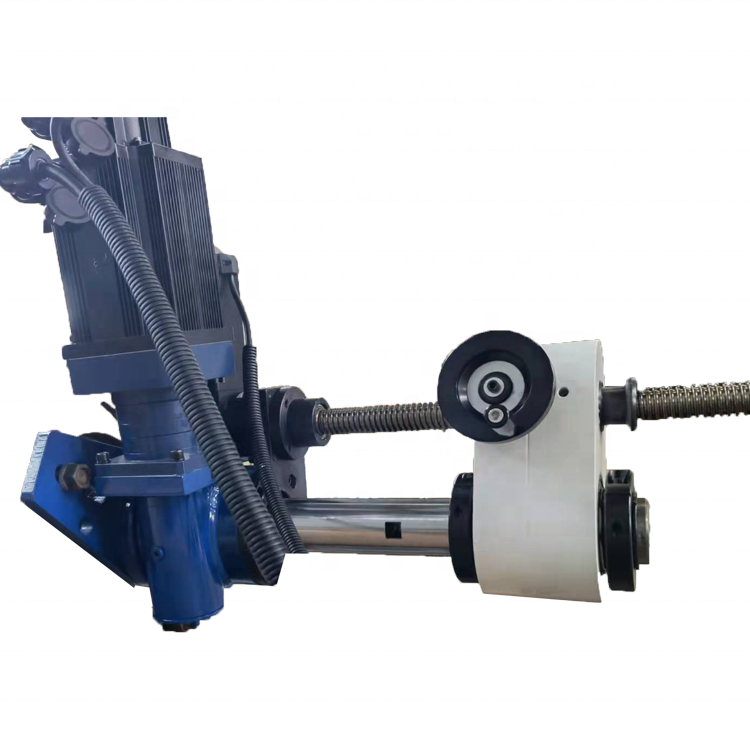

Our company's patented portable boring machine is specially designed for on-site construction. It is good at both drilling and welding. It has the characteristics of small size, light weight, and good boring and welding quality. It can be easily used for on-site drilling and welding of large steel structures, especially for processing in small spaces. It is widely used in the repair of large equipment, pin holes, bearing holes and other round holes of construction machinery.
◆ Machining and repairing of rotary holes, hinge holes, shaft pin holes, and installation and fixing holes on various mechanical structural parts
◆ Repair and processing of concentric holes in heavy machinery such as excavators, cranes, and hoists
◆ The holes are arranged side by side, and the holes are positioned and processed at one time to ensure the coaxiality of the holes
◆ Widely used for post-weld processing of shaft pin holes of construction machinery such as excavators, loaders, presses, cranes, etc., or to install hole sleeves after reaming
|
Name
|
LTT-90E Vertical Electric Boring And Welding Machine
|
|
Model
|
LTT-90E
|
|
Max Bore Diameter Mm
|
800
|
|
Min Bore Diameter Mm
|
95
|
|
Feed Stroke Mm (Standard)
|
500 (Support Customized)
|
|
Boring Bar Mm(Standard)
|
90*2000 (Support Customized)
|
|
Boring Bar Speed Rpm
|
0-60
|
|
Motor Power Kw
|
3.8
|
|
Power Type
|
Servo Motor
|
|
Feed Rate Mm
|
0-3Mm (Stepless Speed Regulation)
|
|
End Face Device Feed
|
0.1Mm
|
|
Depth Of Cut On One Side Mm
|
1-6Mm
|
|
Roughness
|
Ra3.2
|
|
Roundness Mm
|
≤0.02Mm
|
|
Operation Method
|
Automatic / Manual
|
|
Host Weight Kg
|
65
|
|
Package
|
Fumigation Disinfection Plywood Packing Box
|
