Quick Details
-
Weight (KG):
-
680
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zon Pack
-
Dimension(L*W*H):
-
1550(L)*1150(W)*1750(H)
-
Product name:
-
Multi-function Packaging Machine
-
Material:
-
304SS
-
Max Film Width:
-
420mm
-
Packing speed:
-
15-70bags/min
-
Technical Feature:
-
Easy to Operate
-
Feature:
-
High Digital System
-
Power Parameter:
-
220V 50/60Hz 3KW
-
Application For:
-
Potato Chips/Snacks/Puffed Food/Biscuits/Popcorn
-
Type of Bag Making:
-
Pillow bag, gusset bag, punching bag , connecting bag
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Function:
-
FILLING, Sealing, Packaging
-
Packaging Type:
-
Bags, Film, Pouch, Multi-function packaging machine
-
Packaging Material:
-
Plastic, Paper, Metal
-
Weight (KG):
-
680
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zon Pack
-
Dimension(L*W*H):
-
1550(L)*1150(W)*1750(H)
-
Product name:
-
Multi-function Packaging Machine
-
Material:
-
304SS
-
Max Film Width:
-
420mm
-
Packing speed:
-
15-70bags/min
-
Technical Feature:
-
Easy to Operate
-
Feature:
-
High Digital System
-
Power Parameter:
-
220V 50/60Hz 3KW
-
Application For:
-
Potato Chips/Snacks/Puffed Food/Biscuits/Popcorn
-
Type of Bag Making:
-
Pillow bag, gusset bag, punching bag , connecting bag
-
After-sales Service Provided:
-
Field installation, commissioning and training
Products Description
|
TECHNICAL SPECIFICATION
|
|
|
|
Model
|
ZH-V420
|
|
|
Packing Speed
|
50-70Bags/Min
|
|
|
Bag Size
|
W:60-200mm L:60-300mm
|
|
|
Pouch Material
|
POPP/CPP,POPP/VMCPP,BOPP/PE,NY/PE,PET/PET
|
|
|
Type of Bag Making
|
Pillow bag,Gusset bag,Punching bag,Connecting bag
|
|
|
Max Film Width
|
420mm
|
|
|
Film thickness Width
|
0.04-0.09mm
|
|
|
Air Consumption
|
0.5m3/min,0.8Mpa
|
|
|
Power Parameter
|
220V/2000W/ 50/60HZ
|
|
|
Package Size (mm)
|
1550(L)×1150(W)×1750(H)
|
|
|
Total Weight(Kg)
|
450
|
|
Materials Application
It can automatically complete feeding, quantitative weighing, bag filling, date printing, sealing packaging, and finished product output. It is mostly used in food production and packaging industry.Application materials:
Potato chips, Banana chips, Sweet Sugar ,Gummy Candy,Plantain Chips,Crisp Popcorn
,
Corn Flakes Etc.

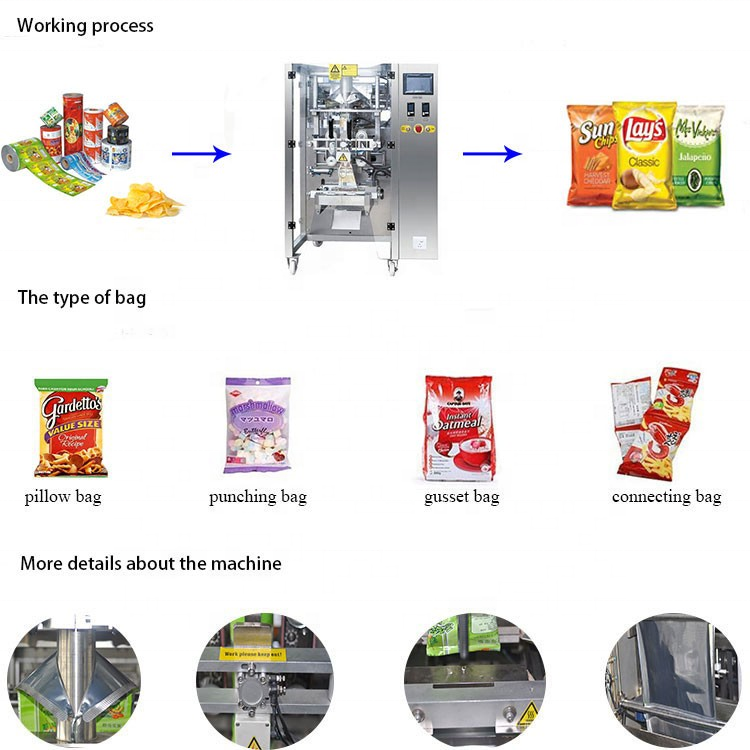

Details Images
Main Features
1.Adopting PLC and touch screen, easy to operate. 2.Dual-belt pulling with servo makes film transporting smoothly. 3.Perfect alarm system to make problem solved quickly. 4.Co-working with weighing and filling machine, Process of weighing , bagging, filling, date printing, charging(exhausting), counting and delivering finished product can be completed automatically.
1.Adopting PLC and touch screen, easy to operate. 2.Dual-belt pulling with servo makes film transporting smoothly. 3.Perfect alarm system to make problem solved quickly. 4.Co-working with weighing and filling machine, Process of weighing , bagging, filling, date printing, charging(exhausting), counting and delivering finished product can be completed automatically.
