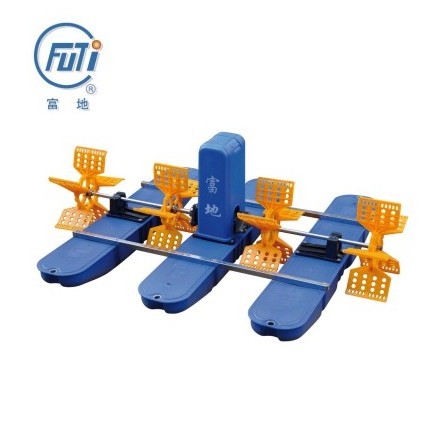

2HP 1.5KW Prawn Farming 4 Wheels Paddle Wheel Aerator /Waste Water Aerator

2HP 1.5KW Prawn Farming 4 Wheels Paddle Wheel Aerator /Waste Water Aerator

FOB Reference Price: Get Latest Price

≥1 Sets

US $229.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 78 KG

Application filed:: Aquaculture Farming Seafood Fish Pond

Name:: Paddlewheel Aerator

Model:: MSC-1.5 Air cooling

Power:: 1.5kw

Voltage:: 380V

Frequency:: 50 Hz

Impeller material:: Nylon 100% new material

Float material:: HDPE 100% new material

Warranty period:: 1year

Phase:: 3 Phase

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Futi

Model Number:: MSC-1.5(air cooling)

Weight:: 78 KG

Application filed:: Aquaculture Farming Seafood Fish Pond

Name:: Paddlewheel Aerator

Model:: MSC-1.5 Air cooling

Power:: 1.5kw

Voltage:: 380V

Frequency:: 50 Hz

Impeller material:: Nylon 100% new material

Float material:: HDPE 100% new material

Warranty period:: 1year

Phase:: 3 Phase

Product Description

DESCRIPTION
Model	spare parts	unit	special	material
MSC-1.5(air cooling)	Cast Iron Motor	1	Inductrial motor, motor to be made according to the customer's requiry for the voltage	cast iron, aluminum motor fan, 100% new copper
		Cast iron Reducer	1	arcuate bevel gear, mechanical seal, 50Hz/60Hz	cast iron reducer , arcuate bevel gear, made of chromium manganese titanium with carbonitriding on the surface
		Motor Cover	1	weight: 2.1kgs	HDPE made of 100% new HDPE material, resist impact, acid-alkalinity & sun exposure
		501 impeller	4		Nylon, 4 Pieces Impeller & 5 Trident Replaceable paddle + confirmation of toughness against corrosion & UV resistance.100% new raw materials
		Floats	3	1600285178mm	HDPE float made of 100% new HDPE material, resist impact, acid-alkalinity & sun exposure No influence of water
		movable joint	2	hole: 25.5mm	cast iron or stainless steel(depends on customer's requiry)
		shaft	2	length:750mm	stainless steel 304(SUS 304) solid shaft
		bearing base set	2	adjustable bearing base	25mm diameter 100% new raw materials
		frame	2	150033mm	stainless steel 304(SUS 304)
		bolt and nut bag	1		stainless steel 304(SUS 304)
		quantity in one container		20FT: 85sets	40FT 170 sets 40HQ: 215 sets
		pedestal	2		Nylon
CHARACTERISTICS
1.Arcuate bevel gears are used instead of worm gears, thereby economizing on energy with high efficiency,and saving over 20% electric energy over traditional models.
2.Arcuate bevel gear is made of chromium-manganese-titanium with cartonitriding on the surface, Long life span and high rigidity are available
3. mechanical seal is adopted which life span is 2 or 3 times longer than oil seal
4. protector inside motor is available to avoid motor being burnt accidentally
5. HDPE flat, Nylon impeller, stainless steel solid shaft, and frame are available
6. the housing of motor and reducer is electrophoresis, the anti-corrosion performance is much better

MainPart:Motor

Brand:FUTI

Original:China

Power: 1.5Kw(2HP)

Phase:3phs 1phs

RPM1440/50HZ 1700/60HZ

Our high-efficiency motor is made of 100% new copper wire, adopting the automated coil reeler, rotor positioning instrument and following uncompromised precessing and inspection procedures. good quality, longevity, lower amp, low power comsumption

Main part:Cast iron

Brand:FUTI

Original:China

Ratio 1:14 1:16.8

oilLiter0.8L

cast iron reducer , arcuate bevel gear, made of chromium manganese titanium with carbonitriding on the surface, oxygen transfer capacity is 36.3% higher, power efficiency is 36.8% and save at least 20% electric energy than traditional models, mechanical seal on it

Impeller

material:PPSize:660*210mm
Original:China

4 Pieces Impeller & 5 Trident Replaceable paddle + confirmation of toughness against corrosion & UV resistance.100% new raw
materials

Bearing Base Set

adjustable 3 in 1 plastic bearing, easy for replace ment no aging or cracking problem

Motor Cover

Float

1. made from HDPE material with excellent ductility 2.intergral blow molded formation, No influence of water 3.excellent in
withstanding larger impact, corrosion free and weathering 4.100% new HDPE material, resist impact, acid-alkalinity & sun exposure
