Quick Details
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
2200K-6000K
-
Product Weight（kg）:
-
0.3
-
Input Voltage(V):
-
DC5V
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-30 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
Like light
-
Model Number:
-
L-C10-WS2812B
Quick Details
-
Lamp Luminous Flux(lm):
-
18-22lm
-
Lamp Body Material:
-
Copper
-
Application:
-
Facade lighting
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
2200K-6000K
-
Product Weight（kg）:
-
0.3
-
Input Voltage(V):
-
DC5V
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-30 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
Like light
-
Model Number:
-
L-C10-WS2812B
Products Description
|
Product name
|
WS2812B RGB pixel starry led light strings
|
|
Model
|
L-C10-WS2812B
|
|
LEDs
|
SMD 5050
|
|
LED chip/ channel
|
RGB 3 channels
|
|
IC options
|
SPI WS2812B / GS8208
|
|
IP grade
|
IP67 waterproof outdoor use
|
|
Qty/string
|
Custom QTY/ length available
|
|
Cable spacing
|
2cm, 5cm, 10cm optional
|
|
Cable color
|
Transparent / black(black with 50thousand Meters MOQ)
|
|
Glue color
|
Transparent / white optional
|
1.Control : Seperate control, 1 PCS SMD5050 LED and 1 inserted-in IC ( WS2812b)
2. Waterproof : IP65 with JST non-waterptoof connector (indoor use), IP68 with PVC connector (outdoor use).
3. Normal length per string is 10m/ 50LEDs per string with 10cm distance ,customized is available.
5. Connectors :3PIN JST female/male connector, also can be waterproof connector, DAT, DC5+, GND-, each led pixel is separate, you can easily connect them one by one through the male female connector.
7. Different installation methods can constitute different dynamic effects of different color characteristics and designs.
2. Waterproof : IP65 with JST non-waterptoof connector (indoor use), IP68 with PVC connector (outdoor use).
3. Normal length per string is 10m/ 50LEDs per string with 10cm distance ,customized is available.
4. Power supply: Low power and consume, DC5V 0.3W. Do not higher than DC5V or will burn the led.
5. Connectors :3PIN JST female/male connector, also can be waterproof connector, DAT, DC5+, GND-, each led pixel is separate, you can easily connect them one by one through the male female connector.
6. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful
7. Different installation methods can constitute different dynamic effects of different color characteristics and designs.

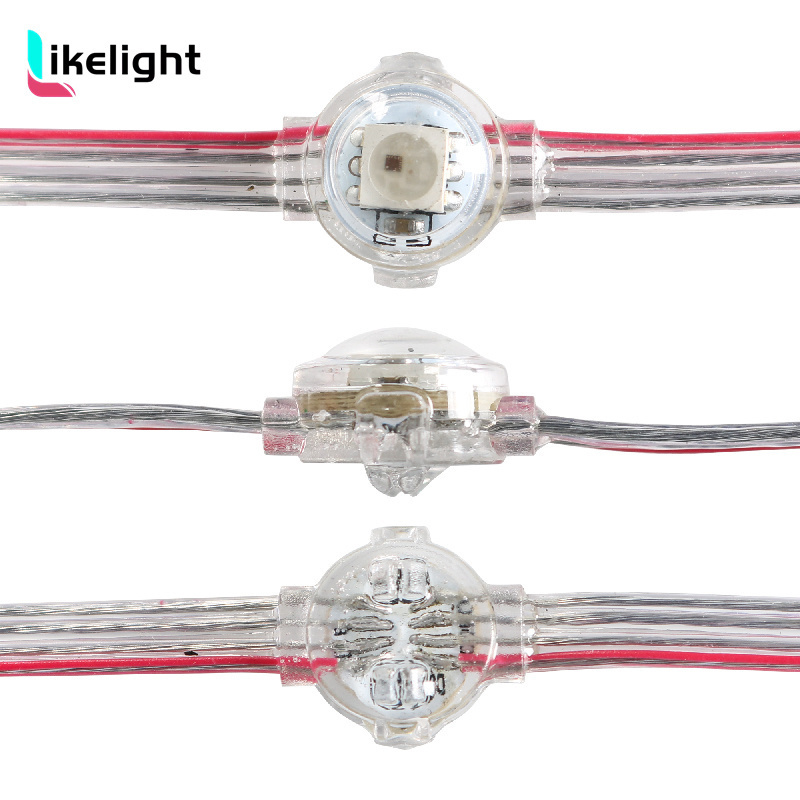

Product real picture
Control Components
Applications
Facade lighting, house decoration, pixel screen etc.
