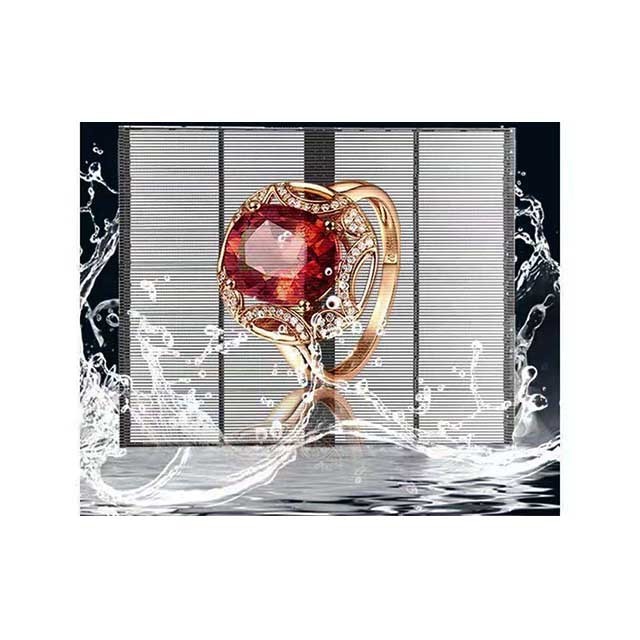

Full Color Window Transparent Glass Flexible Led Video Wall Panel Display Sticker Screen Indoor Transparent Led Film For Glass

Full Color Window Transparent Glass Flexible Led Video Wall Panel Display Sticker Screen Indoor Transparent Led Film For Glass

Company  Profile.

Shenzhen shervin technology Co.,ltd is a high tech company enaged in  development,

production.sales and services of  led display screens. located  at Stone Mountain Industrial Park, Shiyan Town, Baoan District, Shenzhen City

taking an area of 3000sqms.production ability 50000sqm/year.sales amount more than 30 million dollars

We mainly do indoor and outdoor led display screens,led display modules and all sorts of metal, aluminum,

and carbon fiber led cabinets.we are one of the best small pixel screen and outdoor high brightness

s md led display screen manufacturers in mainland china .

Making the most cost-effective led display screens and maximum incomes is always our pursuit.

Our led display screens have a very long life,nice vivid colors

and energy saving as high as 40% compared with common screens in the market,

Scientifi  structure designes.stable quality, extraordinarily  low cost can meet

the needsof all kinds of customers around the world.

Most of our led displays are used in the fields of traffic systems,hotels,shopping malls,

outdoor medias ,rental businesses,schools, cenferences,

banks airportsand bus station etc for advertising or entertainments.

we sincerely invite customers from all over the world to visit us for co-operations.

The outdoor and indoor  full color Led display parameter as follows:

The outdoor full color led display parameter
NO.	Item	P3.91	P4	P5	P6	P8	P10
1	pixel pitch (Millimeter)	3.91	4	5	6	8	10
2	Led lamp	SMD2727	SMD3535	SMD3535	SMD3535	SMD3535	SMD3535
3	Pixel density	65410	62500	40000	27777	15625	10000
4	Module size	250X250	256X128	320X160	192X192	256X128	320X160
5	Module resolution	64X64	64X32	64X32	32X32	32X16	32X16
6	Scan mode	1/8	1/8	1/8	1/8	1/8	1/8
7	Cabinet size	500X1000	768X768	960X960	960X960	1024X1024	960X960
8	Cabinet resolution	128X256	192X192	192X192	160X160	128X128	96X96
9	Brightness	7000cd	7000cd	7000cd	7000cd	7000cd	7000cd

The indoor full color led display parameter
NO.	Item	P2	P2.5	P3	P4	P5	P6	P10
1	pixel pitch (Millimeter)	2	2.5	3	4	5	6	10
2	Led lamp	SMD2121	SMD2121	SMD2121	SMD2121	SMD2121	SMD3528	SMD3528
3	pixel density	250000	160000	111111	62500	40000	27777	10000
4	Module  size (Millimeter)	256X128	160X160	192X192	256X128	320X160	192X192	320X160
5	Module resolution	128X64	64X64	64X64	64X62	64X32	32X32	32X16
6	Scan mode	1/32	1/32	1/16	1/16	1/16	1/16	1/8
7	Cabinet size(Millimeter)	512X512	480X480	768X768	768X768	960X960	768X768	960X960
8	Cabinet resolution	128X128	192X192	256X256	192X192	192X192	128X128	96X96
89	Brightness	1500cd	1500cd	1500cd	1500cd	1500cd	1500cd	1500cd

High quality and brightness led lamp

Product Features

Handpick famous brand Raw Material

1. LED:Adopting famous brand’s led which makes our led display wide view angle,high brightness,low light failure,strong heat dissipation and bright color.

2. Driver IC:adopting MBI,SUM ,ICN and other brand,ensuring high-quality display effect.

3. Power supply:Reserving 20% flat space for power supply while working under the maximum power capacity,the range of voltage fluctuation is less than 5% ,high stability.

4. Connector:Specially using the aerial grade brands which ensure the stable transmission of both power and signal.

5. PCB board:Adopting FR-4A1 CCL., use 4-layer design.1.6mm thickness

6. Strong weather Resistance: All raw materials have the functions of high temperature resistance,high humidity resistance.water-proof,corrosion prevention,and rust protection.

Excellent display performance

1,High -contrast: Adopting independent design of front mask to avoid hydrops & dust stratification:optimizing sawtooth surface to enhance diffuse reflection and improve the contrast of LED display.

2,wide viewing angle:Horizontal viewing angle can be up to120 degree.It is still colorful from any angle within 120 degree,with no color patches.

3,High gray scale: Adopting 16 bit gray scale processing technology to restore the natural image.Using S-PWM driving technology to improve gray grade,meet the 16 bit high gray display requirements under low brightness.

2. point by point calibration: adopting the point by point calibration technology of brightness and chrominance to ensure the uniformity of led display brightness and color.

Stability and Reliability

1. High Protection: Adopting three proofing ,IP level reaches IP65-IP68 ,works well in severe environment.

2. Good heat dissipation:Detaching the power heat and driving heat to reduce the harmful effect to the LEDs from power heat.Mounting AC fan inclined with huge air output  to increase the cooling uniformity.

3. High reliability: adopting static scanning and modular design technology,to realize high stability and reliability.

4. Easy to install and Maintain: Quick positioning and installation,front ,back and single point maintenance are optional.

Features :

1.Application integration design. easy installation,easy debugging and maintainance.

2.UV -resistance,anti-distortion module kit,roughness ,ensure the best screen display.

3.Dual-channel heat sink design,decay,long life span.

4.Professional mask design.dustproof  and water-proof .protection class IP65.

5.Totally water-proof ,all tested well before shipping.

6.New structure design,fixed for lifting.lamination required.

And our die cast aluminum is good for rental usage, the feature as follows.

Adjustable angle:the angle is adjustable between two cabinets and can make outer and inner curve.

Fantastic thickness:thickness only 50mm,weight only 14.5/kg cabinet.

Convenient installation:fast locks ,no more than 10 second to finish the locking

Compatible cabinet:this cabinet size: 500 x1000mm is compatible ,can also match with P3.91,P4.81,P6.25 led modules.

Precision position guilding: use telescope alignmen dowels,just need to turn slightly the telescope dowels to dismount the

cabinet to do the maintenance work.

uniform assemblely: deviation of the surface flatness<0.2mm

Fast install:especially suit for large area rental projects,easy install and save time.

The advantage of our products:

1.environmental protection.

2.energy conservation

3.service time reached 100 thousand hours

4.color beautiful clear

5.safe and convenient installation.

6 domestic top R&D engineer

7.At least develop a new product every month

We also offer 3% of spare parts. Like modules, power supplies, cables, power cords, screws, etc. Make sure you can use it 100% safely.

Without any concern, choosing us as your supplier is to choose our long-term friendship. If you encounter any problems,

we will do our best to help you solve them.

all kinds of the led display module, led display will be through strictly test before shipment ,

You can be 100% assured of the quality of our products. We can give you 3 years warranty.

We can give 3 years warranty, free consultation for life.If  you are our old customers, we can also give you more

discounts and recommend the latest styles in time. Allows you to profit from our cooperation for a long time!

The led display can be package well with wooden box, flight case .paper box.That's according to your requirements.

We have made many different project case for our customers as follows:

Corporate culture.

Quality: quality is the foundation of a enterprise’s foothold.It’s our responsiblity to produce high-quality products ,Customer satisfaction is our goal.

Responsibility: We ask everyone to be responsible,Especially responsible to customers

Reciprocity is to share benefits with customers and achieve a win-win situation.

Service: Providing 360-degree service and becoming a personal butler of the customer,customers only need to do 3 things.order,pay and receive.

Effectiveness: in addition to asking people to do their best ,making the full use of things,but also improve the efficiency of doing things

We pay attention to the details of each product production, with the most advanced production placement machine.

Can meet the requirements of customers for mass production

First-class equipment. First class service. First- class creation. First class quality.

With science and technology innovationas the guide and perfect service as the backing light color integrates

R&D production, wholesale and retail to meet the full range of requirements of customers.

Welcome to contact us for more business information.Any feedbacks will be highly appreciated.

Service as follows:

1,Pre-sale service :installation address investigation,providing project effect design and customizing the best display solution.

Provide  all the service and question answering of our led display products

2. Sale service :Strictly inspected by our QC engineer before shipping, to make sure product quality is on the best situation.

Providing professional on-site installation technical instruction,site debugging,product  training and maintenance service according to the contract.

Providing full sets of hardware and software training for your engineer to master the operation and maintenance.

3. After sales service

A: warranty  provide all free repalcement or maintenance (free for labor &material &management and finance etc)

if there is product problem withiin warranty period(with the exception of man made destruction or force majeure such as natural disasters)

B:Real-time communication service.You can obtain technical support service by telephone,

e-mail and other instant communication  tools or remote assistance  if there is any problem during usage.

C:the hardware and software upgrade service  .we will provide free life-long software application system maintenance and upgrade(including labor):

you can contact our technical engineer or sales engineers if you have the hardware upgrade requirement,w

e will provide you the most favorable hardware upgrade service.

D./The annual inspection service.We will provide you comprehensive maintenance if the led display two timess per year

and we can provide the operation and maintenance training to your engineers according to your requirements.

E:live support for big event .You can contact us in advance if you have big event and need live support,

Engineer could be assigned to offer on-site support upon your requirements.

4, other service:

A: after warranty period,we will still provide life-long maintenance,and only charge for material cost and labor cost.

B:We can provide effective service according to mutual agreement if there is problem with your led display which is not bought from us.
