Customized Mining quarry polyurethane high frequency dewatering vibrating screen dehydrating screen rubber screen mesh

Customized Mining quarry polyurethane high frequency dewatering vibrating screen dehydrating screen rubber screen mesh

FOB Reference Price: Get Latest Price

≥50 Pieces

US $50

≥99 Pieces

US $48

≥100 Pieces

US $45

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: customized

Dimension(L*W*H):: Optional

Weight:: 10 KG

Quick Details

Type:: LINEAR

Place of Origin:: Henan, China

Brand Name:: XINGGE

Voltage:: customized

Dimension(L*W*H):: Optional

Weight:: 10 KG

Product Overview

Polyurethane Strip Sieve also named PU Dewatering Modular Screen/PU Dewatering Screen Deck. Polyurethane Strip Sieve has following
characteristics:
1.Wear resistance, water resistance, corrosion resistance, long service life.
2.Fine mesh, not easy to block hole, high screening efficiency.
3.Light weight and convenient installation.
4.Installation method: screw type, bolt type, rail seat type, pressure bar type. Polyurethane Strip Sieve has following
applications:
Polyurethane Strip Sieve is widely applied to tailings dry line, concentrate dewatering, sandstone, mine dewatering sieve plate,
coal slime dewatering sieve plate, tailings dewatering sieve plate, sand dehydrated sieve plate, sand washer sieve plate,
dehydration sieve plate and so on.

FEATURES AT A GLANCE

Wear resistance

Water resistance

Corrosion resistance

Long service life

Fine mesh

Not easy to block hole

High screening efficiency

Light weight

Convenient installation

Compared with metal screen and rubber screen, the advantages of polyurethane screen:

1. Polyurethane screen has high wear resistance, and Polyurethane screen is resistant to oil, water and corrosion. It can be

applied to all kinds of mining conditions.

2. The friction coefficient of polyurethane screen and material is low, the screen is designed for conical hole, no adhesion, no blocking material, high screening efficiency.

3. Polyurethane screen has high elasticity, can produce secondary vibration, improve screening efficiency.

4. Polyurethane screen has good vibration absorption and low noise. Can reduce the noise interference of the working environment to the workers.

5. Polyurethane screen light weight, can reduce the screen machine screen machine load, prolong the life of the screen machine.

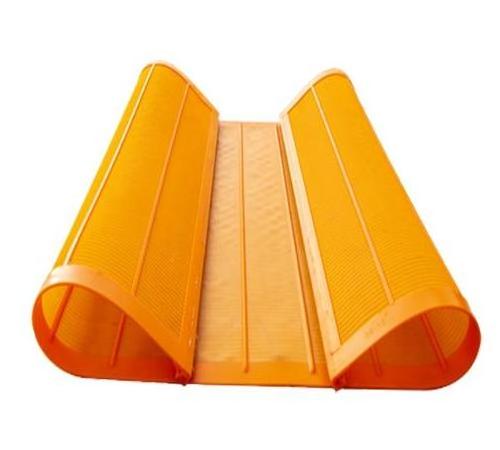

Tensioned polyurethane screen

Size: customized

Thickness:5-200mm

Mesh size:2-350mm

Hardness:40-90A

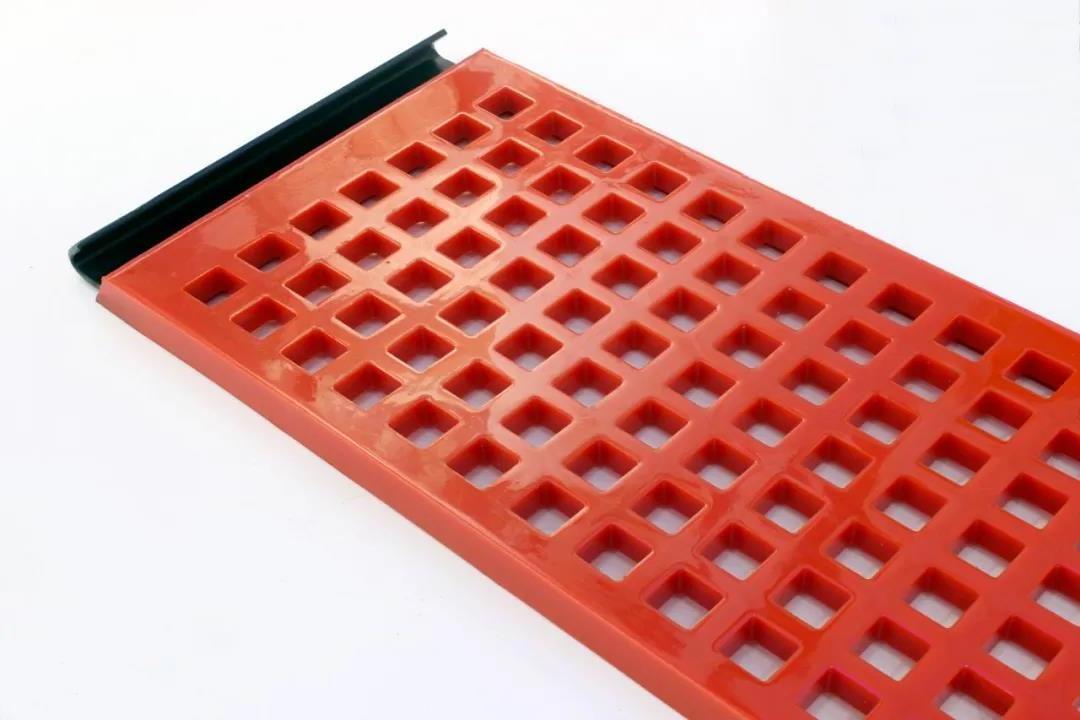

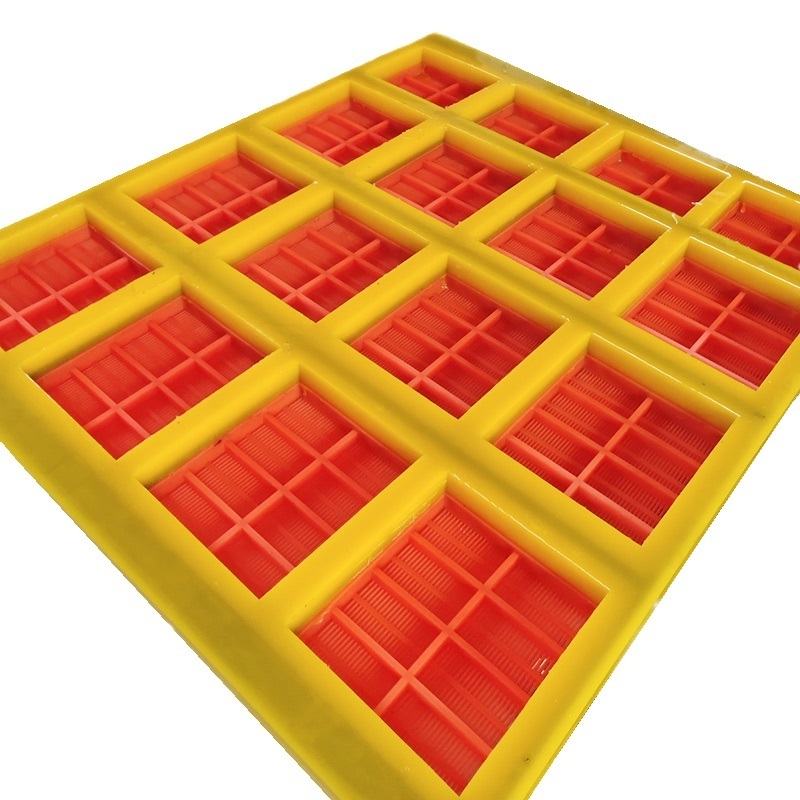

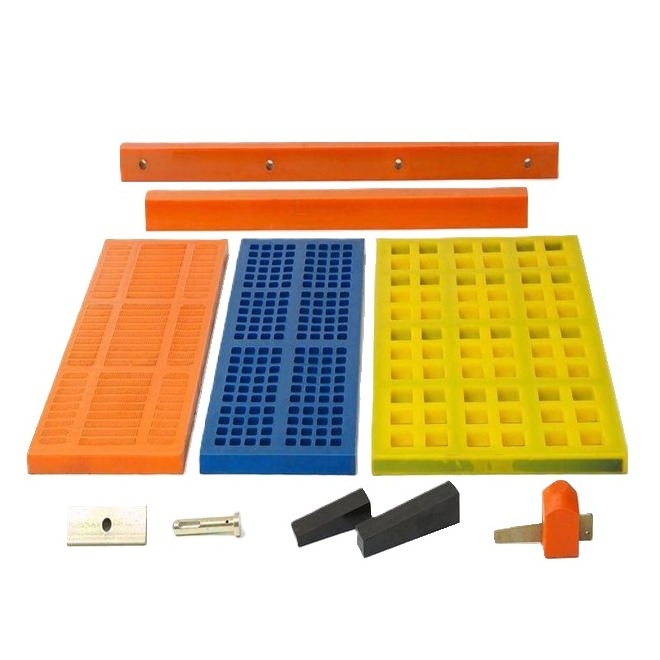

Modular polyurethane sieve plate

Size: customized
Thickness:5-200mm
Mesh size:2-350mm
Hardness:40-90A

Dewatering polyurethane sieve plate

Size: 305*610&310*610mm

or customized
Thickness:20-70mm
Mesh size:0.075-5mm
Hardness:45-90A

Hot melt polyurethane bar screen

Size: customized

Wire diameter:1-20mm
Mesh size:2-50mm
Hardness:60-85A

Polyurethane high frequency fine screen

Size:1045*700mm/ 1220*700mm

1240*840mm or customized

Mesh size:0.045-8mm
Hardness:70-85A

Stretch Polyurethane screen

Size: customized
Thickness:1-20mm
Mesh size:1-50mm
Hardness:50-80A

PRODUCT SPECIFICATIONS

Thickness	15-100/200mm,20-10/120mm,5-100/120mm
Hardness	85-95A
Color	customizable
Screen mesh	2-500mesh
Mesh size	1-10mm
Keyword	Polyurethane sieve plate
Usage	screening, filtration, dewatering, and desliming
