Quick Details
-
Model Number:
-
YJ-SP9100
-
Car Make:
-
normal car
-
Item:
-
8 Gang Auxiliary Switch Panel
-
Color:
-
Green, blue, amber
-
rating watt:
-
600w
-
Material:
-
ABS
-
MOQ:
-
1pcs
-
Quality:
-
100%tested
-
circuit box size:
-
190*34*105 mm
-
Panel Size:
-
115*15*66 mm
-
Relay:
-
no relay
-
sticker:
-
40 different symbol
Quick Details
-
Warranty:
-
2 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUJIE
-
Model Number:
-
YJ-SP9100
-
Car Make:
-
normal car
-
Item:
-
8 Gang Auxiliary Switch Panel
-
Color:
-
Green, blue, amber
-
rating watt:
-
600w
-
Material:
-
ABS
-
MOQ:
-
1pcs
-
Quality:
-
100%tested
-
circuit box size:
-
190*34*105 mm
-
Panel Size:
-
115*15*66 mm
-
Relay:
-
no relay
-
sticker:
-
40 different symbol

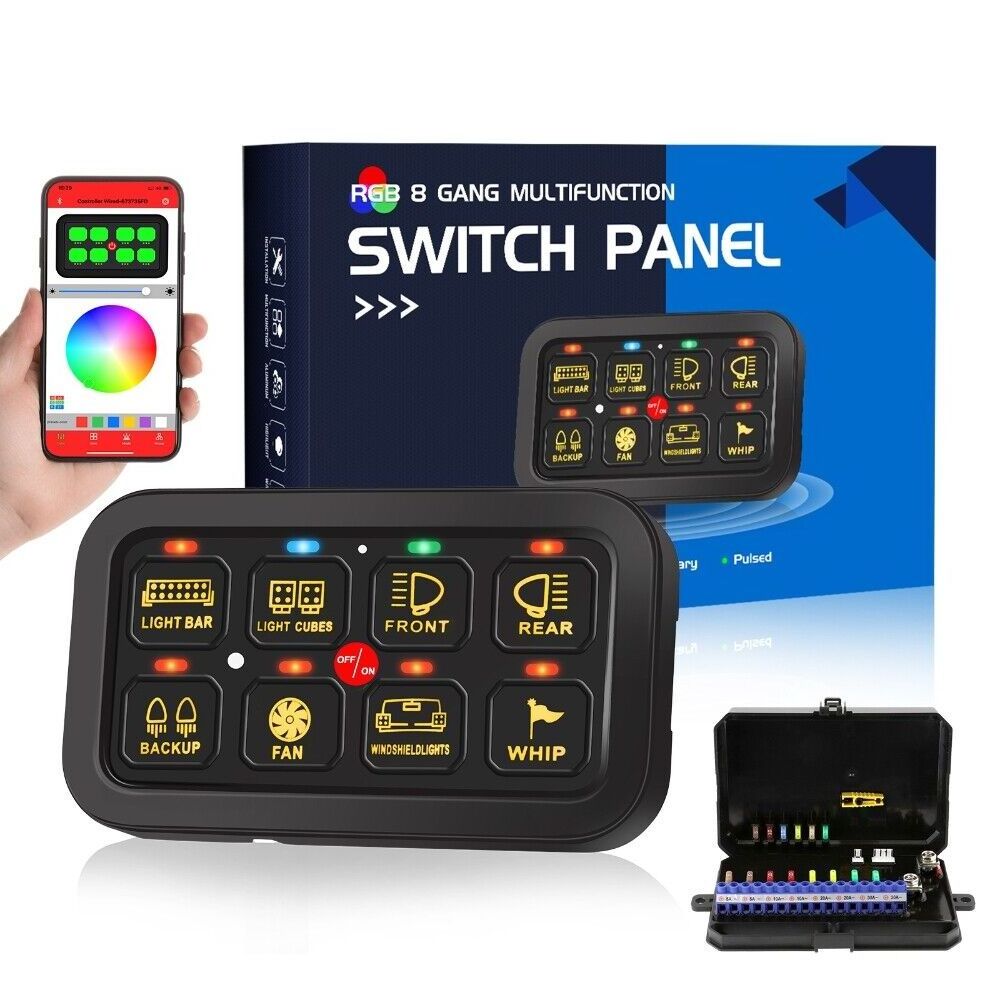

- 8 Gang on-off Control Flat Panel Switch: Adpot Capacitive sensing technology with blue indicator light display ,waterproof IP65, with high sensitivity,stablity and strong anti-interference ability.
- Wide application: 8 In 1 touch screen panel with 12-24VDC input voltage, fit for most cars, trucks, boats, yachts and Caravans.
- Safety protection: Built in resettable fuse, reverse polarity protection, over-voltage protection and over-current protection.
- Label Stickers: Rocker Switch Panel with replacement label stickers by your favor and needs.
| Quantity(Sets) | 1 - 100 | 101 - 500 | >500 |
| Est. Time(day) | 7-10 | 15 | To be negotiated |
I nstallation Guide:
Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A.
The maximum output current of groud 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A.
The recommended connection method is to decrease the current gradually from groud 1 to 8 groud.
Make sure all the lamps are connectly before connecting the power cable.
Guideline for connecting the red, yellow and white control cables:
1. The red cable connects the master switch power cable to the ACC.If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.
2. The yellow cable connects the width lamp to the master switch panel.
3. The white cable is the panel light brightness control cable. It can controls 3 brightness levels by each switching. You can disconnect the white cable in order to have the most brightness switch panel if require.
