TTNergy 210mm Solar Panel adopts 12BB technology. More busbars of the cell decrease the current transverse propagation path by
50%, effectively reduce the internal loss, and improve power of solar panels.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
30 years
-
Brand Name:
-
TTNergy
-
Model Number:
-
TTNMH132-700-M12
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
2384x1303x35mm
-
Name:
-
solar panel 700w 144 cell
-
Solar cell:
-
Mono Half Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP68
-
OEM:
-
Acceptable
-
Connector:
-
PV Connector
-
Delivery:
-
15 days
-
Certificate:
-
CE TUV IEC
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
All Black, Bifacial, Half Cell, PERC
-
Panel Efficiency:
-
22.1%
-
Warranty:
-
30 years
-
Brand Name:
-
TTNergy
-
Model Number:
-
TTNMH132-700-M12
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
2384x1303x35mm
-
Name:
-
solar panel 700w 144 cell
-
Solar cell:
-
Mono Half Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP68
-
OEM:
-
Acceptable
-
Connector:
-
PV Connector
-
Delivery:
-
15 days
-
Certificate:
-
CE TUV IEC

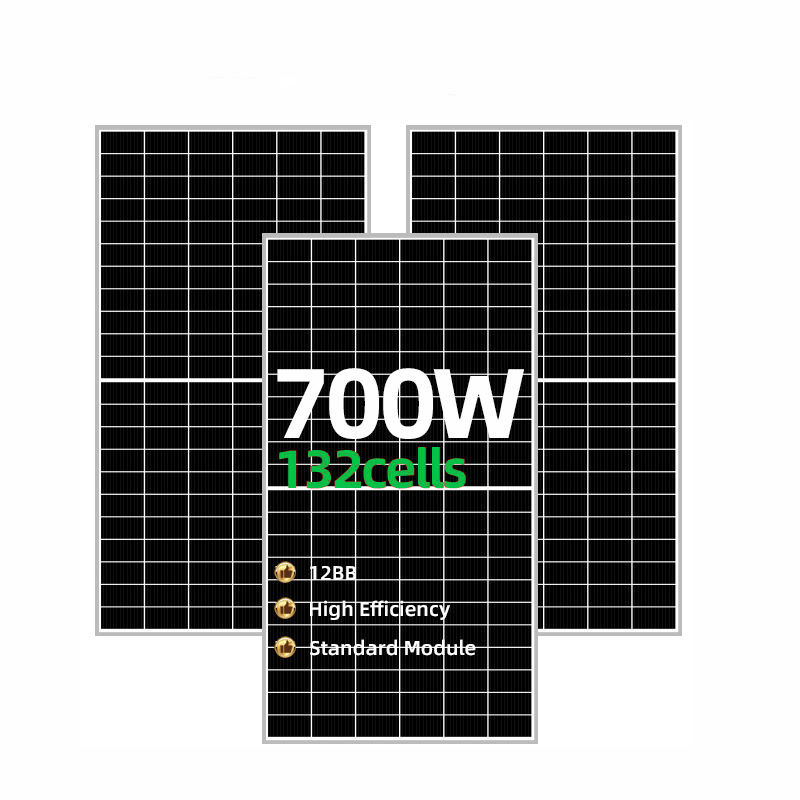

TTNergy Mono crystalline 210mm 12BB Solar panel
210mm PERC Solar Cell 670W Solar Panel's efficiency up to21.6%
|
Model
|
Maximum Power
|
Efficiency
|
External Dimensions
|
Weigh
|
Solar Cells
|
Tandem structure
|
|
TTNMH132-670-M12
|
670W
|
21.60%
|
2384×1303×35mm
|
33kg
|
Mono crystalline 210mm (2x66pcs)
|
12BB
|
|
TTNMH132-665-M12
|
665W
|
21.40%
|
|
|
|
|
|
TTNMH132-660-M12
|
660W
|
21.20%
|
|
|
|
|
|
TTNMH132-655-M12
|
655W
|
21.10%
|
|
|
|
|
|
TTNMH132-650-M12
|
650W
|
20.90%
|
|
|
|
|
|
TTNMH120-620-M12
|
620W
|
21.89%
|
2172×1303×35mm
|
30.5kg
|
Mono crystalline 210mm (2x60pcs)
|
|
|
TTNMH120-615-M12
|
615W
|
21.73%
|
|
|
|
|
|
TTNMH120-610-M12
|
610W
|
21.56%
|
|
|
|
|
|
TTNMH120-605-M12
|
605W
|
21.38%
|
|
|
|
|
|
TTNMH120-600-M12
|
600W
|
21.21%
|
|
|
|
|
|
TTNMH150-505-M12
|
505W
|
21.10%
|
2185×1098×35mm
|
30.5kg
|
Mono crystalline 210X70mm (5X30pcs)
|
|
|
TTNMH150-500-M12
|
500W
|
20.90%
|
|
|
|
|
|
TTNMH150-495-M12
|
495W
|
20.70%
|
|
|
|
|
|
TTNMH150-490-M12
|
490W
|
20.50%
|
|
|
|
|
|
TTNMH150-485-M12
|
485W
|
20.30%
|
|
|
|
|
Only some models, please contact customer service if other models are needed.
High Reliability
With stronger resistance against hotspots and excessive temperature, TTNergy solar panel maintain high reliability. TTNergy optimized the frame design of the 210mm large module, which allows for better load performance and suits for various scenarios.
Higher Solar Panel String Power Output
Based on the aim of improving the system efficiency and reducingthe balance of system costs, TTNergy Solar's research and
development team has introduced an innovative design of lowvoltage and higher module string power output.
development team has introduced an innovative design of lowvoltage and higher module string power output.
