Quick Details
-
Model Number:
-
TT-POE1082
-
Place of Origin:
-
China
-
Product name:
-
8+2 Port PoE Switch (100Mbps)
-
standard:
-
IEEE802.3 af/at
-
Bandwidth:
-
2.0Gbps
-
Total Power:
-
96W
-
Power Adapter:
-
48V 2A
-
P2P:
-
Plug and play
-
Transmission Method:
-
Store-and-Forward
-
Data & Power Transmission Distance:
-
100m
-
Extend mode:
-
POE data&power transmission 250m
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Switch Capacity:
-
96W
-
Brand Name:
-
TT or OEM
-
Model Number:
-
TT-POE1082
-
Place of Origin:
-
China
-
Product name:
-
8+2 Port PoE Switch (100Mbps)
-
standard:
-
IEEE802.3 af/at
-
Bandwidth:
-
2.0Gbps
-
Total Power:
-
96W
-
Power Adapter:
-
48V 2A
-
P2P:
-
Plug and play
-
Transmission Method:
-
Store-and-Forward
-
Data & Power Transmission Distance:
-
100m
-
Extend mode:
-
POE data&power transmission 250m

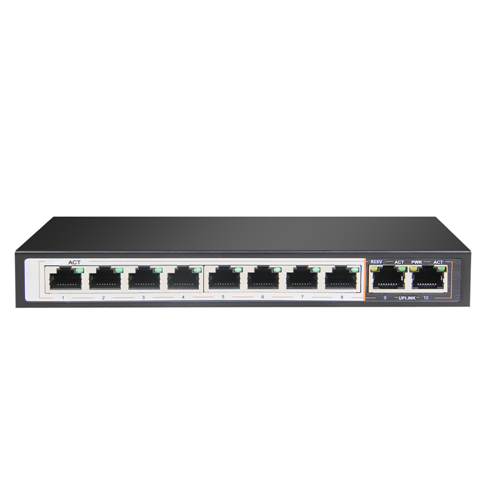

Todaair 8 ports ethernet poe switch 48v for outdoor cpe device
Features
• 8+2 Port PoE Switch, 100Mbps
• Auto-Negotiation RJ45 ports with 8 PoE port
• Complies with IEEE802.3af standard
• Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)
• Bandwidth 1.8Gbps
• Supports PoE power up to 15.4W for single PoE port
• Supports automatically detect function to protect the system when the system power is overloaded or there is non-POE device
• LED indicators for monitoring power, link, activity and speed
• 96W external power adapter
Technical Specification
|
Model |
TT-POE1082 |
|
Standard
|
IEEE802.3, 802.3u, 802.3af, 802.3x, |
|
CSMA/CD, TCP/IP |
|
Basic Function |
Wire-speed Performance |
|
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode |
|
|
Bandwidth |
2.0Gbps |
|
Power support |
Max power: 15.4W for single POE port |
|
96W Power adapter |
|
|
Transmission Method |
Store-and-Forward |
|
Ports |
8+2 Port PoE Switch, 10/100/Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
|
Network Media |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
EIA/TIA-568 100Ù STP (maximum 100m) |
|
|
100Base-Tx: UTP category 5, 5e cable (maximum 100m) |
|
|
EIA/TIA-568 100Ù STP (maximum 100m) |
|
|
1000Base-T: UTP category 5, 5e cable (maximum 100m) |
|
|
LED Indicators |
Power, Link/Act ( 10/100Mbps) |
|
Safety & Emission |
FCC, CE, ROHS |
|
Environment |
Operating Temperature: 0°C~50°C |
|
Storage Temperature: -10°C~70°C |
|
|
Operating Humidity: 10%~90% non-condensing |
|
|
Storage Humidity: 5%~90% non-condensing |
|
|
Product Size: |
185*95*28mm |
|
Weight |
1.1kg |
