Quick Details
-
Voltage:
-
380/440/660V
-
Power:
-
190-1000KW
-
Dimension(L*W*H):
-
Depending on Model
-
Weight:
-
500000 kg, 100-900tons
-
Diameter:
-
2m - 5.2m
-
Quality:
-
High Level
-
Name:
-
Rotary Kiln
-
Color:
-
As required
-
Installation:
-
Under Technical Guidance
-
Advantages:
-
High Efficiency
-
Kiln Type:
-
Horizontal Kiln
-
Factory Visit:
-
Welcome
-
Spare parts supply:
-
Available
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhengzhou Sinoma
-
Voltage:
-
380/440/660V
-
Power:
-
190-1000KW
-
Dimension(L*W*H):
-
Depending on Model
-
Weight:
-
500000 kg, 100-900tons
-
Diameter:
-
2m - 5.2m
-
Quality:
-
High Level
-
Name:
-
Rotary Kiln
-
Color:
-
As required
-
Installation:
-
Under Technical Guidance
-
Advantages:
-
High Efficiency
-
Kiln Type:
-
Horizontal Kiln
-
Factory Visit:
-
Welcome
-
Spare parts supply:
-
Available
Product Description

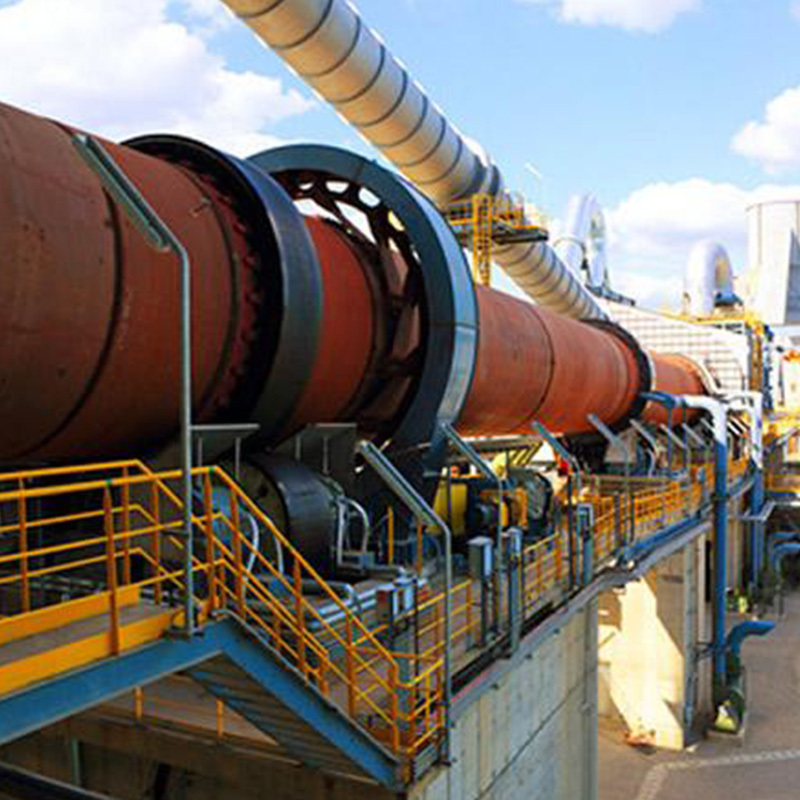

Rotary kiln
is a type of large mining equipment .According to different processing materials, it can be divided into: cement rotary kiln, metallurgical chemical rotary kiln and lime rotary kiln according to. Cement rotary kiln is the main equipment for cement clinker's dry/wet production line.
The applicable materials include limestone, calcium carbonate, copper ore and other materials.It’s widely used in chemical industry, metallurgy, etc.
Details Images
Features:
1. The rotary kiln can process materials such as kaolin, lime, cement, zinc oxide, bauxite and ores, it is an important calcining equipment.
2. Large capacity, 300-8000 TPD, all available, suitable for different enterprises;
3. High calcining efficiency and good quality.
4. The rotary kiln adopts an electrified control operation system, convenient to operate.
5. Good environmental protection measures.
Product Paramenters
|
Model
|
Diameter
(m)
|
Length
(m)
|
Capacity
(t/d)
|
Kiln Speed
(r/min)
|
Motor Power
(kw)
|
Total Weight
(t)
|
|
Ф3.2x50
|
3.2
|
50
|
1000
|
0.398-3.975
|
190
|
235
|
|
Ф3.3x52
|
3.3
|
52
|
1200
|
0.391-3.91
|
190
|
281
|
|
Ф3.5x54
|
3.5
|
54
|
1650
|
0.43-4.3
|
220
|
334
|
|
Ф4.0x60
|
4
|
60
|
2500
|
0.396-3.96
|
315
|
487
|
|
Ф4.2x60
|
4.2
|
60
|
2800
|
0.4165-4.165
|
420
|
576
|
|
Ф4.3x64
|
4.3
|
64
|
3200
|
0.449-4.49
|
450
|
585
|
|
Ф4.5x66
|
4.5
|
66
|
4000
|
0.41-4.1
|
560
|
710
|
|
Ф4.7x72
|
4.7
|
72
|
5000
|
0.45-4.5
|
710
|
825
|
|
Ф4.8x72
|
4.8
|
72
|
5000
|
0.403-4.03
|
630
|
847
|
|
Ф4.8x74
|
4.8
|
74
|
5000
|
0.35-4.0
|
630
|
841
|
|
Ф5.0x60
|
5
|
60
|
5500
|
0.4-4
|
710
|
787
|
|
Ф5.2x61
|
5.2
|
61
|
6000
|
0.38-3.79
|
800
|
859
|
* Note:
The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.
Application Areas&Materials
Application:
1. Cement industry: Calcining cement clinker, the main equipment of cement manufacturing.
2. Metallurgical industry: roasting metal ores such as iron ore and sulfide ore to obtain the required metal elements.
3. Chemical industry: calcine active lime, high alumina stone, aluminum sulfate and other chemical raw materials.
4. Ceramic industry:
remove moisture and organic matter from ceramic raw materials to dry and sinter the raw materials.
5. Environmental protection: Dispose of solid waste such as hazardous waste, medical waste, and sludge.
